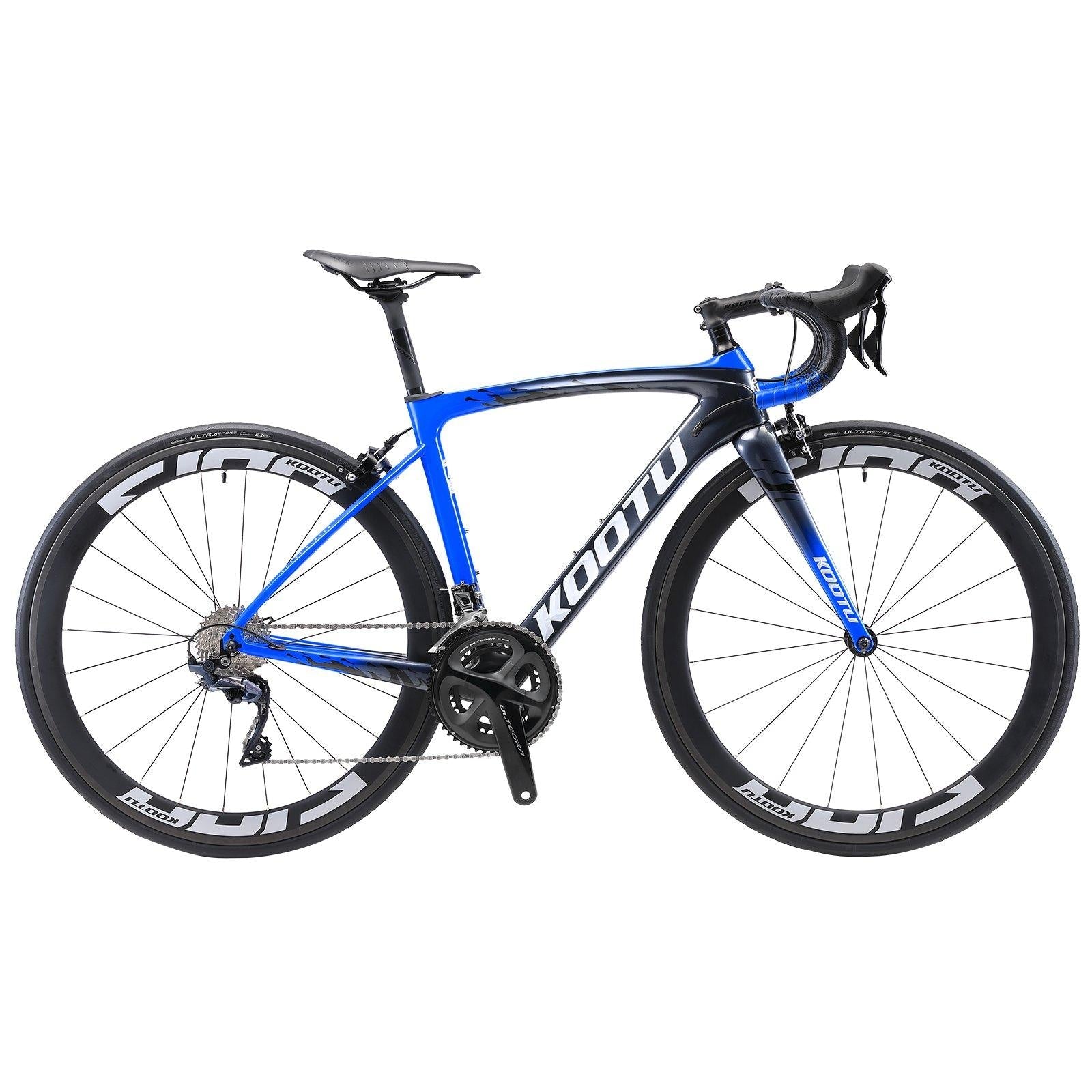

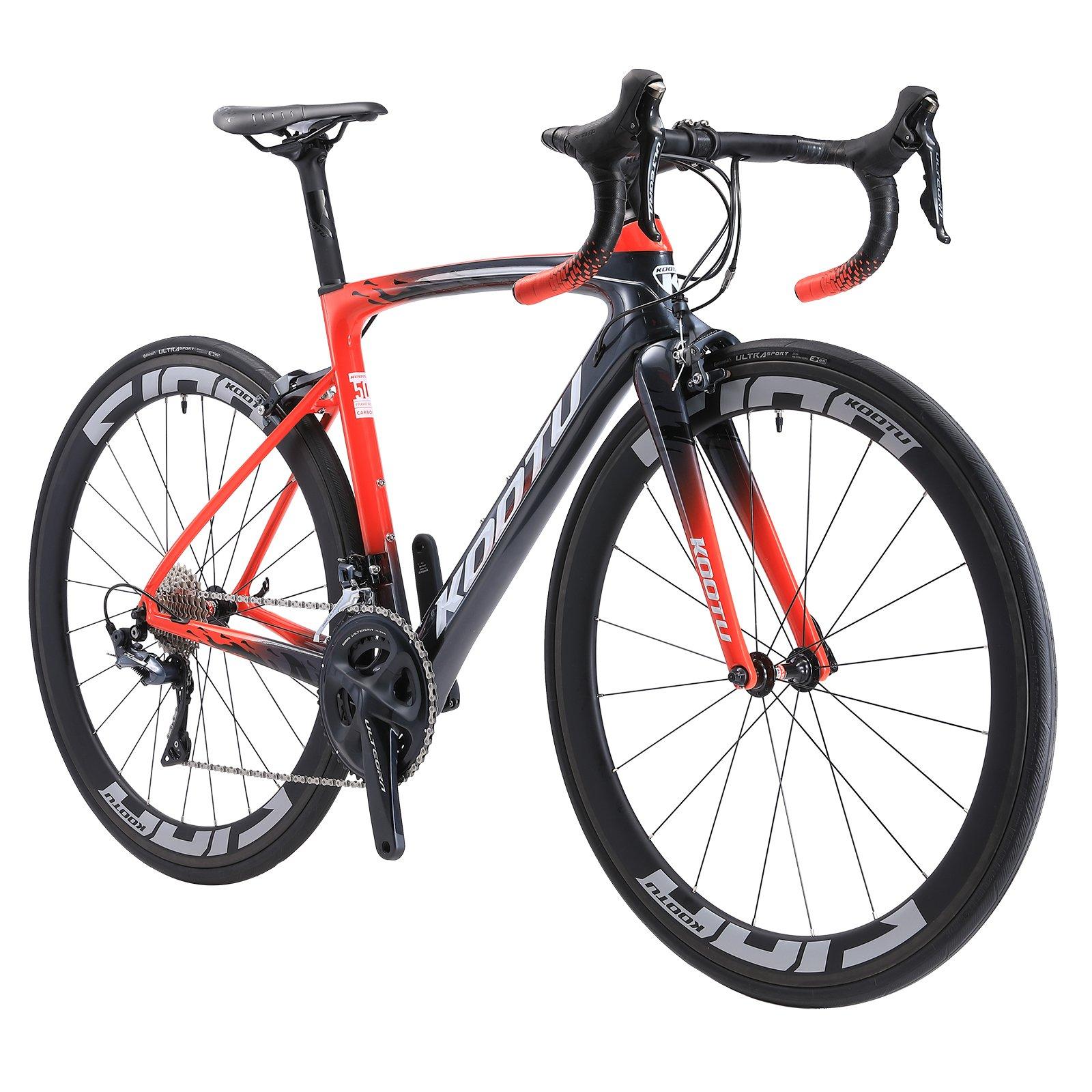

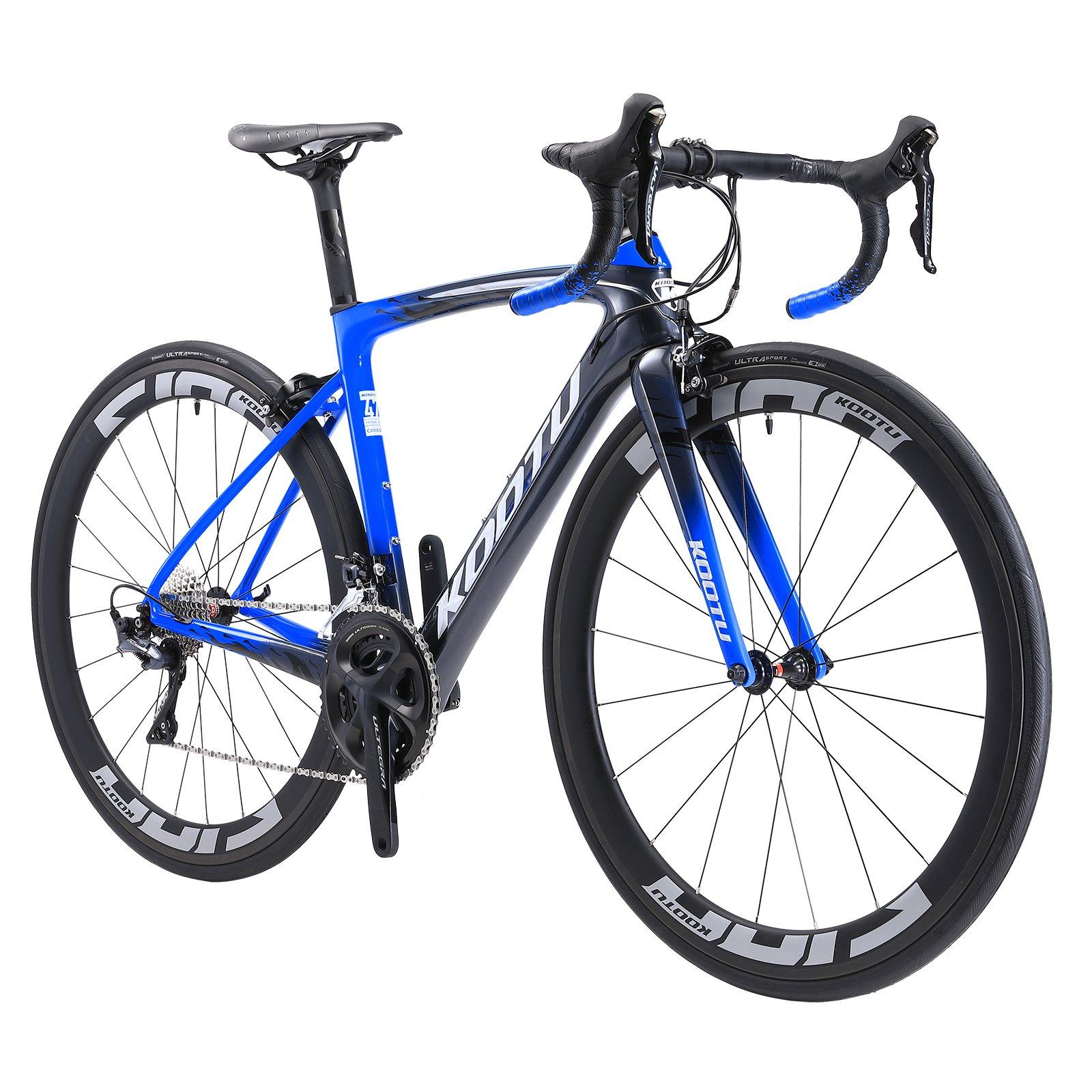

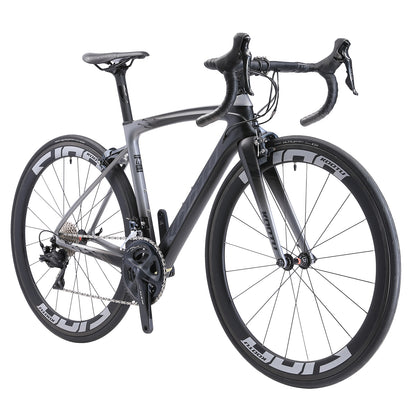

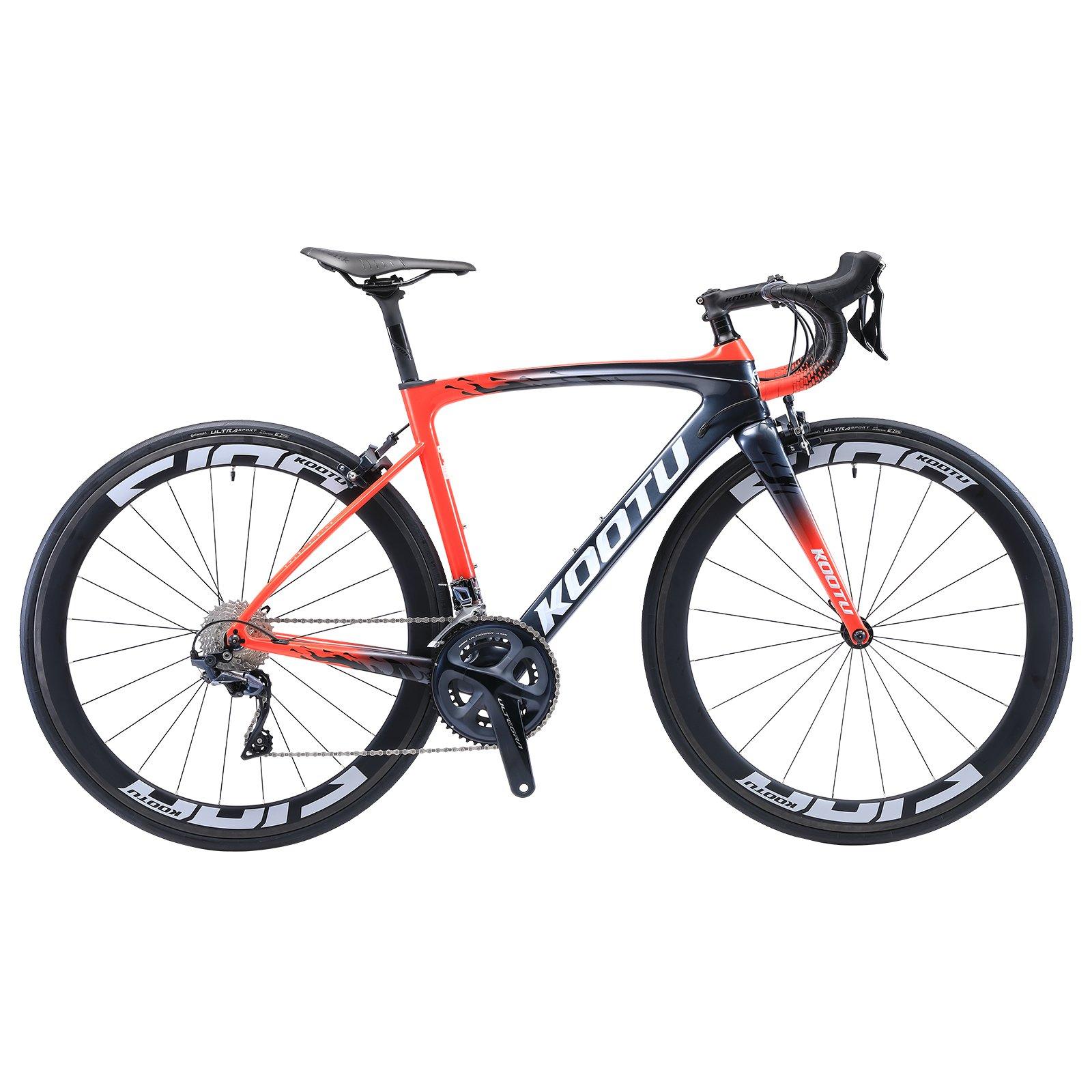

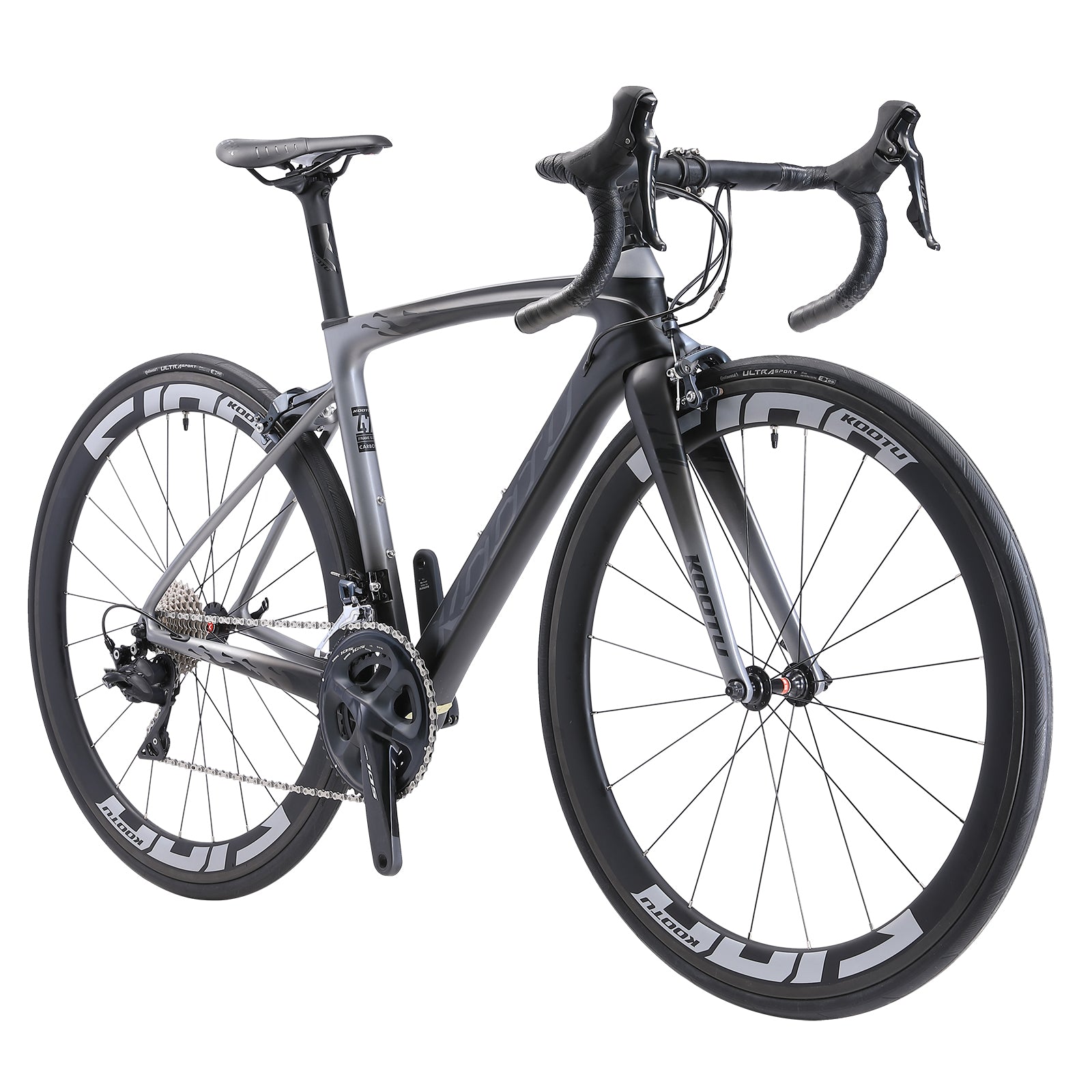

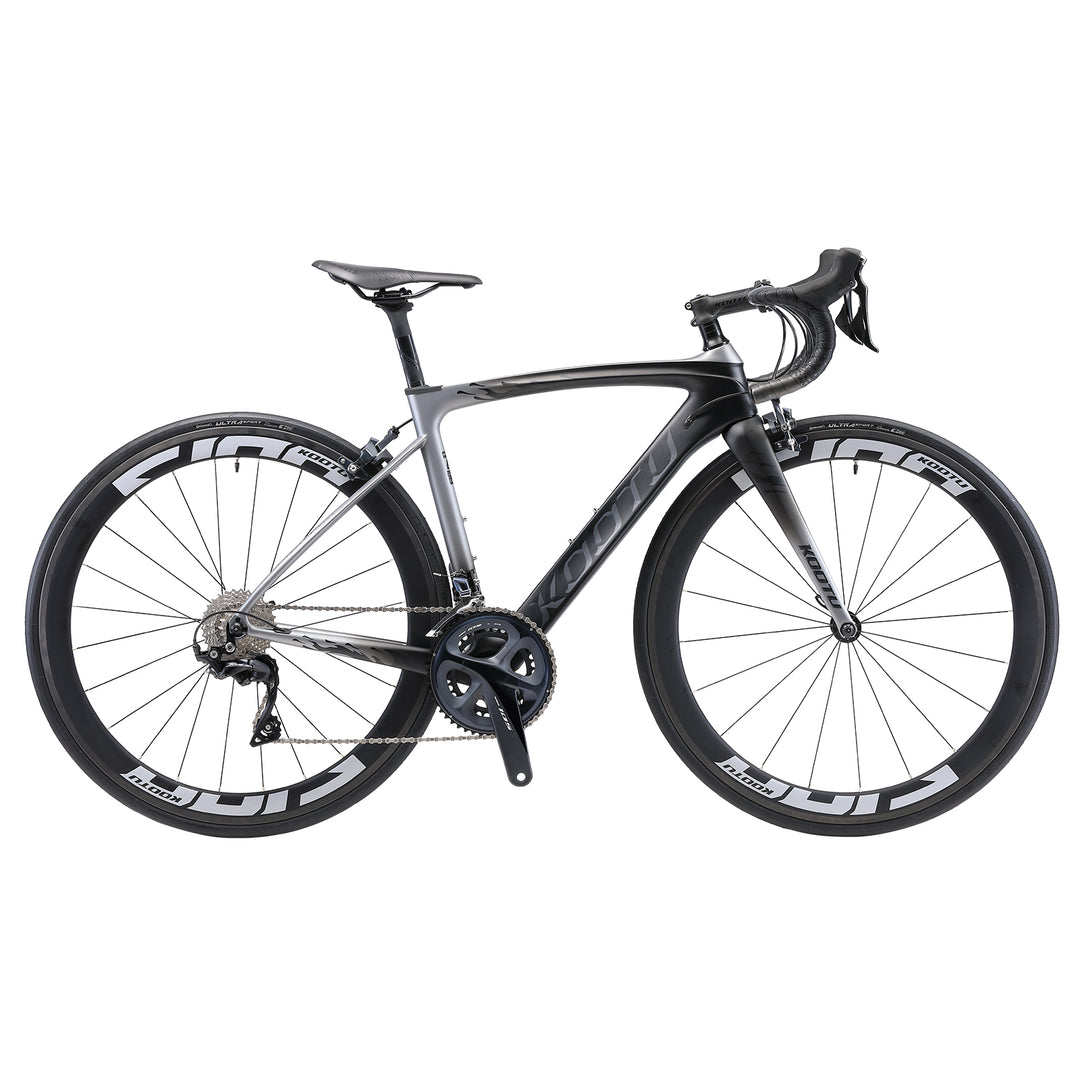

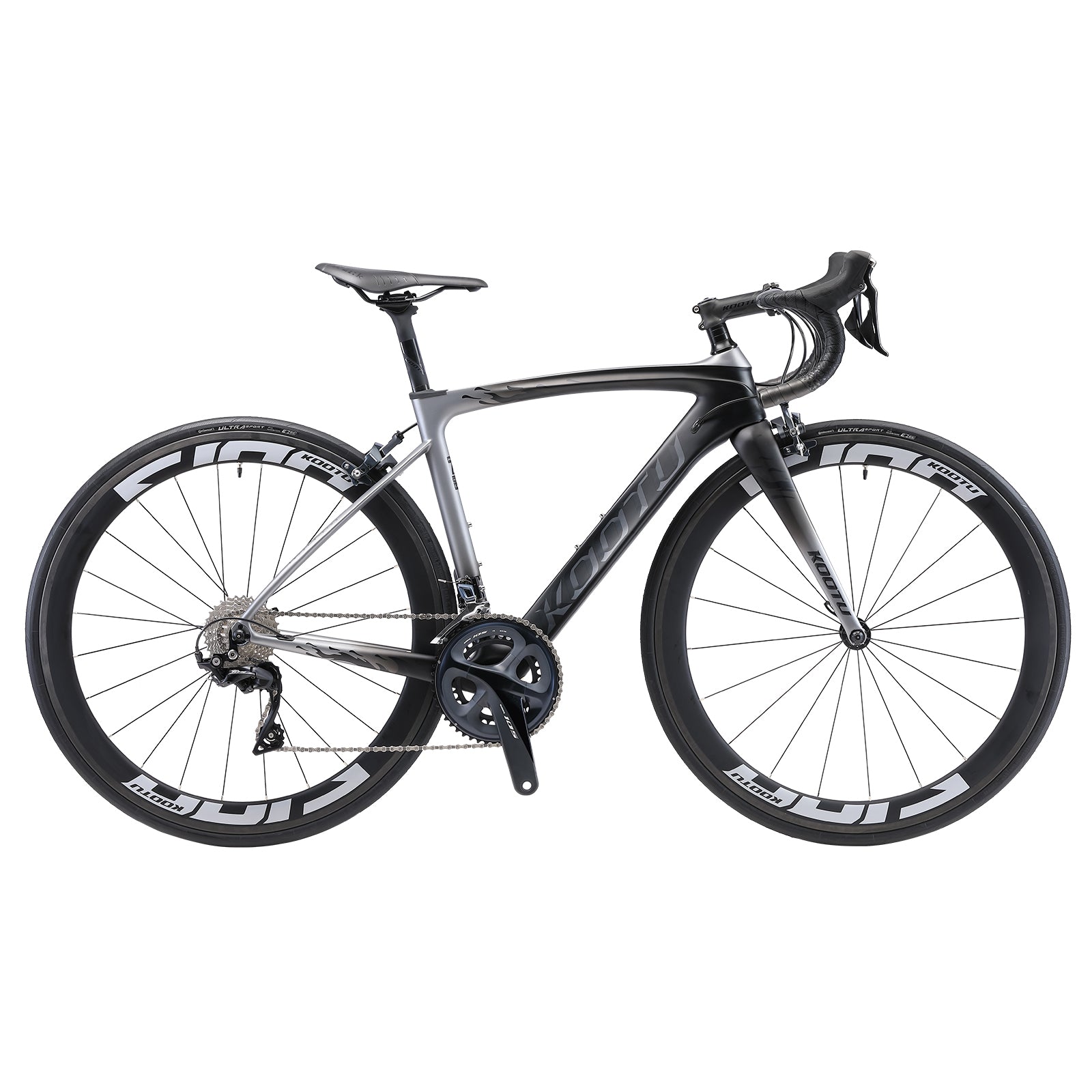

Name: KOOTU V5-105 Carbon Road Bike
Brand: KOOTUBIKE
SKU: KTRB0005-R-47
Price: 1499.0 USD
Availability: InStock
Rating: 5.0 (14 reviews)

Carbon Frame&Fork&Seatpost|Shimano 105 2*11|Rim Brake

$1,499.00

Tax included. Shipping calculated at checkout.

Free shipping & Home delivery

In stock, ready to ship
Inventory on the way

The KOOTU V5 Carbon Road Bike is equipped with a T800 grade carbon fiber frame ,fork,seatpost and features a 22-speed Shimano 105 R7000 system for efficient braking and optimal performance in racing.

T800 carbon fiber frame, fork, seatpost
Weight: about 9.25kg
Aerodynamic frame
Internal Cable routing design
Shimano 105 R7000 22 Speeds
700*25C Continental Tire
KMC Chain
90% Pre-assembled

Pairs well with

{"id":42905710952617,"title":"47cm \/ Red","option1":"47cm","option2":"Red","option3":null,"sku":"KTRB0005-R-47","requires_shipping":true,"taxable":false,"featured_image":{"id":38671865544873,"product_id":7678336893097,"position":1,"created_at":"2023-12-26T00:47:32-08:00","updated_at":"2023-12-26T00:47:39-08:00","alt":"KOOTU V5-105 Carbon Road Bike","width":1600,"height":1600,"src":"\/\/www.kootubike.com\/cdn\/shop\/files\/KOOTUV6carbonfiberroadbike-red.jpg?v=1703580459","variant_ids":[42905710952617,42905710985385,42905711050921,42905711083689]},"available":true,"name":"KOOTU V5-105 Carbon Road Bike - 47cm \/ Red","public_title":"47cm \/ Red","options":["47cm","Red"],"price":149900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"8711878639613","featured_media":{"alt":"KOOTU V5-105 Carbon Road Bike","id":31077414273193,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.kootubike.com\/cdn\/shop\/files\/KOOTUV6carbonfiberroadbike-red.jpg?v=1703580459"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

Frame Material:	T800 carbon fiber
Fork:	T800 carbon fiber, 700C*100
Handlebar:	Aluminum
Stem:	SM-A92-8, Aluminum alloy

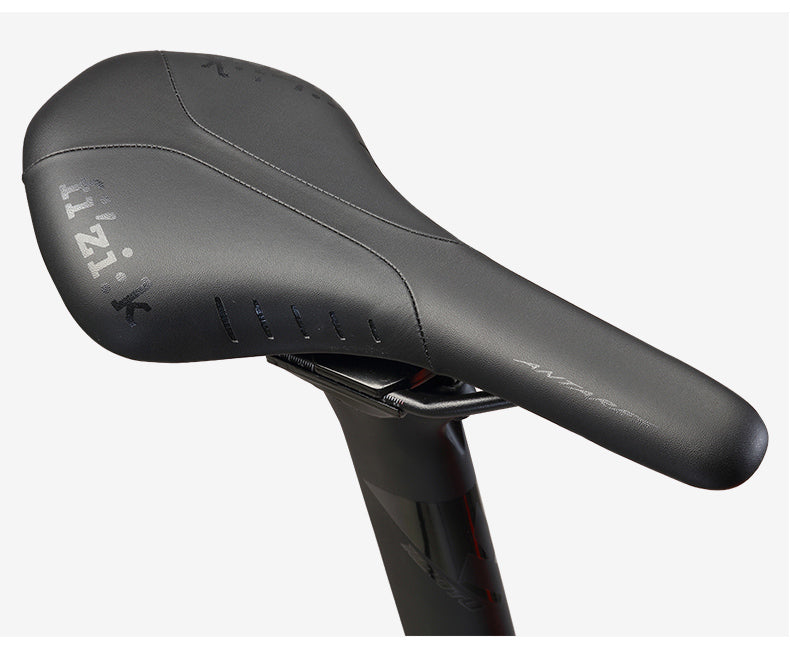

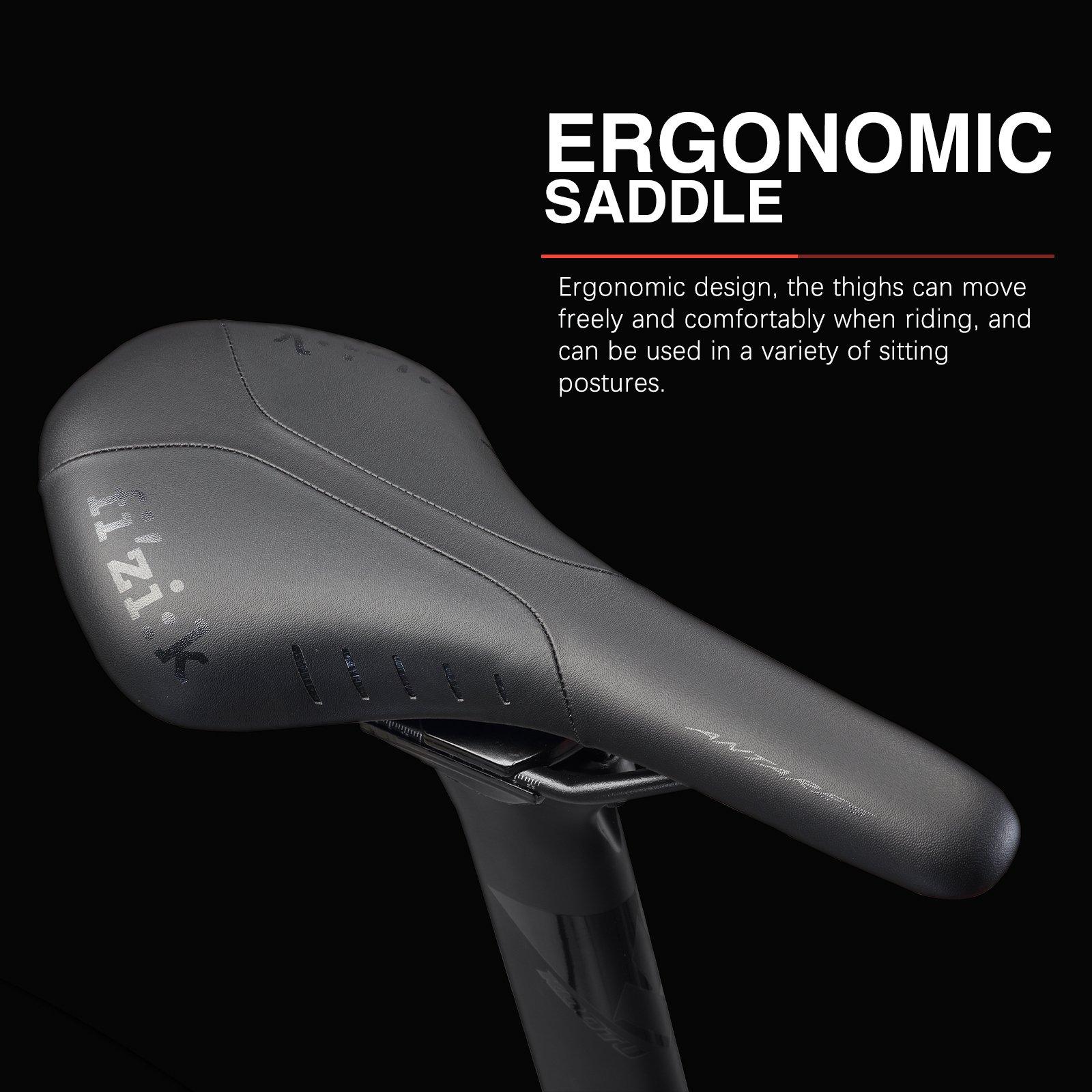

Saddle:	YBT K245 F02
Seat Post:	T800 carbon fiber, R03, 350mm
Shift lever:	Shimano KSTR7000LIL 105, ST-R7000
Front derailleur:	Shimano KFDR7000FL 105, FD-R7000-L, 11-Speed, Down-swing, Brazed-on bulk
Rear derailleur:	Shimano KRDR7000GSL 105, RD-R7000, GS 11-Speed,Direct attachment, bulk
Crankset:	VICTOR-621C-TT, 34/50T*170mm, BB68
Wheels:	DR-36 aluminum
Tires:	Continental Tire 700*25C Ultra Sport II
Chain:	KMC X11R
Pedal:	Sanyun LP-658A black
Standard brake setting	Left hand - front brake, Right hand - rear brake, if you want to change, please let us know.

Parameter	440(XS)	470(S)	510(M)	540(L)	560(XL)
Recommend Height	155 - 160cm (5‘1’‘ - 5’3’‘)	160 - 170cm (5‘3’‘ - 5’7’‘)	170 - 178cm (5‘7’‘ - 5’10’‘)	178 - 185cm (5‘10’‘ - 6’1’‘)	185 - 199cm (6‘1’‘ - 6’6’‘)
A Seat Tube (mm)	443.3	471.5	511.5	541.5	562
B Top Tube (mm)	505	520	535	550	559
C BB Drop(mm)	70	70	70	70	70
D Chainstay(mm)	410	410	410	410	410
E Scat Angle (°)	73.5°	73.5°	73.5°	73.5°	73.5°
F Head Angle(°)	71.2°	71.2°	71.4°	72°	72°
G Front Center(mm)	555.8	570.3	585.5	594.5	604
H Head Tube Length (mm)	95	97.5	122.5	144.5	164.5
I Fork Offset(mm)	45	45	45	45	45
J Reach (mm)	358.4	370	378	387	390.3
K Stack (mm)	509.3	516.6	534	554.5	580.5
L Frok Lenght(mm)	373	373	373	373	373
M Wheelbas (mm)	966.6	969.9	984.8	994.3	1004
N Standover(mm)	734	753	787	807	826

Shipping to	Average Delivery Time	Bikes Shipping Cost
United States	6-12 business days	Free
Australia	7-15 business days	Free
Asia	6-12 business days	Free
Middle East	10-15 business days	Free
Canada	10-15 business days	Free
Mexico	10-15 business days	Free
Israel	6-10 business days	$200
India	6-12 business days	$150
Brazil	20-35 business days	$380
Europe	12-18 business days	Free

Shipping Information

Once your order has been placed, we'll send you a confirmation email with your order number.
When your order has been shipped, we'll send you an email with a tracking number and a link that you can track it online.
No Tariff will be required to our customers on the Standard shipping methods.

Processing Time

After we received your order. It usually takes 2-3 business days for production, assembly, debug, packing, and sent out (Some new models may take 10-13 working days). Because we want to make sure the customer gets the bike 90% pre-assembled.

14-days Free replacement: contact customer service for missing and critically-damaged parts or other quality-related issues. Our customer service team will help to arrange the replacement.

Our policy lasts 14 days. If 14 days have gone by since delivery, unfortunately we can’t offer you a refund or exchange.

Watch the manual: Download

Q:What is the tire pressure on this bike?

A:85-120PSI

Q:Is this bike all carbon fiber?

A:The frame, fork, and seatpost of this bike are made of carbon fiber.

Q:Does this bike come with tubes or tubeless?

A:The bike comes with tubes, so if you want to go tubeless, please go to a bike store and replace the entire wheelset after you recive the KOOTU bike.

Q:What is the maximum size of tire this bike is compatible with?

A:The maximum compatible tire size for this bike is 28C.

Q:What is the torque of the KOOTU bicycle screws?

A:1.Front/Rear Hub Axle：8-12N.m
2.Brake Caliper Fixing Bolt: 5N.m
3.Saddle Clamp Bolt: 6-8N.m
4.Hanger Core: 6-10N.m
5.Front Derailleur Fixing Bolt: 5-7N.m
6.Stem Clamp Bolt: 5-8N.m
7.Crankset Fixing Bolt: 12-14N.m
8.Chainring Fixing Bolt: 12-16N.m
9.Rear Derailleur Hanger Pivot Bolt: 8-10N.m
10.Bottle Cage Bolt: 4N.m
11.Bike Computer Mount Fixing Bolt: 4-5N.m
12.Stem Top Cap Bolt: 4-5N.m
13.Front/Rear Disc Rotor Locking Nut: 40N.m
14.Derailleur Cable Tension Bolt: 5-7N.m
15.Seatpost Clamp: 5-10N.m
16.Shifter Clamp Bolt: 6-8N.m
17.Rear Derailleur Hanger Fixing Bolt: 1-2N.m
18.Threaded Bottom Bracket: 30-50N.m

Unique frame design

KOOTU carbon fiber frame abandons universal design, creates original breakthroughs, customizes an exclusive riding experience, creates a personalized riding style, provides each rider with unique rigidity and comfort, and achieves an extremely personalized riding journey.

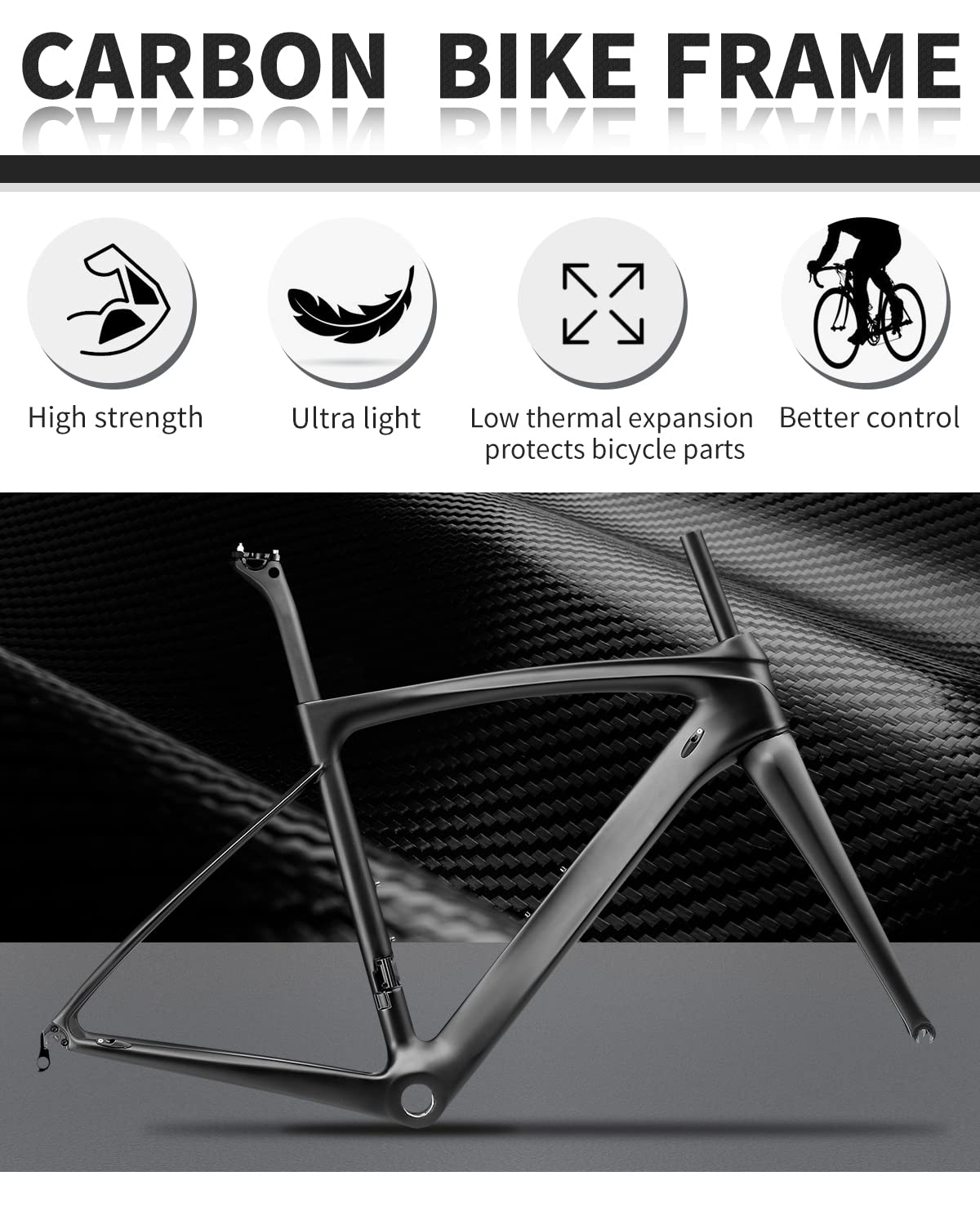

Ultra-light carbon fiber frame

KOOTU Carbon Fiber Frames, meticulously crafted for unparalleled strength, customized precision, and a ride that reflects your individual style.

Seamless Integration, Effortless Riding

Experience a sleek and aerodynamic cycling journey with our advanced internal cable routing design. Unleash the perfect synergy of form and function as cables disappear within the frame, delivering a clean aesthetic, reduced air resistance.

Unique wind breaking design

Experience a revolution in cycling with our unique wind-breaking design, meticulously crafted to cut through the air with unparalleled efficiency. Embrace aerodynamic excellence, reduce drag, and elevate your ride to new heights of speed and performance

Carbon fiber parts display

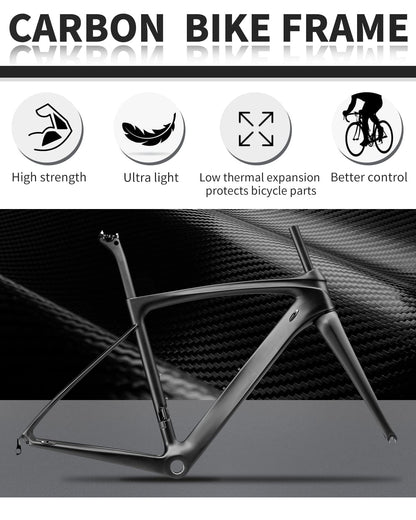

T800 grade carbon fiber frame & seatpost

Meticulously engineered for strength and agility, this advanced composite material ensures a lightweight yet robust foundation, delivering unparalleled responsiveness and comfort for a cycling experience beyond compare

T800 grade carbon fiber fork

Lightening the overall bike weight for indirect speed enhancement, coupled with the excellent elasticity of the carbon fiber fork to absorb ground vibrations, and a unique aerodynamic design, achieves precise bike control

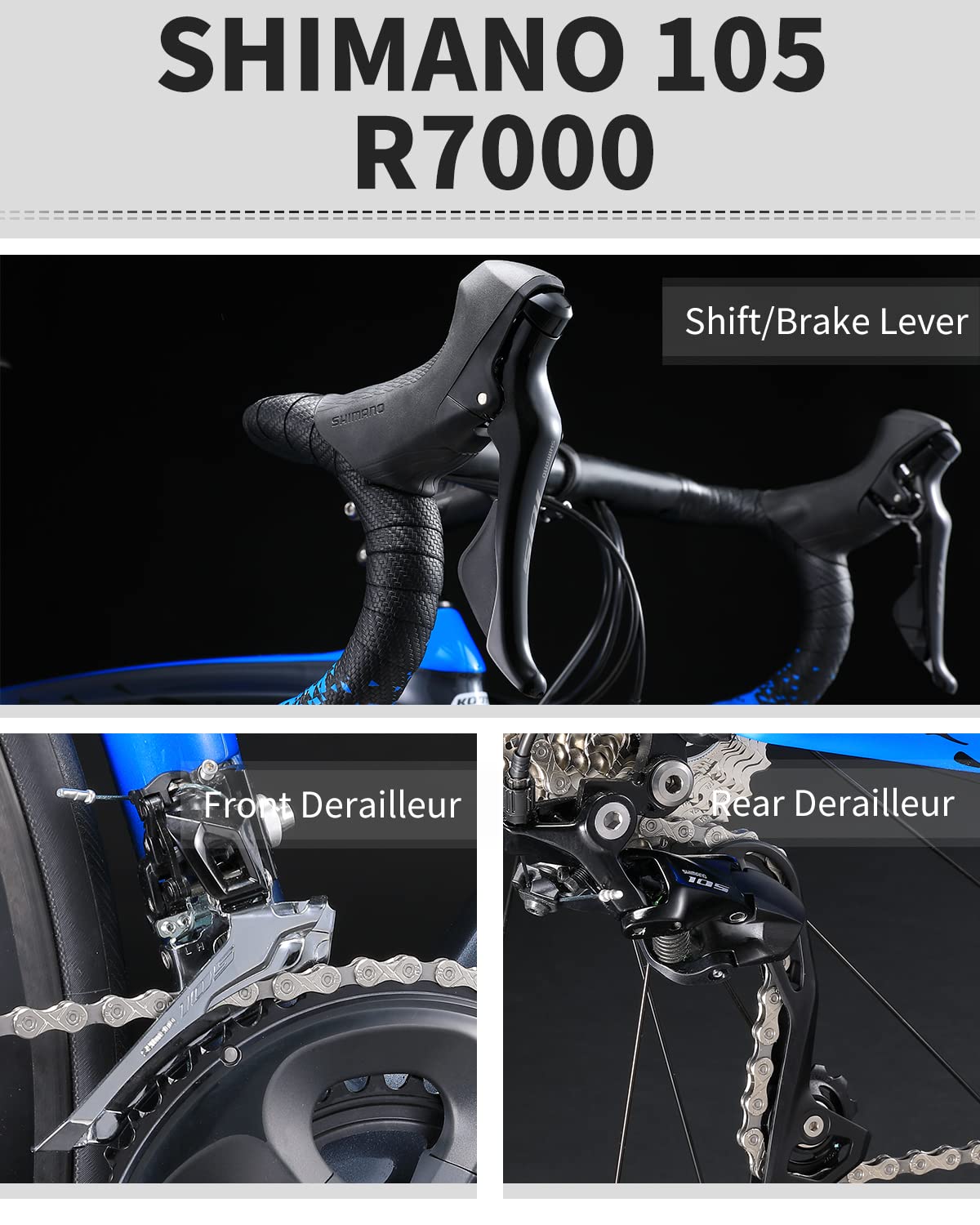

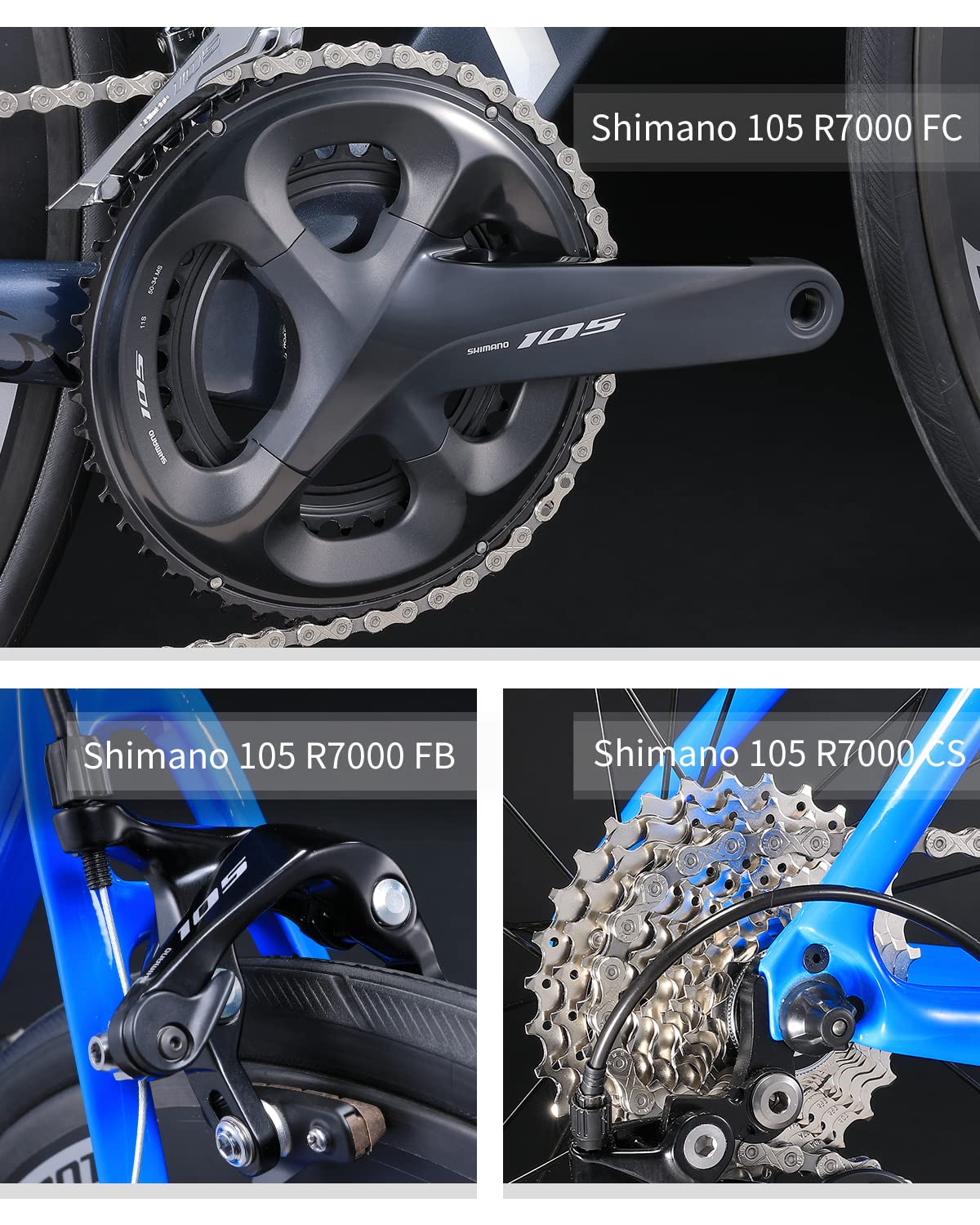

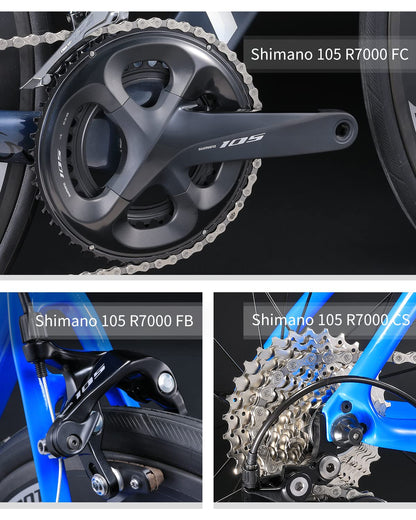

SHIMANO 105 transmission system

The SHIMANO 105 transmission system offers a compelling combination of precision engineering, reliable 11-speed performance, smooth shifting, and cutting-edge technology, ensuring a superior cycling experience for enthusiasts and professionals alike.

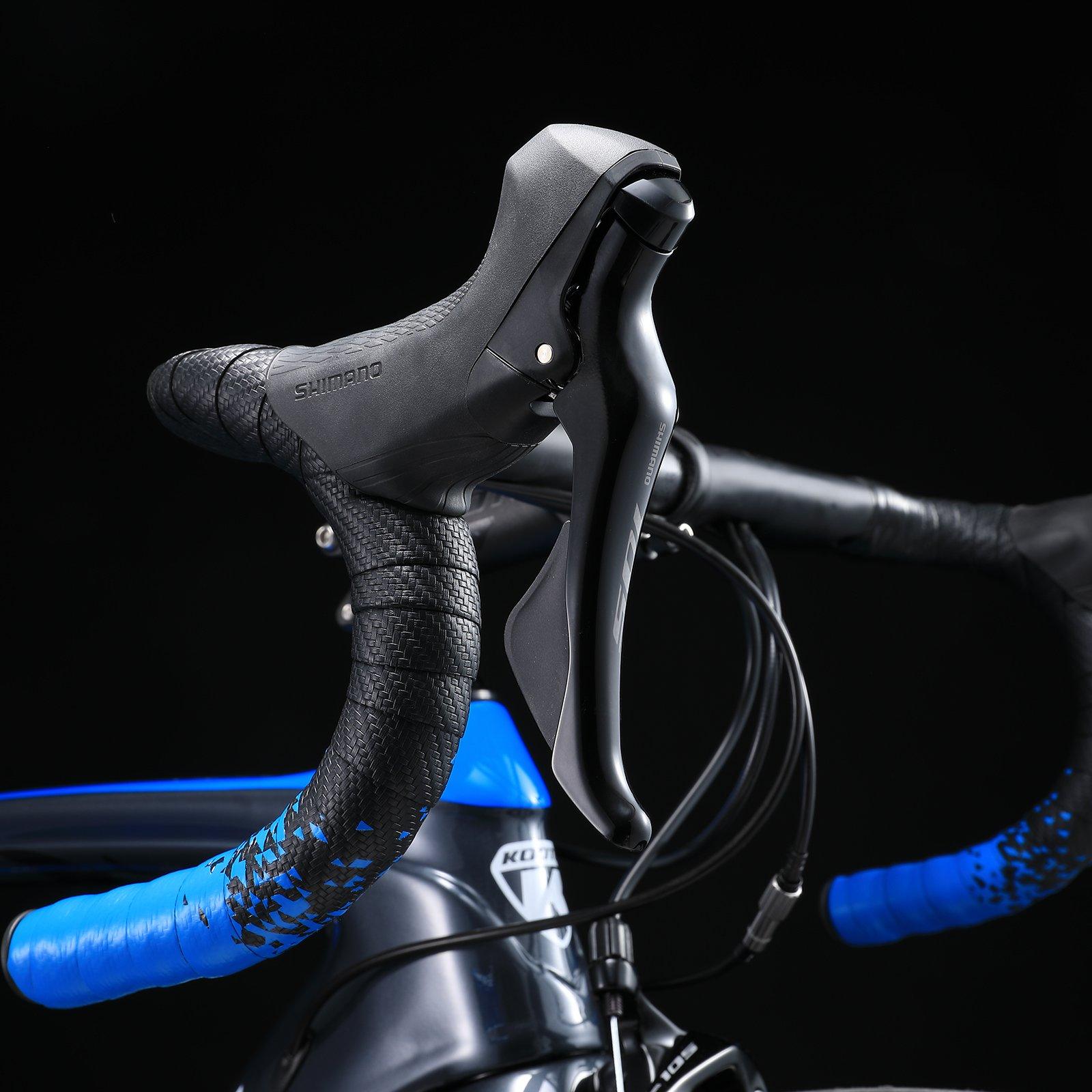

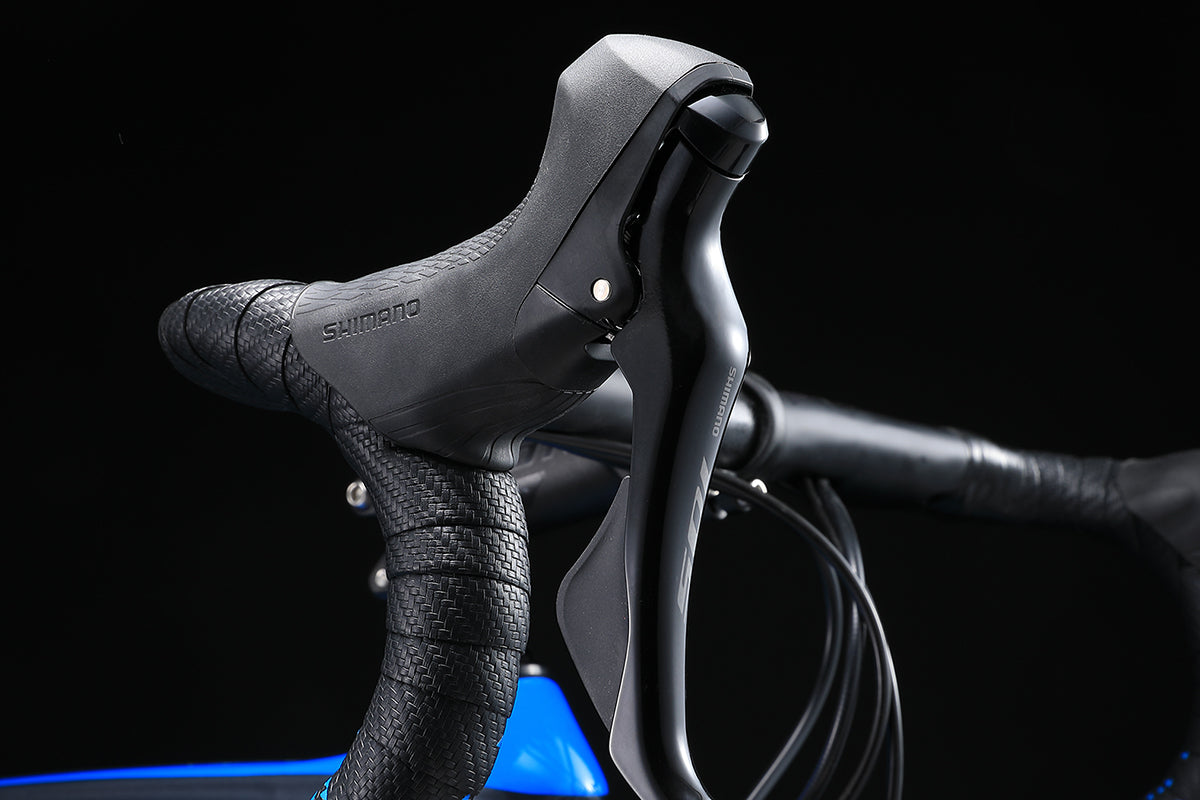

SHIMANO 105 ST-R7000

Deliver crisp, precise shifts and smooth, light action, leveraging updated internals for nearly the same performance as more expensive offerings. In addition to new technology, the ST-R7000 shifter features an updated ergonomic design and revised lever curve for a more intuitive, comfortable shifting and braking experience.

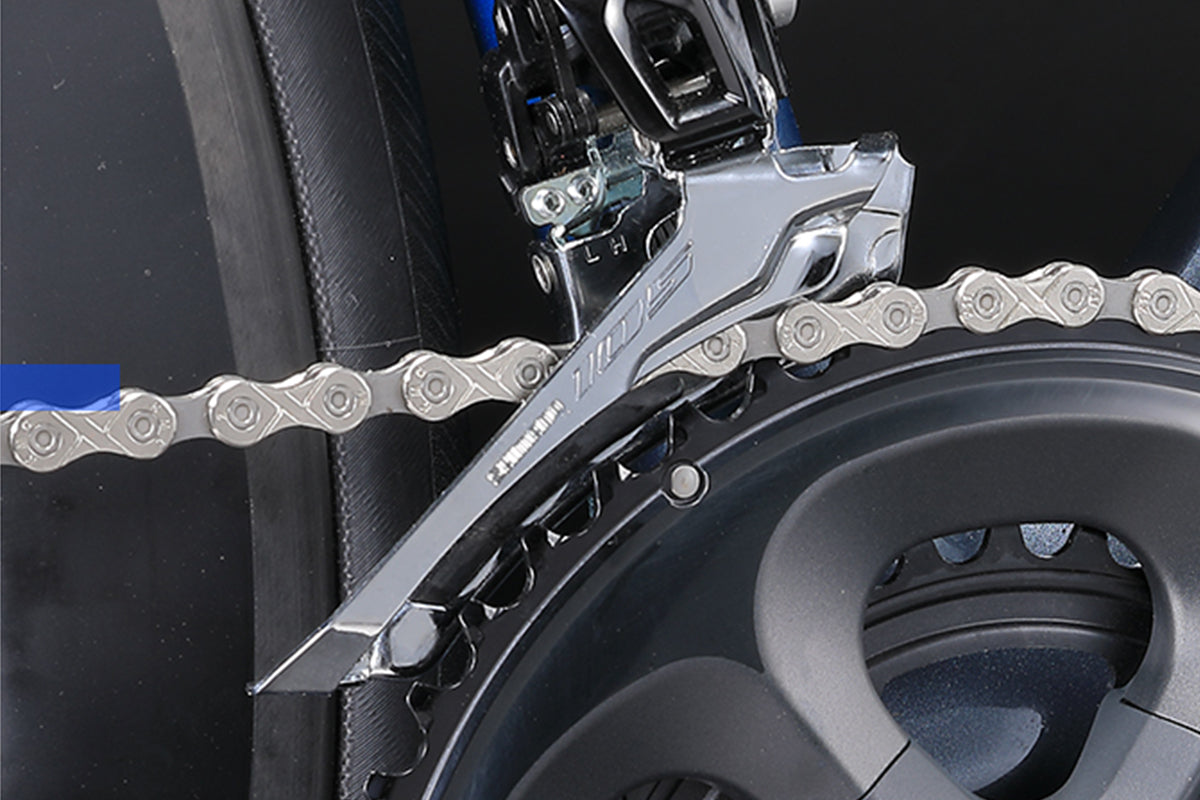

SHIMANO 105 FD-R7000

Features a new toggle construction with integrated cable tensioner, optimized cage design for disc brake road bikes, and offers lighter shifting, ergonomic power curve, and enhanced cable routing options

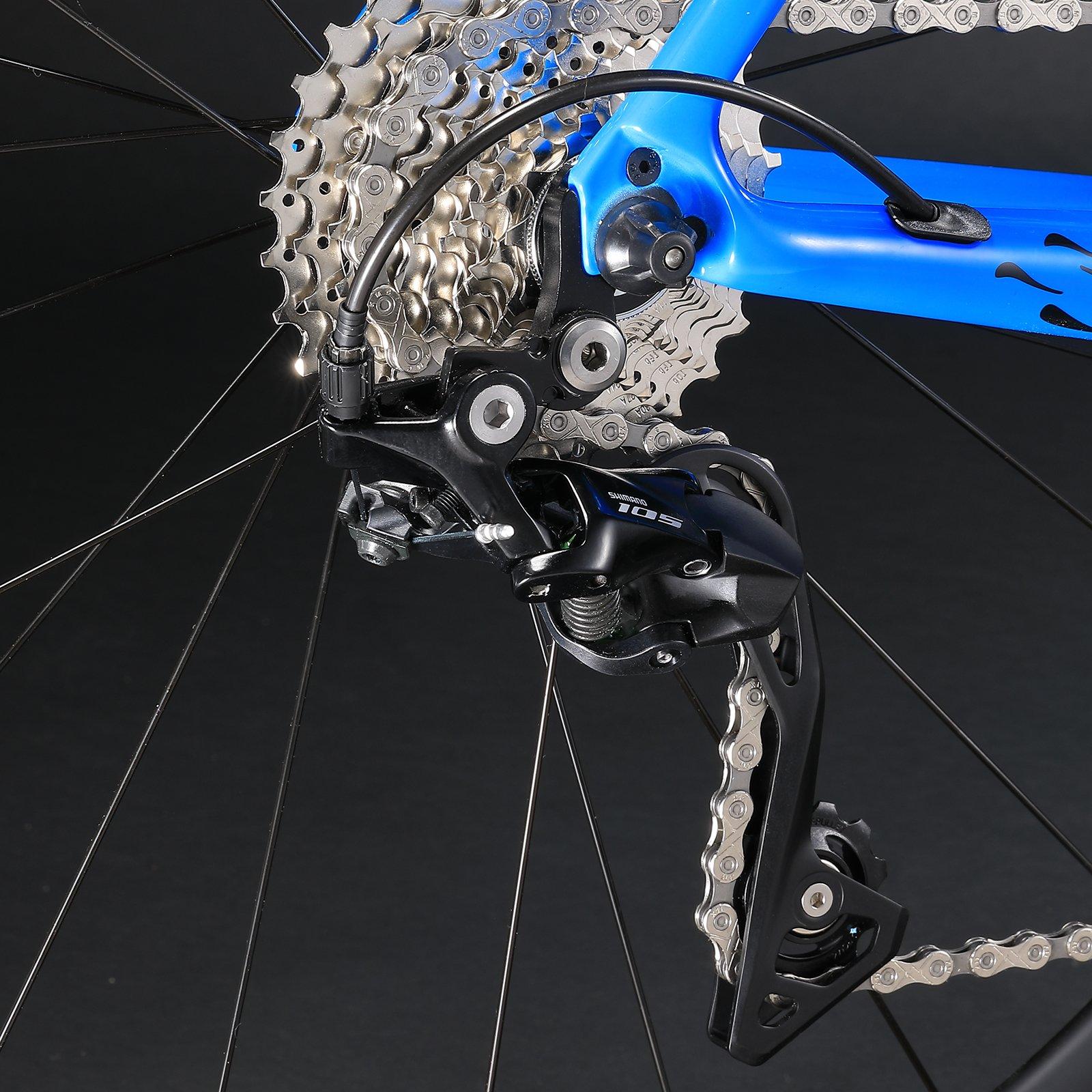

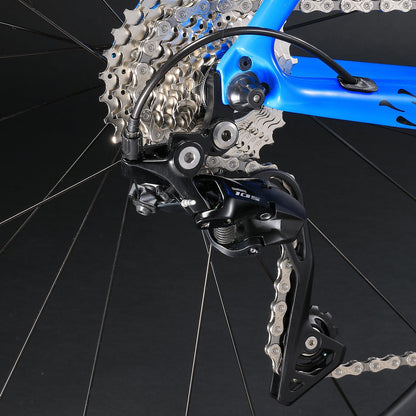

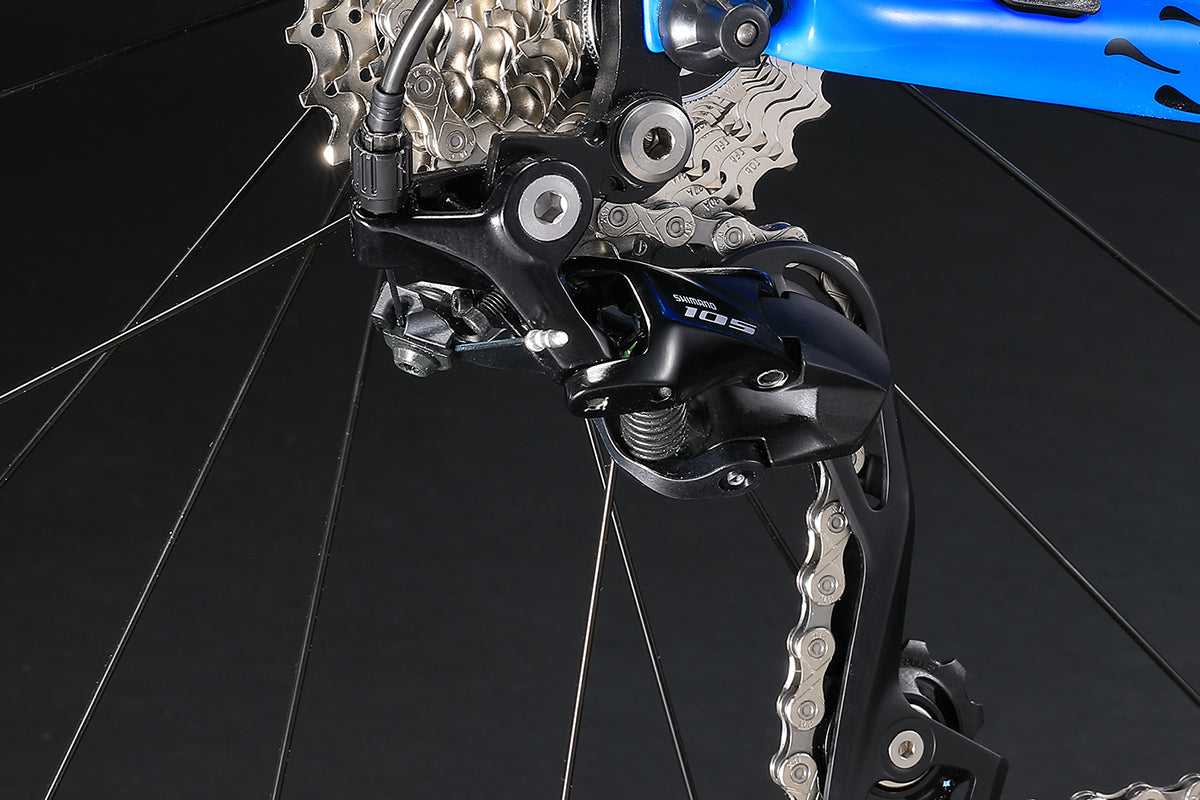

SHIMANO 105 RD-R7000

Featuring the SHIMANO SHADOW RD design, ensures stable shifting performance for 11-speed road drivetrains, with options for both short and medium cage configurations, wide compatibility and a low-profile design suitable for direct mount applications

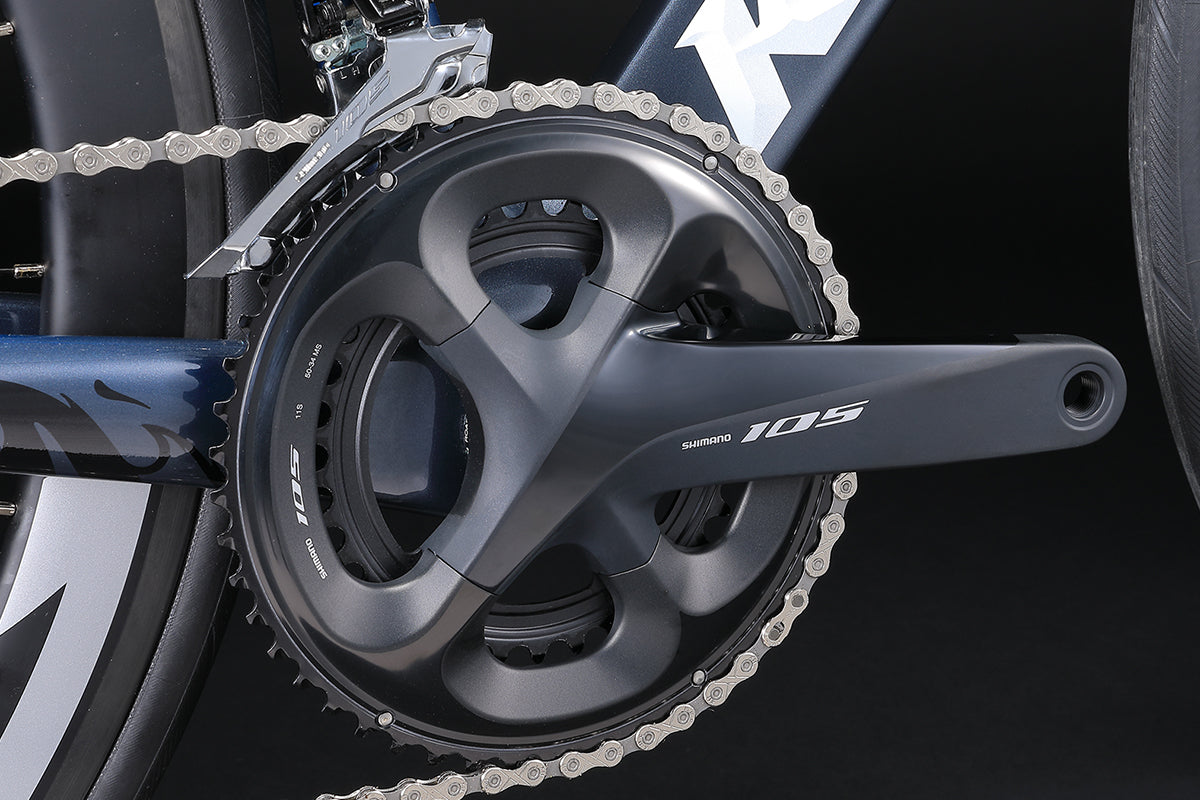

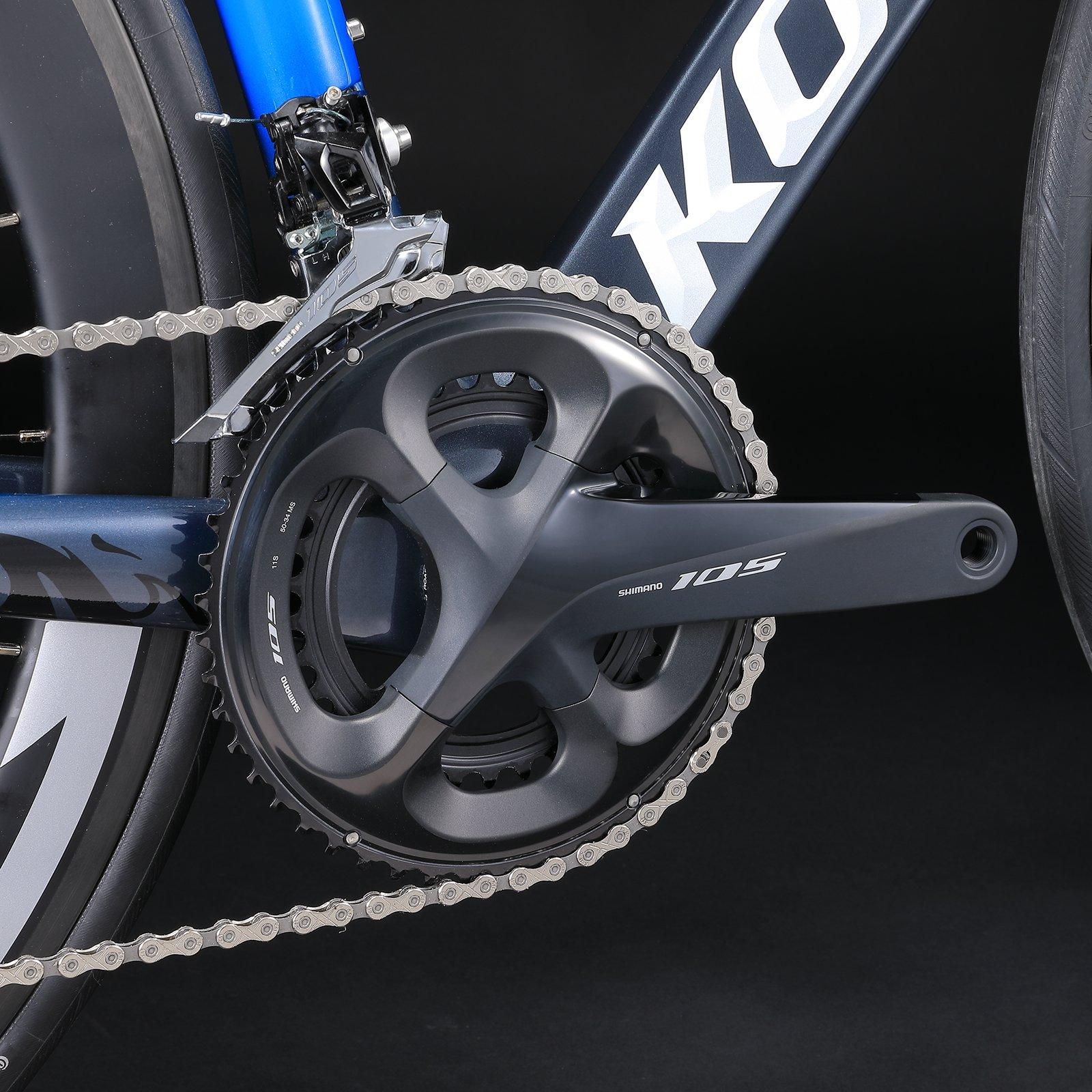

Upgraded Asymmetric Tooth Profile Chainring

The shape of each tooth tip has been calculated and designed. The design of long and short missing teeth improves the efficiency of gear shifting. The design of the integrated crankset is more controllable and more labor-saving when riding.

700C*25C Continental tires

Continental's renowned quality and performance, and optimized handling and grip for a smooth and responsive riding experience.

Enhanced version of flywheel

High-precision positioning of tooth shape, uniform force, continuous teeth, efficient transmission, hollow lightweight design and other advantages

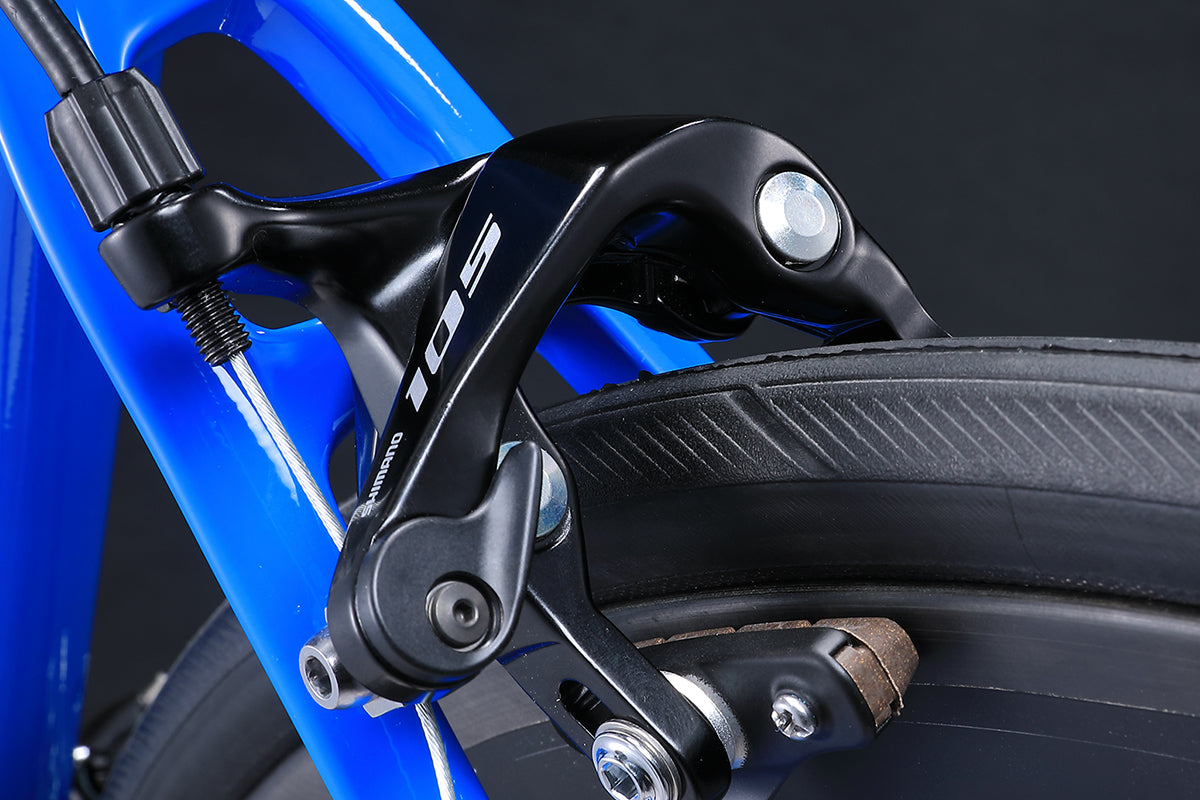

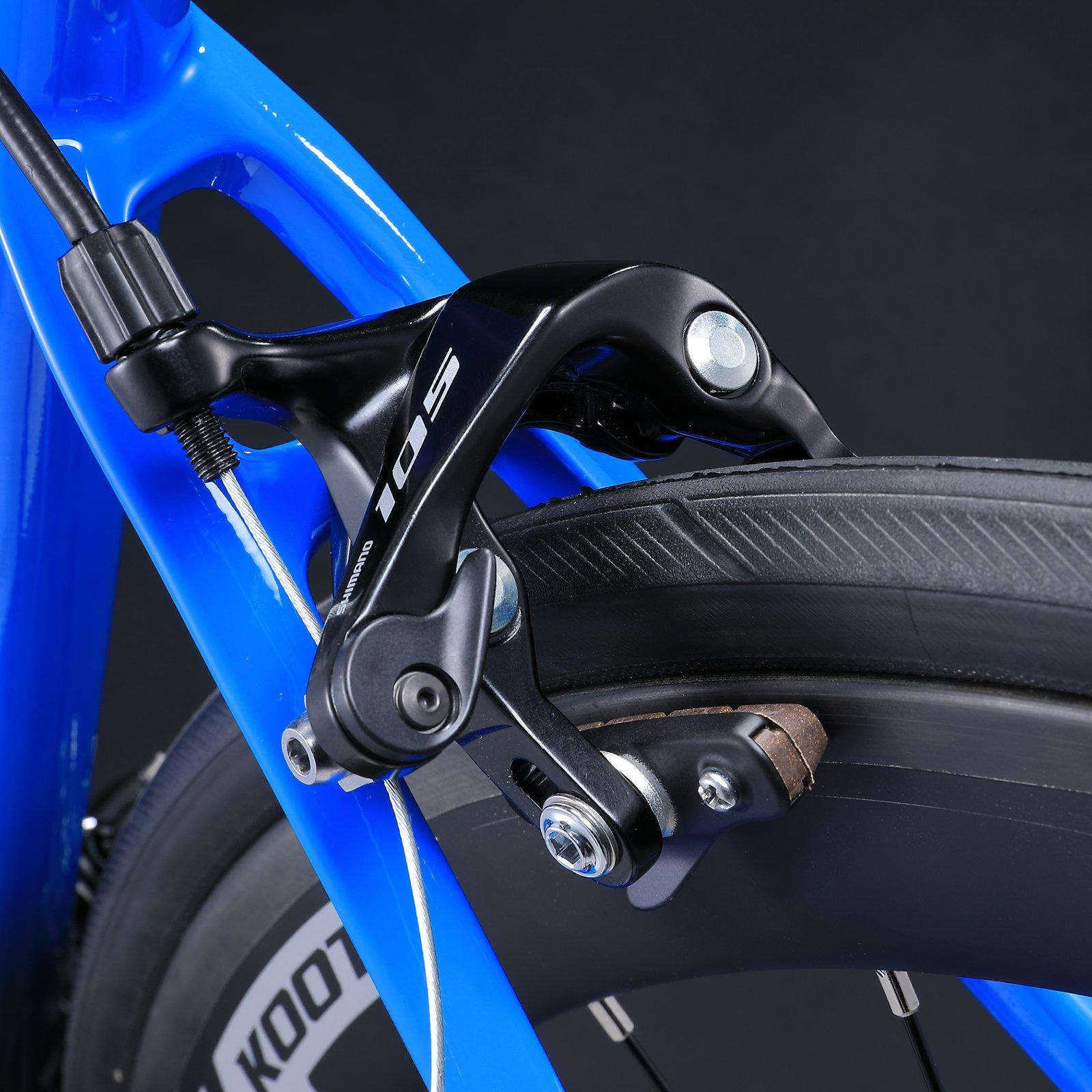

U-shaped brake

The braking performance is stable and the maintenance cost is low. Because the road conditions are better and the speed is faster during driving, it plays an effective buffering role during sudden braking and reduces the risk of rollover.

Cost-effective Carbon Bike

KOOTU makes carbon fiber bicycles affordable for everyone with high-end bike configurations

Safety and quality assurance

Secure payment guarantee and 2-year frame warranty
