Name: KOOTU V3 Carbon Road Bike
Brand: KOOTUBIKE
SKU: KTRB0004-G-47
Price: 1299.0 USD
Availability: InStock
Rating: 4.9 (100 reviews)

Carbon Frame&Fork&Seatpost|SHIMANO SORA 2*9|Rim Brake

$1,299.00

Tax included. Shipping calculated at checkout.

Free shipping & Home delivery

Low stock - 10 items left
Inventory on the way

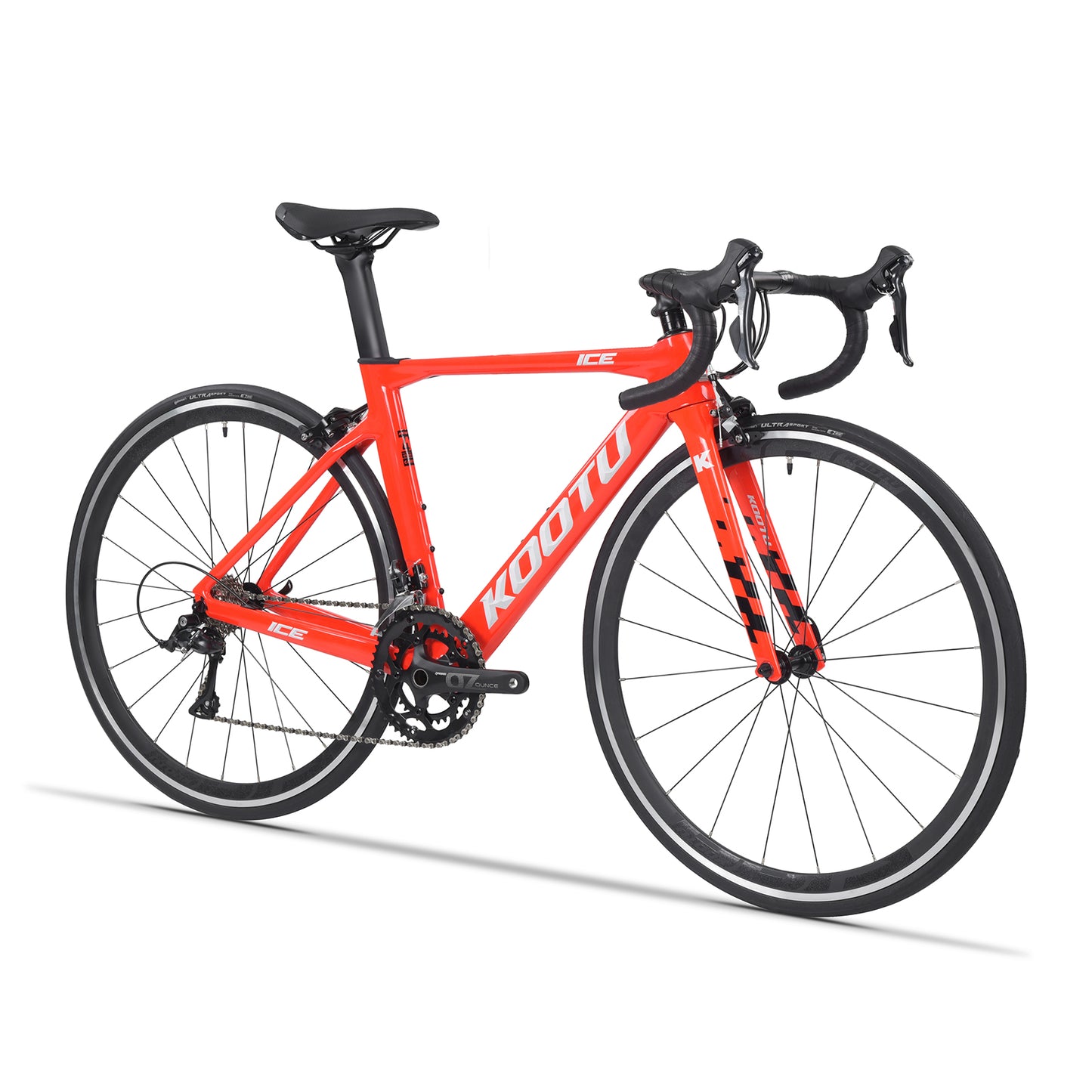

The KOOTU V3 Carbon Road Bike is an ideal choice for serious riders looking for speed and performance. It features a lightweight carbon frame, Shimano Sora R3000 18speed, and v-brake for fast and reliable stopping power. Reach your fitness goals with this elite road bike.

T800 carbon fiber frame, fork, seat post
SHIMANO SORA R3000 9*2=18 Speed
Weight:about 9.7kg
Internal cable routing design
Wind tunnel design
V brake system
700*25C Continental tires and KMC chain
90% pre-assembled

Pairs well with

{"id":42922707943593,"title":"47cm \/ Grey","option1":"47cm","option2":"Grey","option3":null,"sku":"KTRB0004-G-47","requires_shipping":true,"taxable":false,"featured_image":{"id":38283659444393,"product_id":7353008652457,"position":1,"created_at":"2023-09-25T02:09:16-07:00","updated_at":"2023-09-25T02:10:05-07:00","alt":"KOOTU V3 Carbon Road Bike","width":1600,"height":1600,"src":"\/\/www.kootubike.com\/cdn\/shop\/files\/V3carbonroadbike-gray.jpg?v=1695633005","variant_ids":[42922707943593,42922707976361,42922708041897,42922708074665]},"available":true,"name":"KOOTU V3 Carbon Road Bike - 47cm \/ Grey","public_title":"47cm \/ Grey","options":["47cm","Grey"],"price":129900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"8711878309059","featured_media":{"alt":"KOOTU V3 Carbon Road Bike","id":30678012756137,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/www.kootubike.com\/cdn\/shop\/files\/V3carbonroadbike-gray.jpg?v=1695633005"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

Parameter	440(XS)	470(S)	510(M)	540(L)	560(XL)
Recommend Height	155 - 160cm (5‘1’‘ - 5’3’‘)	160 - 170cm (5‘3’‘ - 5’7’‘)	170 - 178cm (5‘7’‘ - 5’10’‘)	178 - 185cm (5‘10’‘ - 6’1’‘)	185 - 199cm (6‘1’‘ - 6’6’‘)
A Seat Tube (mm)	443.3	471.5	511.5	541.5	562
B Top Tube (mm)	505	520	535	550	559
C BB Drop(mm)	70	70	70	70	70
D Chainstay(mm)	410	410	410	410	410
E Scat Angle (°)	73.5°	73.5°	73.5°	73.5°	73.5°
F Head Angle(°)	71.2°	71.2°	71.4°	72°	72°
G Front Center(mm)	555.8	570.3	585.5	594.5	604
H Head Tube Length (mm)	95	97.5	122.5	144.5	164.5
I Fork Offset(mm)	45	45	45	45	45
J Reach (mm)	358.4	370	378	387	390.3
K Stack (mm)	509.3	516.6	534	554.5	580.5
L Frok Lenght(mm)	373	373	373	373	373
M Wheelbas (mm)	966.6	969.9	984.8	994.3	1004
N Standover(mm)	734	753	787	807	826

Shipping to	Average Delivery Time	Bikes Shipping Cost
United States	6-12 business days	Free
Australia	7-15 business days	Free
Asia	6-12 business days	Free
Middle East	10-15 business days	Free
Canada	10-15 business days	Free
Mexico	10-15 business days	Free
Israel	6-10 business days	$200
India	6-12 business days	$150
Brazil	20-35 business days	$380
Europe	12-18 business days	Free

Shipping Information

Once your order has been placed, we'll send you a confirmation email with your order number.
When your order has been shipped, we'll send you an email with a tracking number and a link that you can track it online.
No Tariff will be required to our customers on the Standard shipping methods.

Processing Time

After we received your order. It usually takes 2-3 business days for production, assembly, debug, packing, and sent out (Some new models may take 10-13 working days). Because we want to make sure the customer gets the bike 90% pre-assembled.

14-days Free replacement: contact customer service for missing and critically-damaged parts or other quality-related issues. Our customer service team will help to arrange the replacement.

Our policy lasts 14 days. If 14 days have gone by since delivery, unfortunately we can’t offer you a refund or exchange.

Frame Material:	Carbon fiber
Fork:	Carbon fiber 700C*100 (fork open)
Handlebar:	Aluminum, 420*31.8mm
Stem:	Aluminum 31.828.6100mm, -7°degree
Fork bearing:	28.641.8-5239.8mm
Saddle:	YBT Road Bike Saddle
Seat Post:	Carbon fiber 350mm
Shift lever:	Shimano Sora ST-R3000-L + Shimano Sora ST-R3000-R
Front Derailleur:	Shimano Sora FD-R3000
Rear Derailleur:	Shimano Sora RD-R3000
Brakes calipers:	Tektro R313 V-brake 39-52MM
Flywheel:	Sunrise Cassette 11-25T
Crank sets:	Prowheel Ounce-421C 34/50T*170mm, BB68
Standard brake setting	Left hand - front brake, Right hand - rear brake, if you want to change, please let us know.
Chain:	KMC Z9
Pedal:	SANYUN LP-658A 9/16'
Wheelset:	Aluminum, 700C1.5 14G24H,F/V
Hub:	14G20H M9100108/ 14G24H M10130140
Tires:	700x25C Continental Ultra Sport
Accessories:	Multi Assemble tools, User Manual

Watch the manual: Download

Q:What is the tire pressure on this bike?

A:85-120PSI

Q:Is this bike all carbon fiber?

A:The frame, fork, and seatpost of this bike are made of carbon fiber.

Q:Does this bike come with tubes or tubeless?

A:The bike comes with tubes, so if you want to go tubeless, please go to a bike store and replace the entire wheelset after you recive the KOOTU bike.

Q:What is the maximum size of tire this bike is compatible with?

A:The maximum compatible tire size for this bike is 28C.

Q:What is the torque of the KOOTU bicycle screws?

A:1.Front/Rear Hub Axle：8-12N.m
2.Brake Caliper Fixing Bolt: 5N.m
3.Saddle Clamp Bolt: 6-8N.m
4.Hanger Core: 6-10N.m
5.Front Derailleur Fixing Bolt: 5-7N.m
6.Stem Clamp Bolt: 5-8N.m
7.Crankset Fixing Bolt: 12-14N.m
8.Chainring Fixing Bolt: 12-16N.m
9.Rear Derailleur Hanger Pivot Bolt: 8-10N.m
10.Bottle Cage Bolt: 4N.m
11.Bike Computer Mount Fixing Bolt: 4-5N.m
12.Stem Top Cap Bolt: 4-5N.m
13.Front/Rear Disc Rotor Locking Nut: 40N.m
14.Derailleur Cable Tension Bolt: 5-7N.m
15.Seatpost Clamp: 5-10N.m
16.Shifter Clamp Bolt: 6-8N.m
17.Rear Derailleur Hanger Fixing Bolt: 1-2N.m
18.Threaded Bottom Bracket: 30-50N.m

RicTailored Excellence: KOOTU Carbon Fiber Frames for Specialized Performance

Crafted with a relentless commitment to perfection, KOOTU's carbon fiber frames redefine the boundaries of specialized cycling. Each frame is a testament to our dedication to innovation, caters to the unique demands of every rider.

Ultra-light carbon fiber frame

Experience unparalleled speed and agility with KOOTU's ultra-lightweight carbon fiber frames, where every pedal stroke is effortlessly propelled towards a new dimension of cycling excellence.

KOOTU's Cable Mastery Unleashes Cycling Excellence!

Seamless performance meets aesthetic precision with KOOTU's bicycle frames featuring internal cable routing, ensuring a sleek and aerodynamic design for an unrivaled riding experience.

internal cable routing design-kootu bike

Unique wind breaking design

Unleash Speed with KOOTU's Wind-Cutting, Ultra-Light Carbon Fiber Frame and Seamless Internal Cable Routing.

Carbon fiber parts display

Carbon fiber frame

Carbon fiber fork

SHIMANO SORA R-3000 DRIVETRAIN

Unleash the full potential of your ride with Shimano Sora R3000 18-Speed Kit – where seamless gear transitions meet unrivaled precision, elevating your cycling experience to new heights of speed and performance.

shimano sora r3000 shifter lever-kootu bike

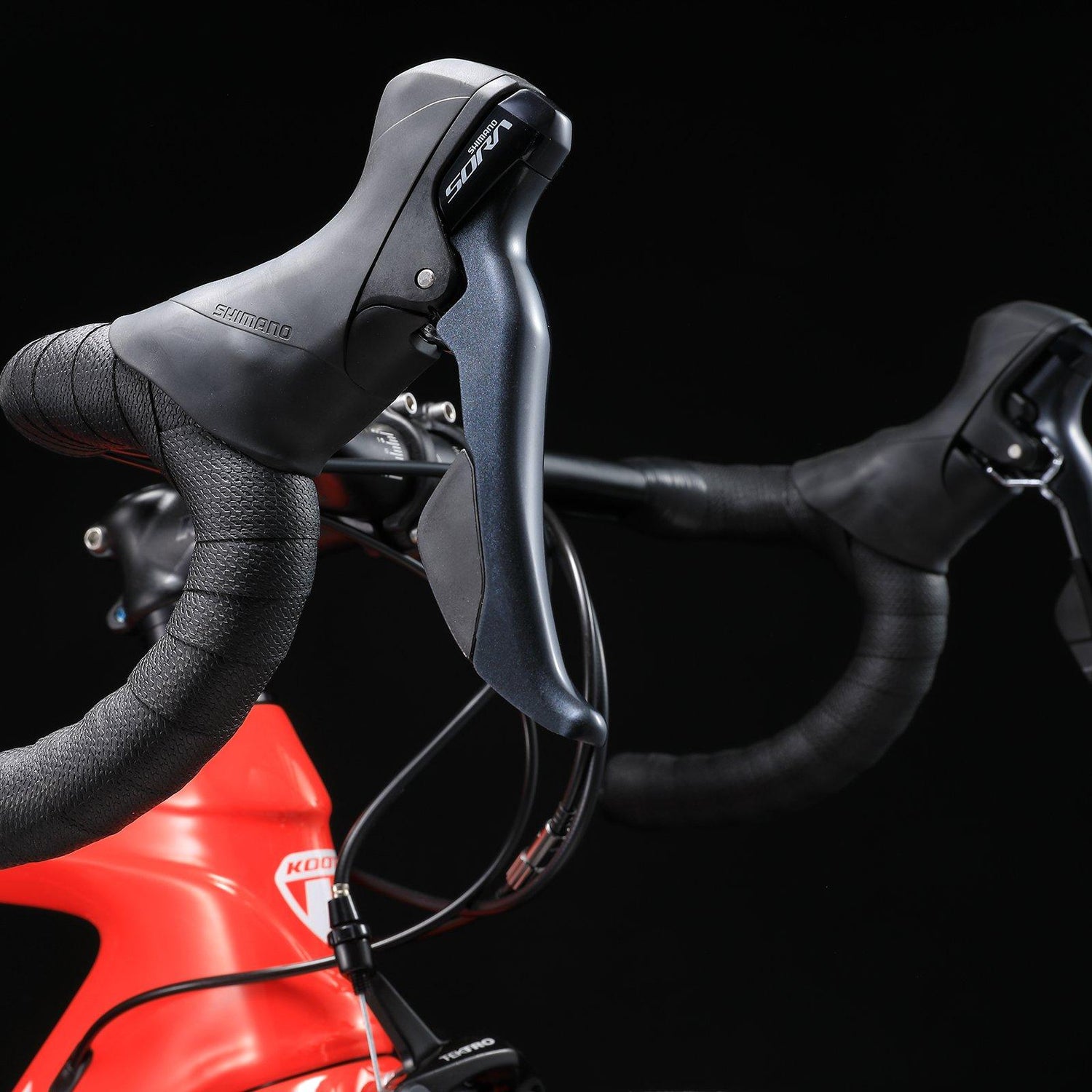

SHIMANO SORA ST-R3000

Unparalleled Control and Effortless Precision in Every Shift, Redefining Your Cycling Experience.

SHIMANO SORA FD-R3000

Elevate your ride with seamless front derailleur performance, delivering smooth and reliable shifting for a cycling experience that exceeds expectations.

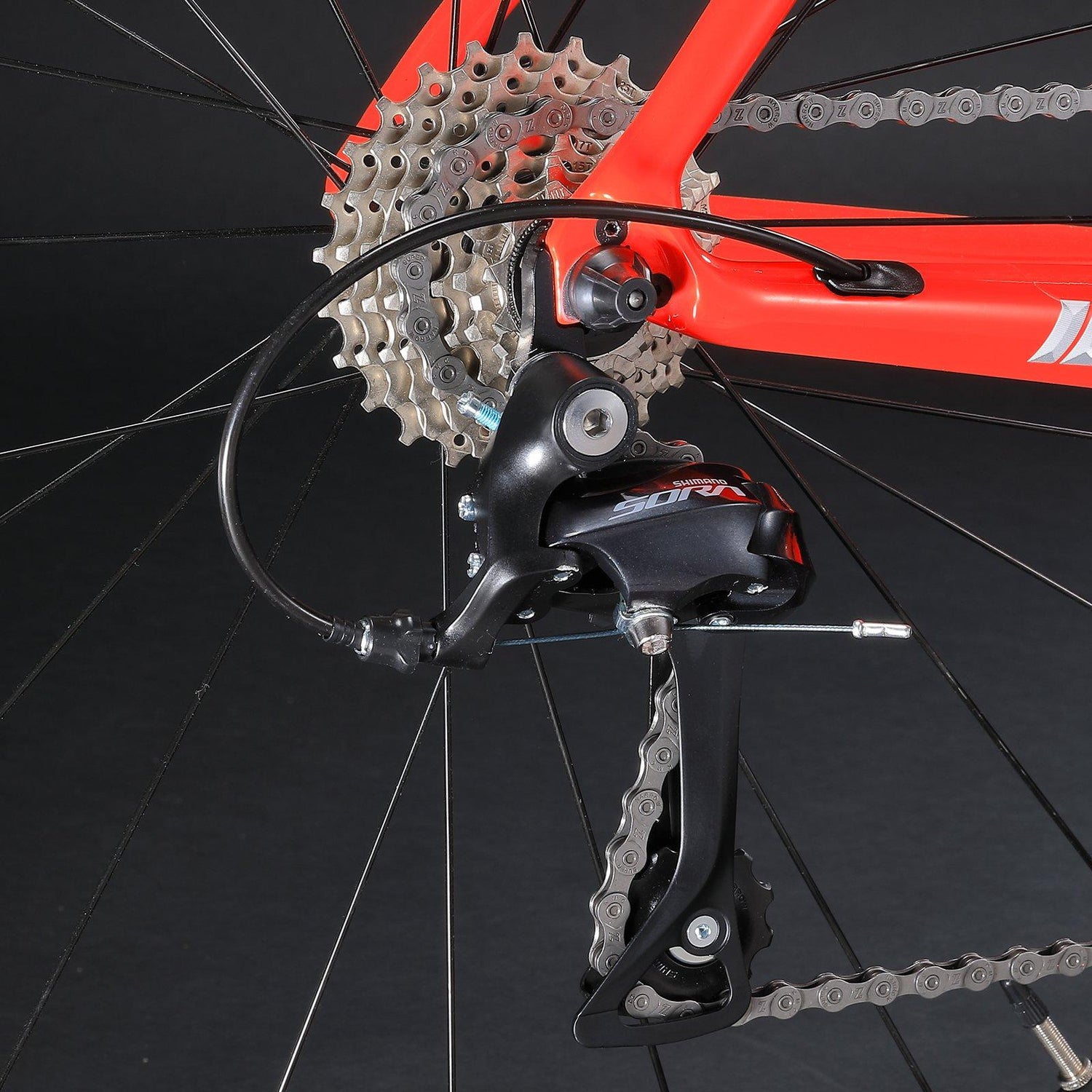

SHIMANO SORA RD-R3000

Unleash the thrill of precision and reliability with every shift, as this rear derailleur seamlessly combines performance and durability for an elevated cycling adventure.

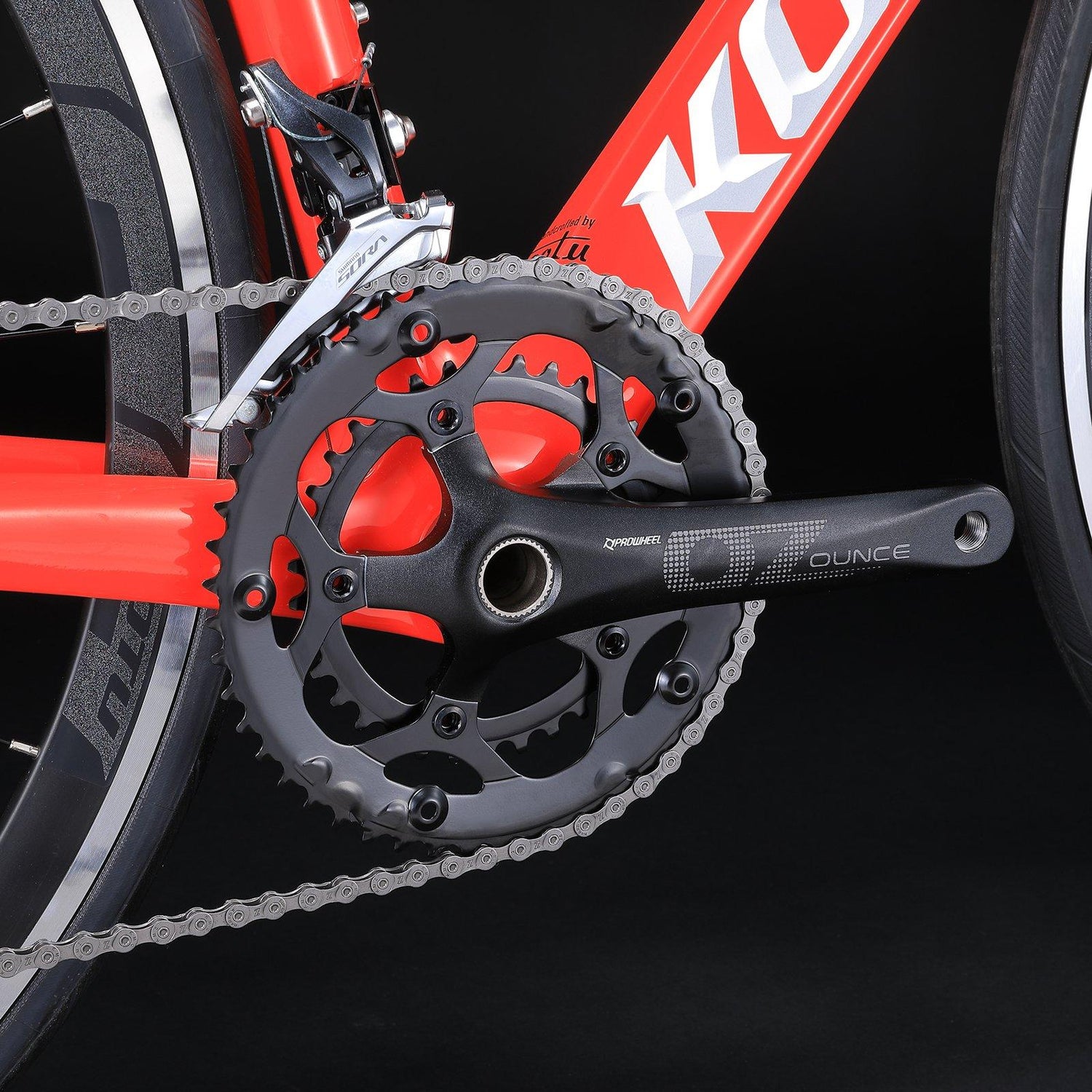

Prowheel 34/50T

Revolutionizing cycling efficiency, our gear set offers a versatile range for diverse terrains, guaranteeing a seamlessly powerful and responsive ride with each pedal stroke.

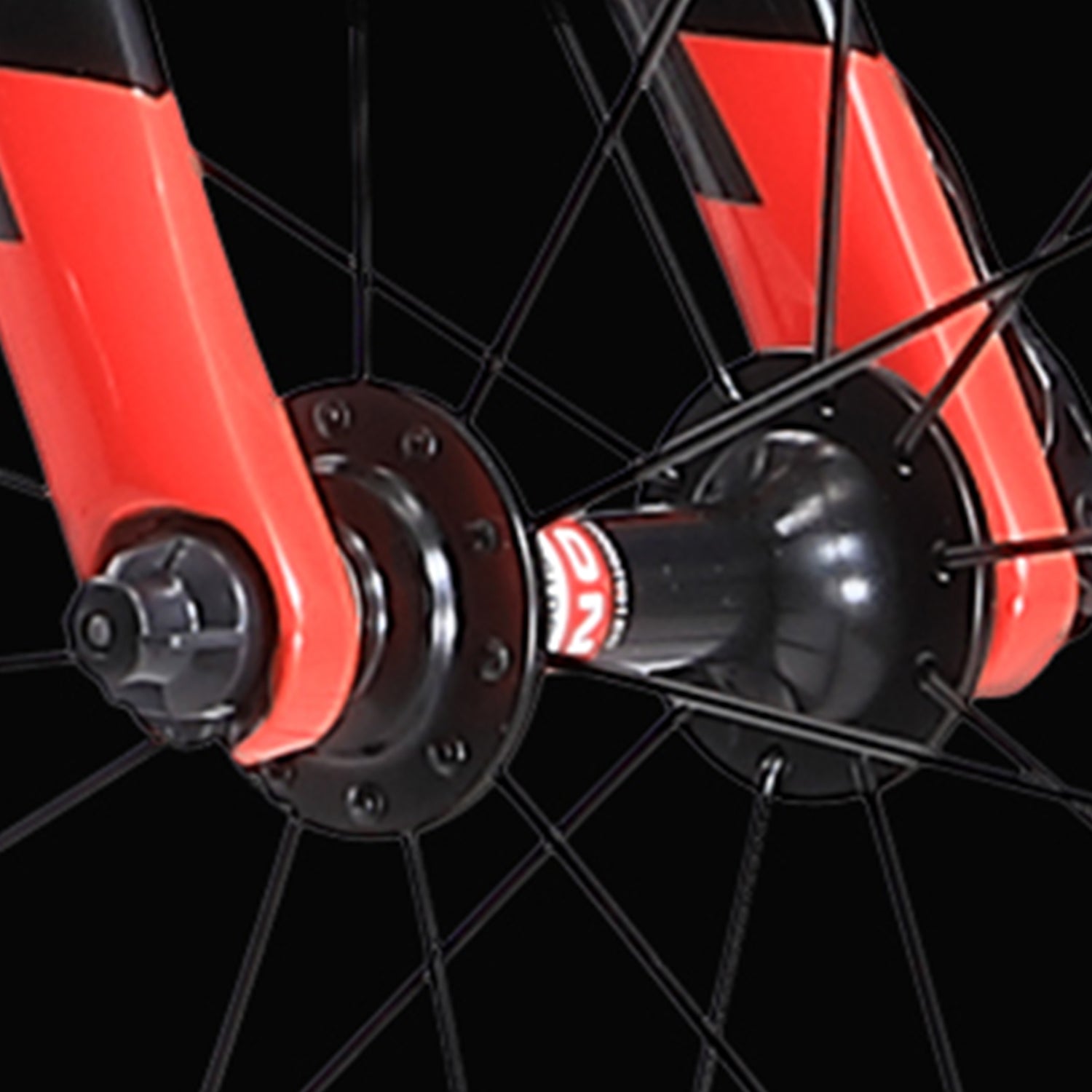

700x25C Aluminum wheels

Elevate your ride with the perfect blend of lightweight agility and durability, ensuring a smooth and responsive cycling experience on any road.

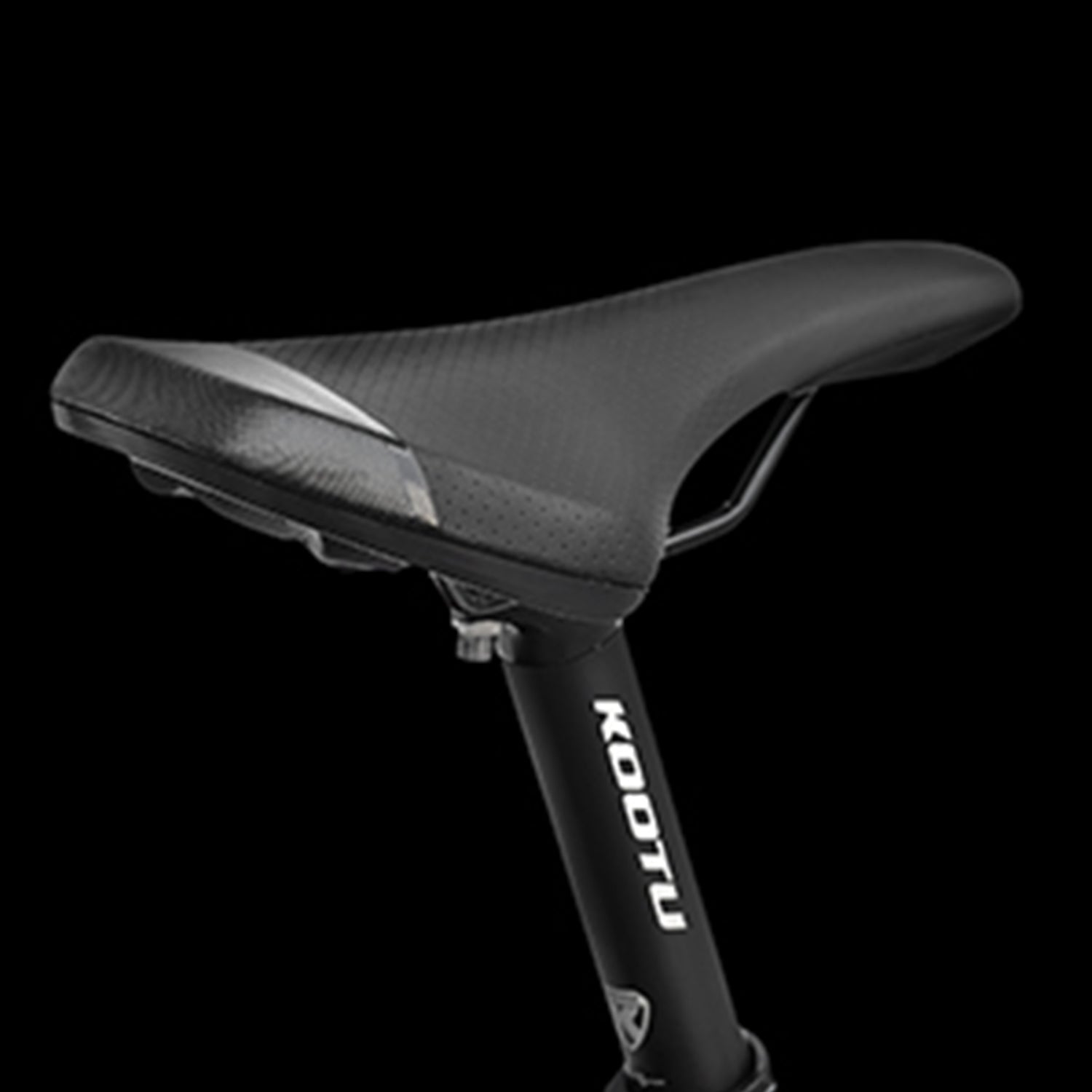

Ergonomic saddle

Redefine comfort and performance with a thoughtfully designed seat that ensures a pain-free and enjoyable ride, allowing you to go the distance with ease.

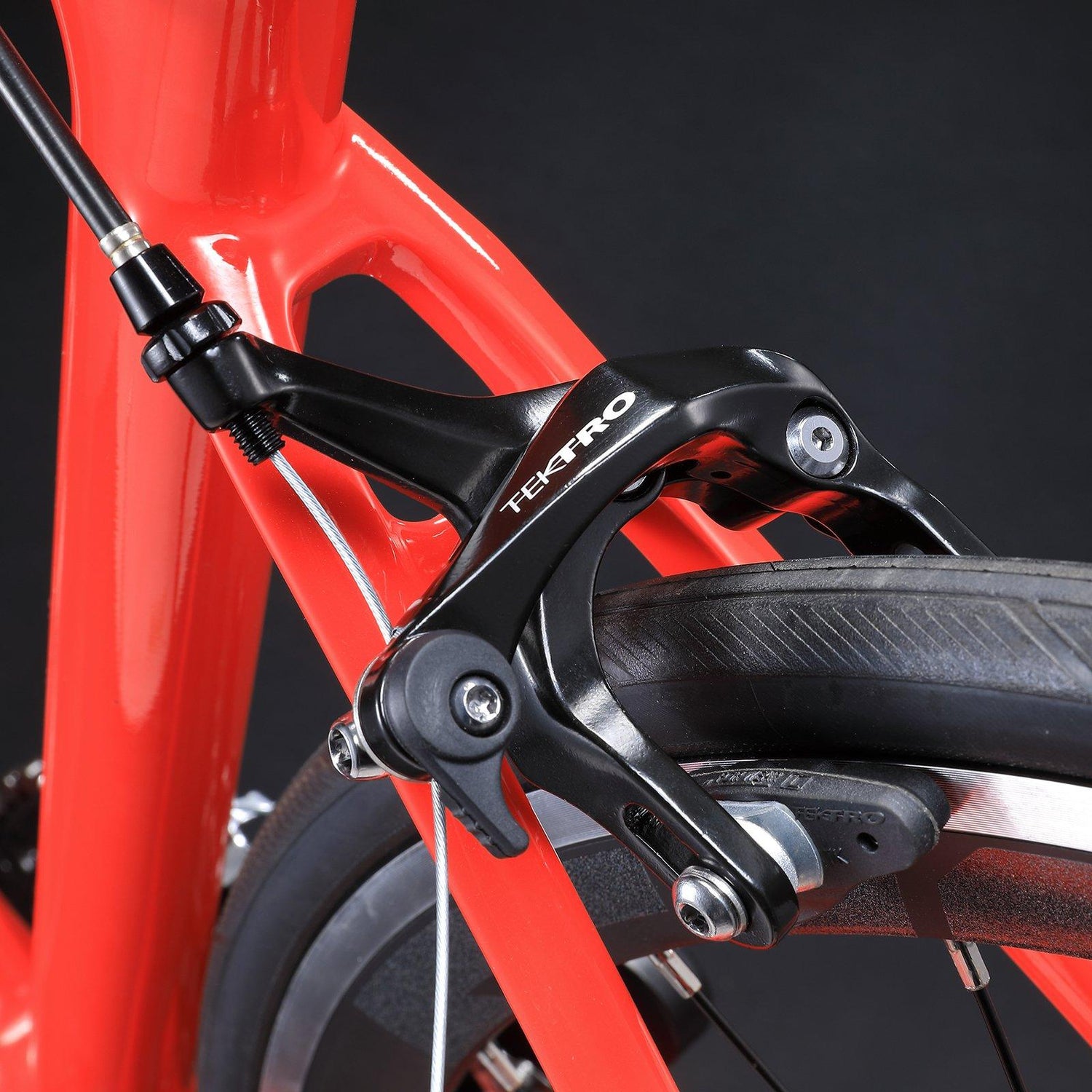

Tektro Rim Brake Precision: Mastering Control, Elevating Safety

Experience the pinnacle of braking excellence with Tektro Rim Brakes. Engineered for precision and reliability, these brakes redefine control, ensuring a safe and responsive ride on every journey.
