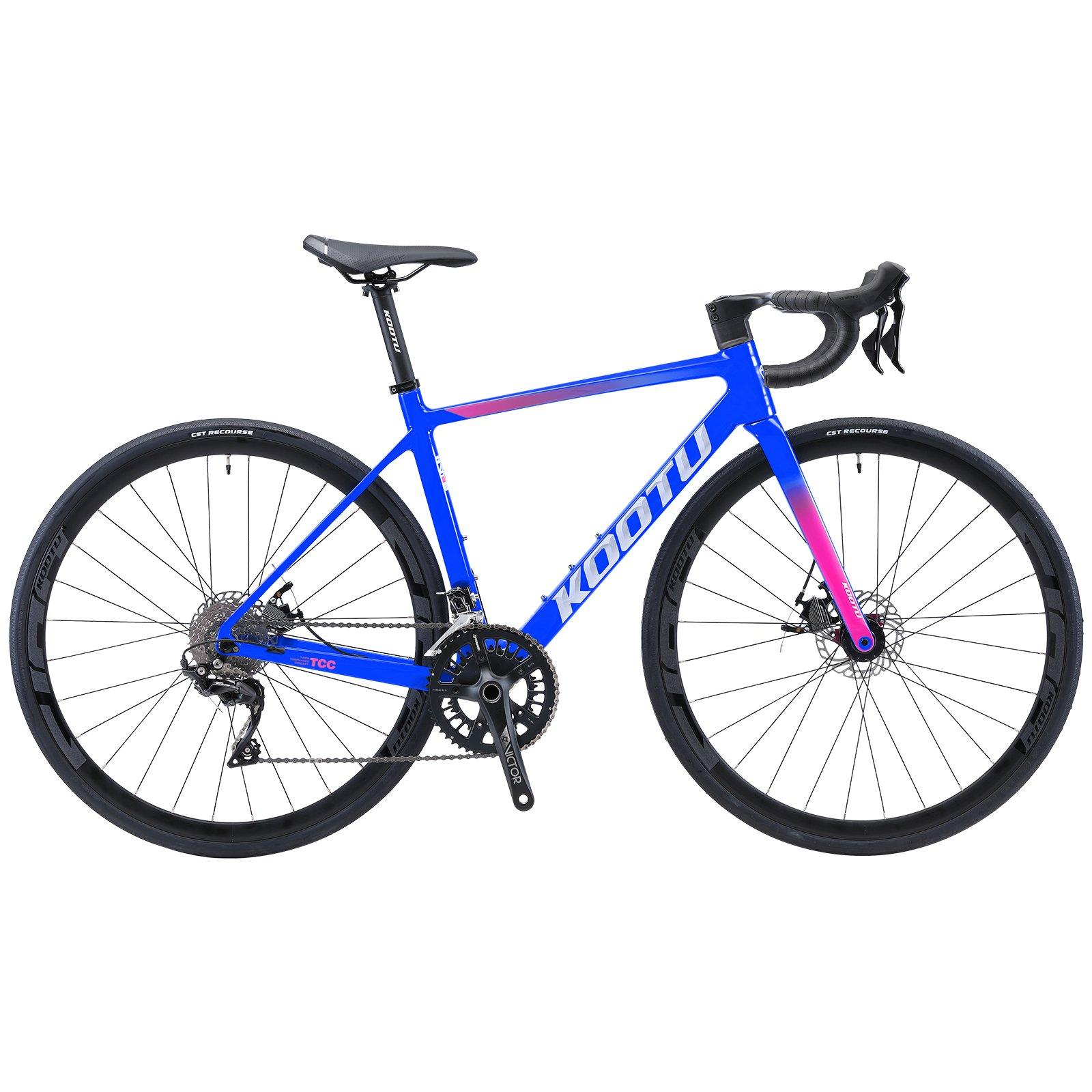

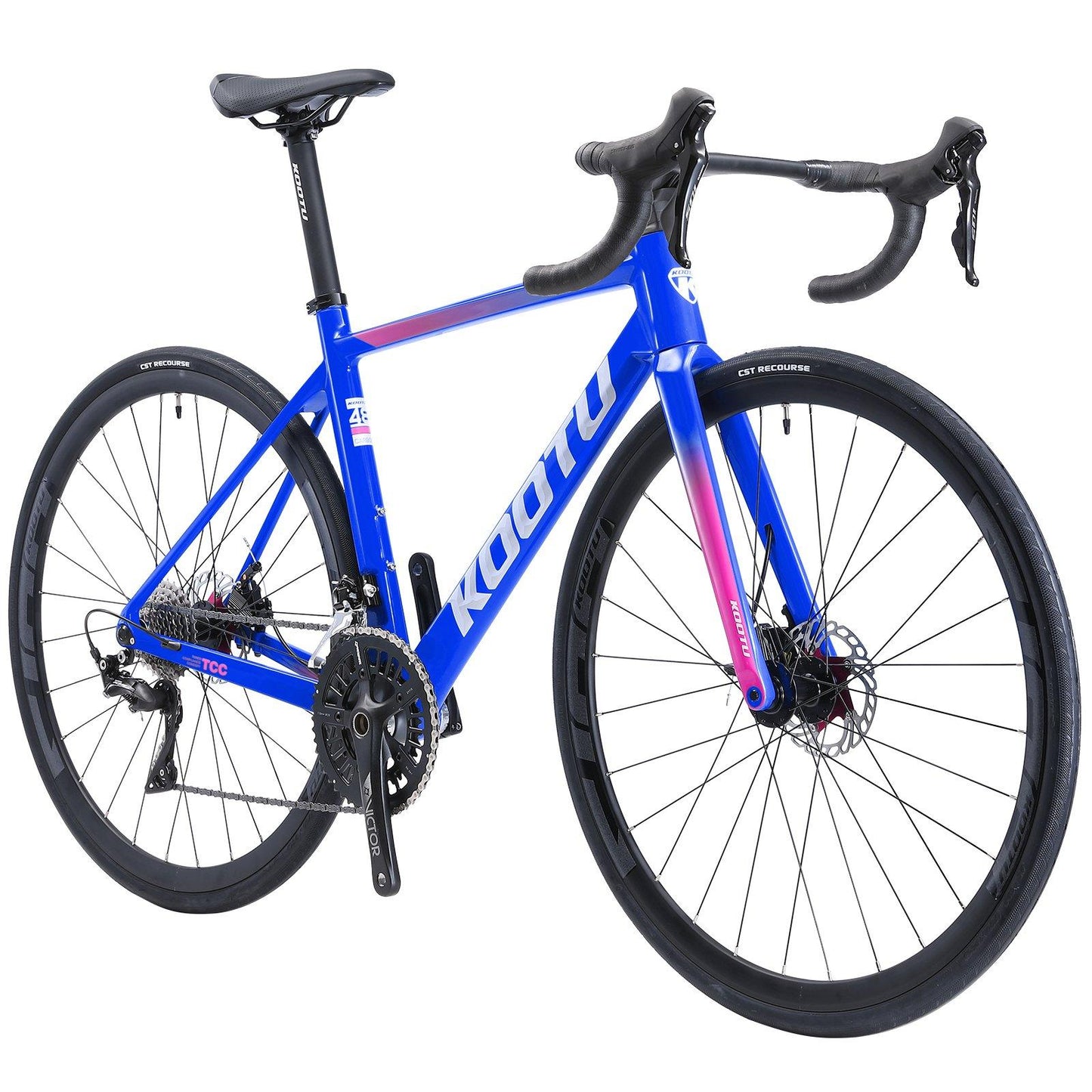

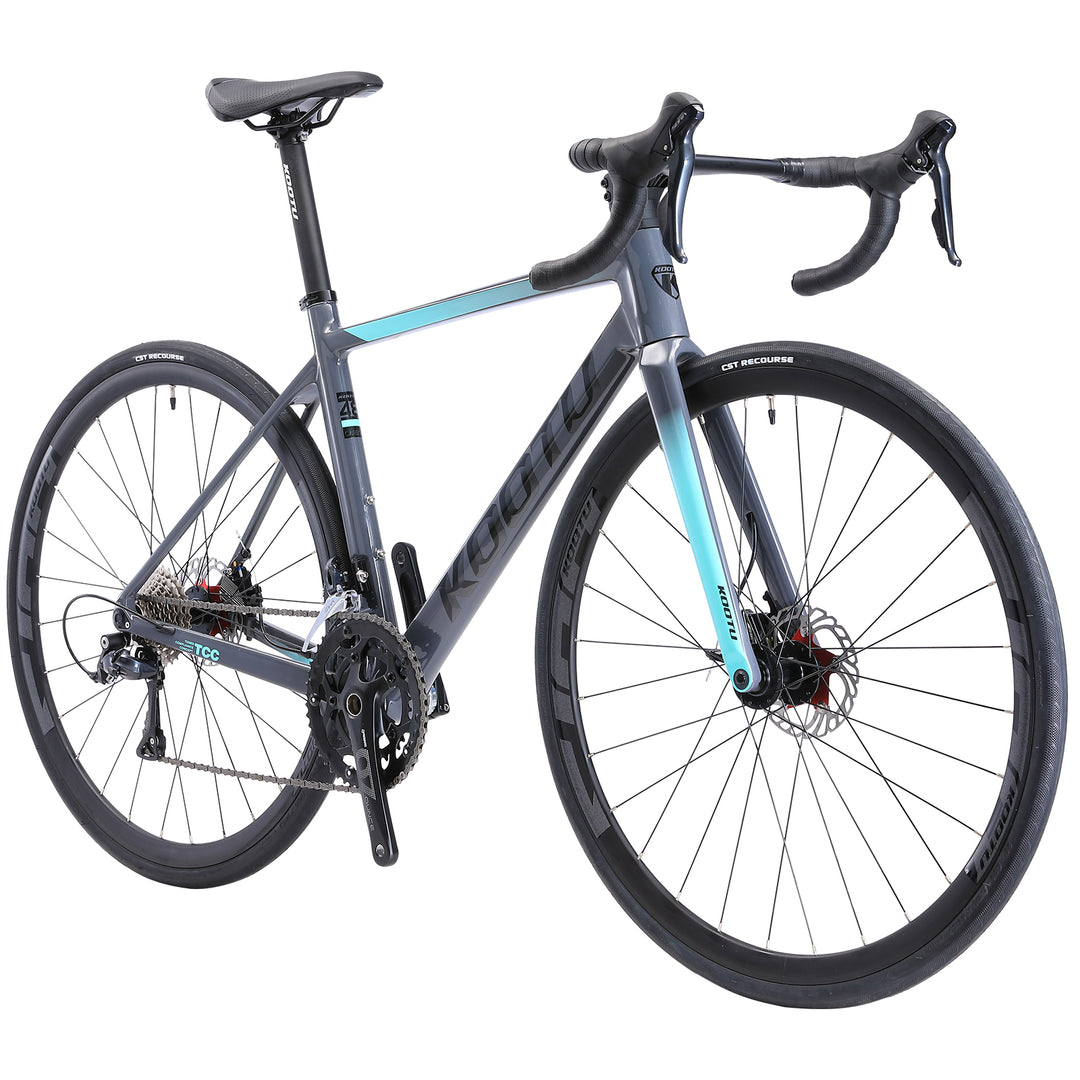

The KOOTU Rider5.0 Carbon Disc Road Bike is designed for cyclists who seek superior performance. Featuring a T800 grade carbon fiber frame and fork, this bike is lightweight yet durable, weighing in at only 9.6kg. The bike is designed in the wind tunnel for maximum aerodynamic performance and includes an integrated handlebar and full internal cable routing. The SHIMANO 105 R7000 11*2=22 speed, mechanical disc brakes, 700*28C CST tires, and KMC chain provide reliable and powerful riding.
- T800 grade carbon fiber frame, fork
- Weight:9.6kg(21.2lb)
- Designed in the Wind Tunnel
- SHIMANO 105 R7000 11*2=22 Speed
- Full Internal Cable Routing
- Integrated handlebar
- Mechanical disc brakes
- 700*28C CST tires
- KMC Chain
KOOTU R12 Carbon Road Bike, 700C Adult Disc Brake Road Bike full Internal Cable Routing Racing Bicycle with integrated handlebar and Shimano 105 R7000 22 Speed

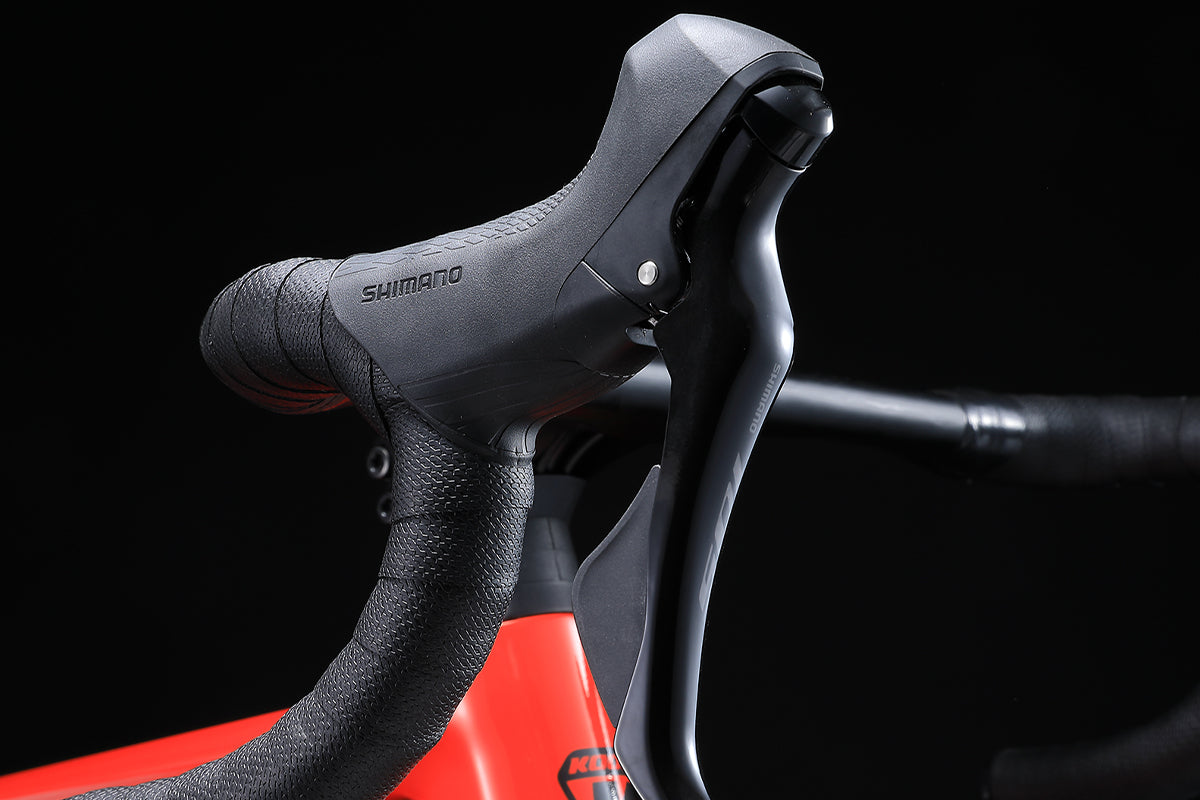

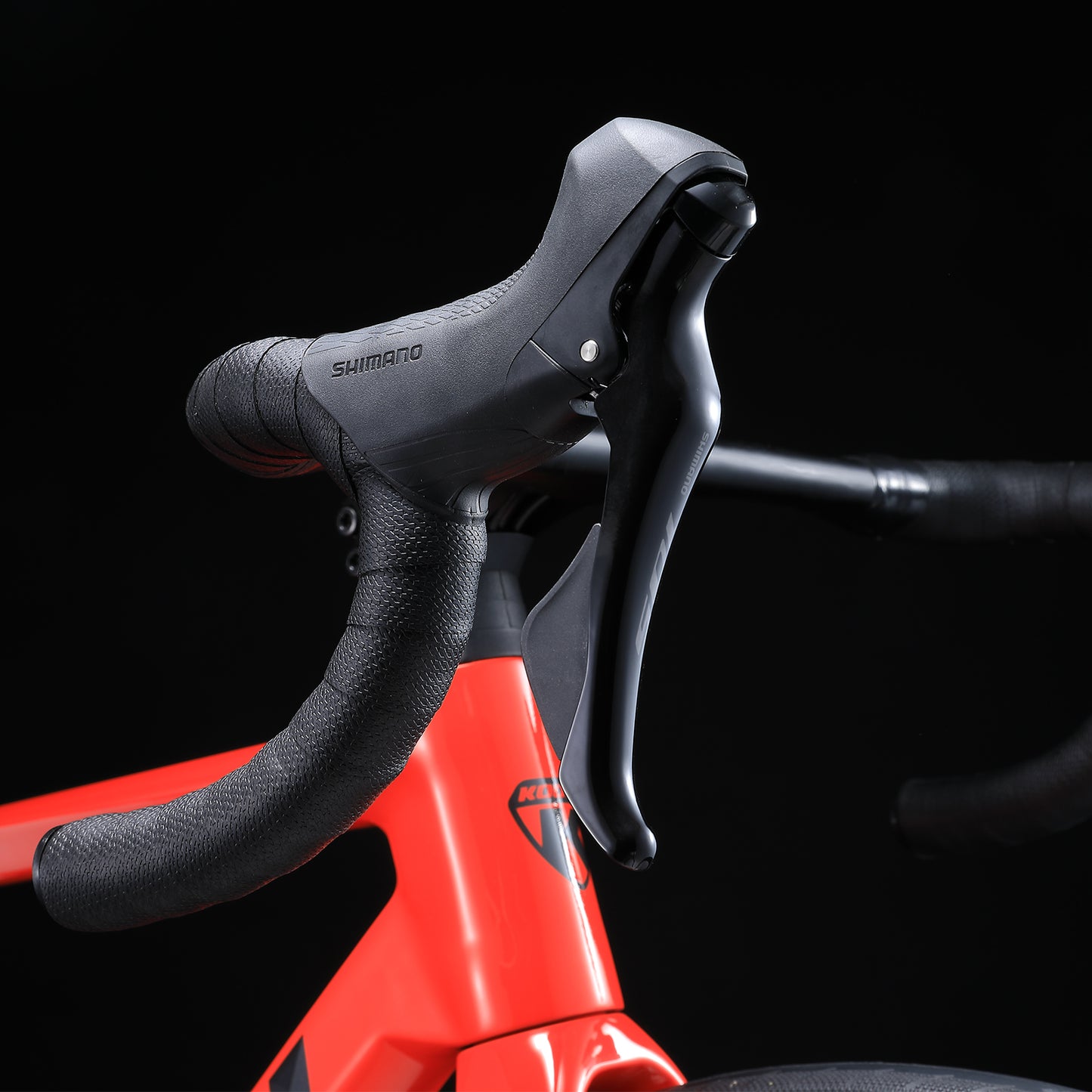

Shimano R7000 105
The redesigned internal transmission device makes the control rod thinner and more ergonomically shaoed, bringing rapid and intuitive shifting and reliable braking.

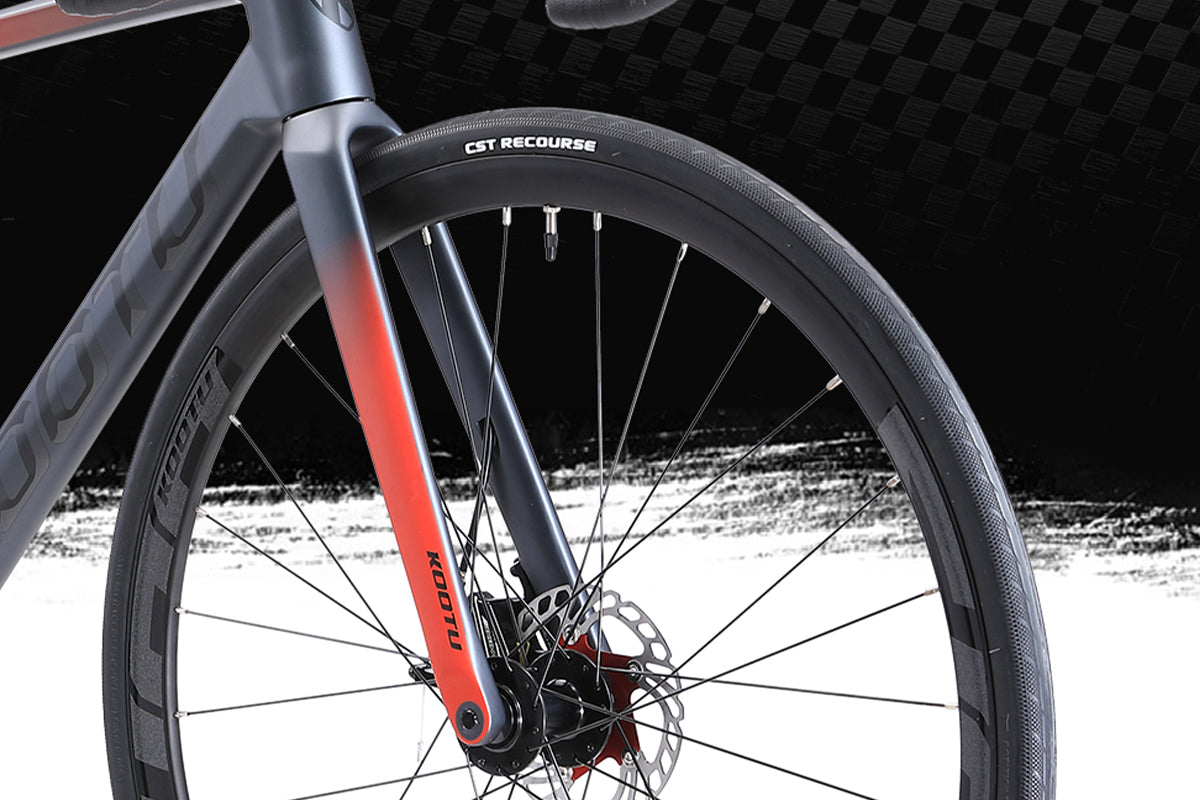

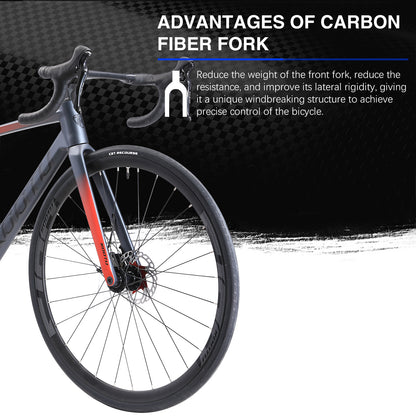

Carbon Fiber Fork
Reduce the weight of the front fork, reduce the resistance,and improve its lateral rigidity, giving it a unique windbreaking structure to achieve precise control of the bicycle.

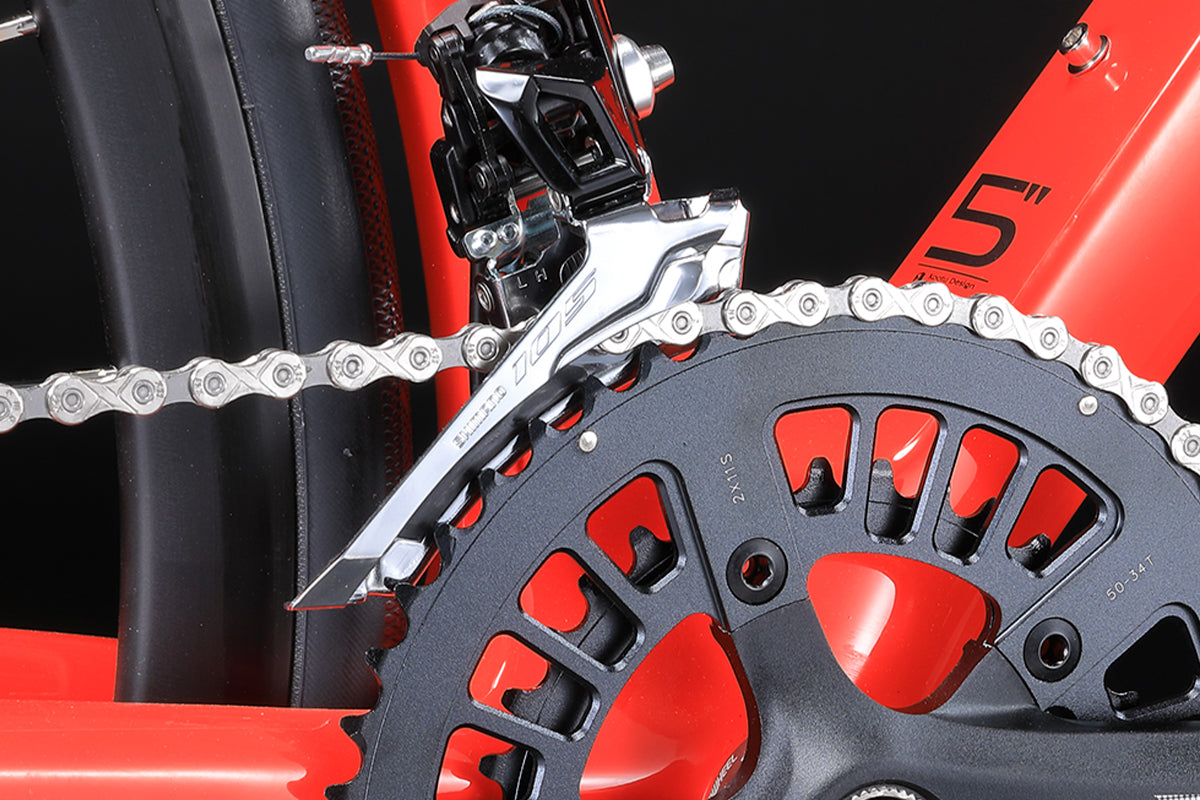

Front Derailleur
The new chain link structure can be easily set and fine-tuned without special tools, which more naturally matches the force curve of the hand, and can be easily shifted.

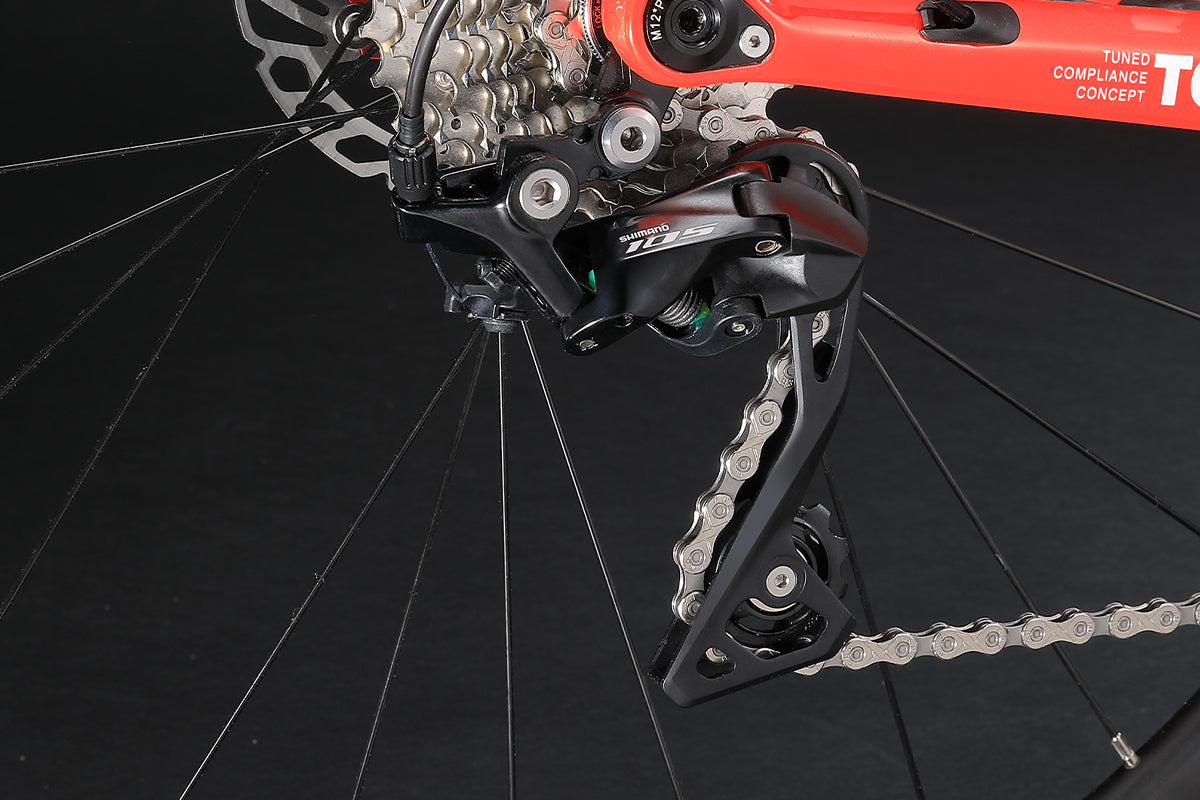

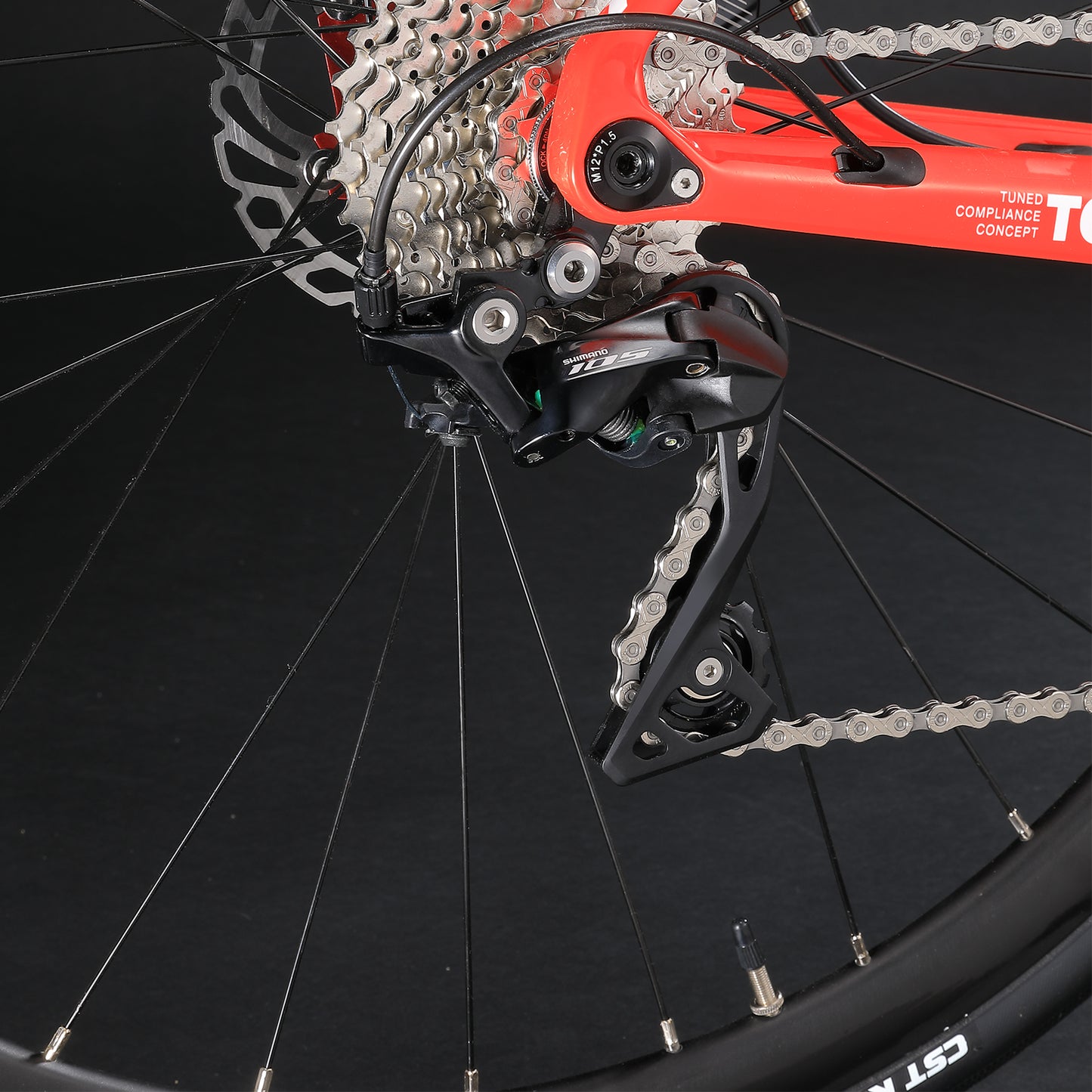

Rear Derailleur
The thin design increases the shifting stability and reduces the collision vulnerability.

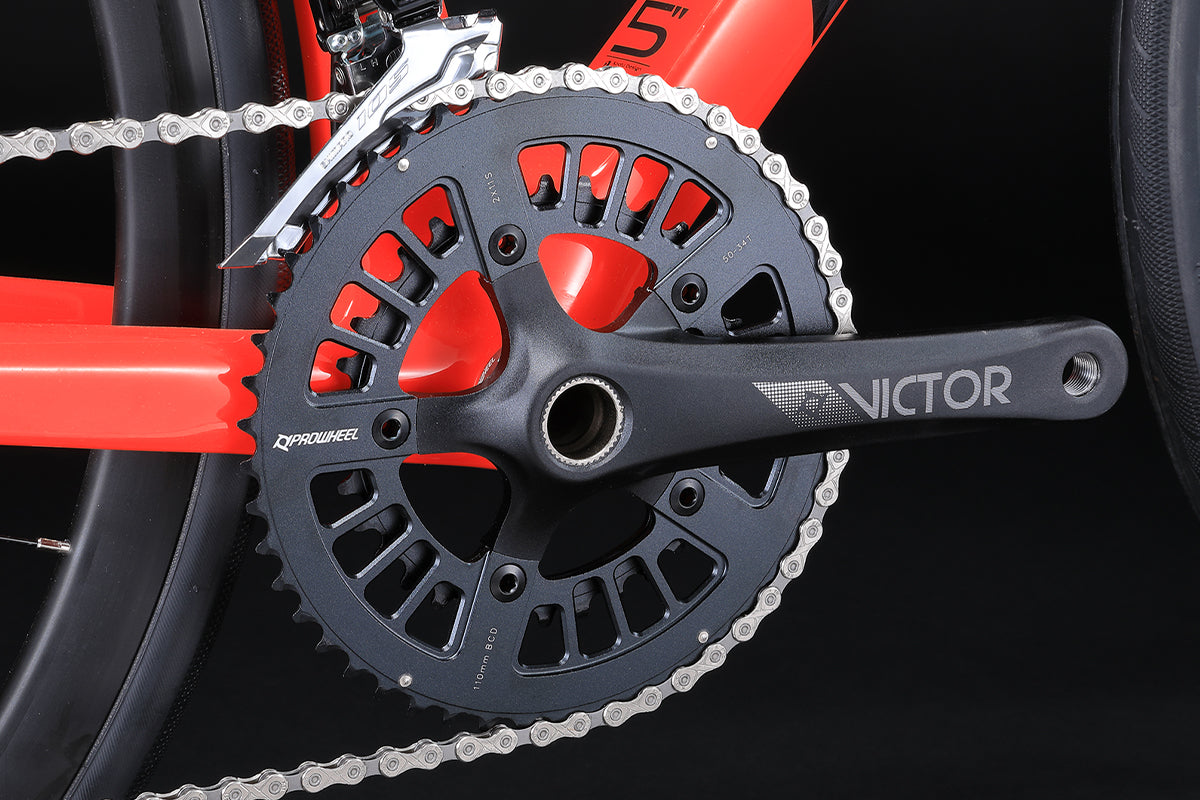

Lightweight Design
The hollow design is obviously helpful for improving the rigidity of cross-legged while reducing weight. The design of the integrated chainring is more controllable, and the riding is more powerful.

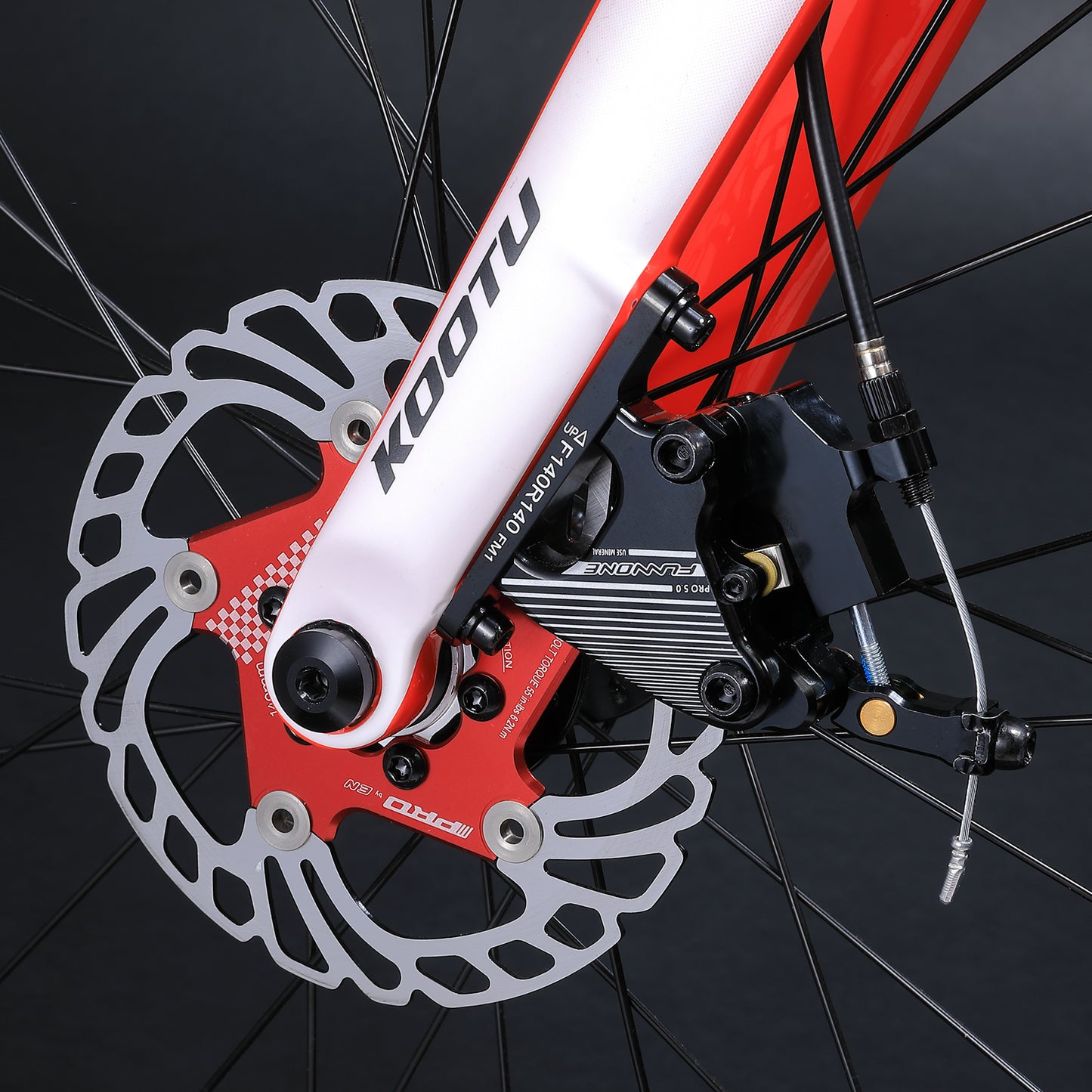

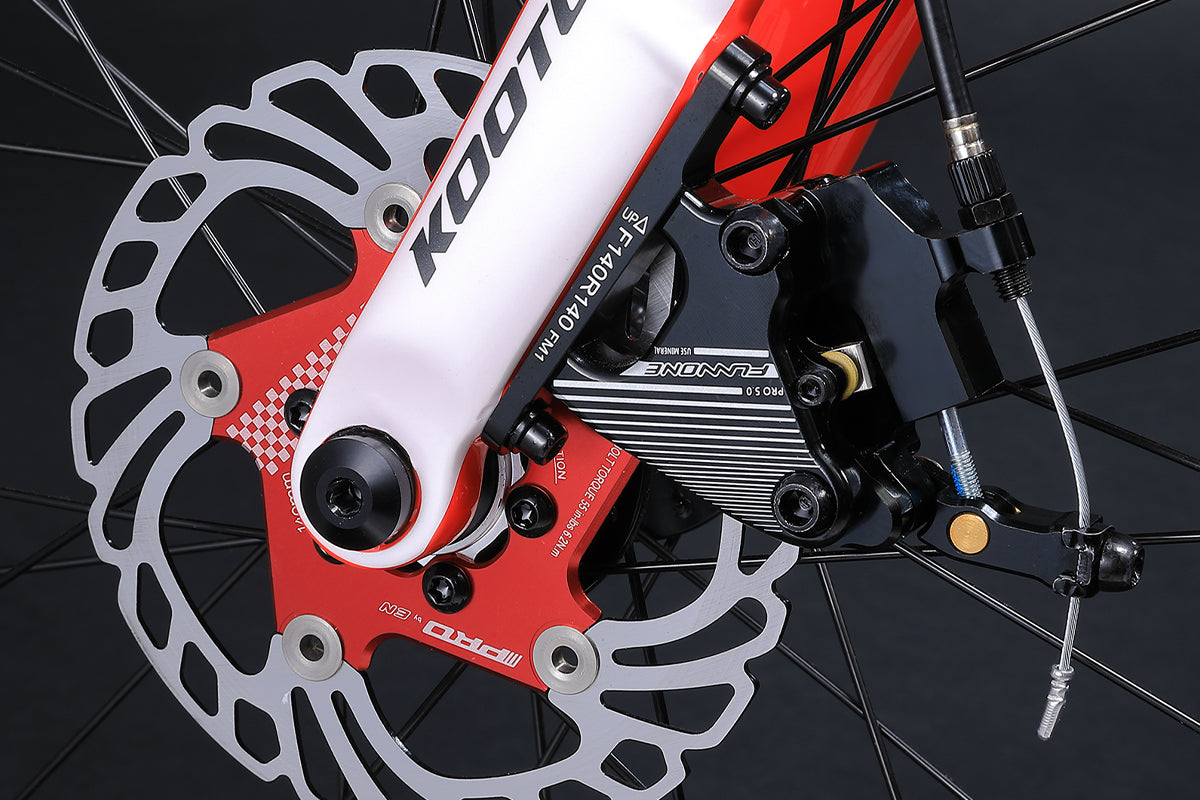

Floating Disc
The unique rivet link not only achieves a lightweight design, reduces heat transfer, and avoids brake deformation.
Collapsible content
Technical Specifications
| Frame | T800 grade carbon fiber |
| Fork | T800 grade carbon fiber, 700C*100 |
| Weight | 9.62kg (21.2lb) The actual weight will fluctuate slightly due to the size difference |
| Handlebar | Aluminum, Integrated 420*31.8mm |
| Seat post | Aluminum 31.6mm*350mm |
| Wheels | 700*1.5,14G*28H |
| Hubs | XY, thru-axle system: M12*100 /M12*142 |
| Tires | CST, C1808-700C |
| Headset | 28.6*41.8-52*39.8mm |
| Road bike straps | DD-XSJ PU+EVA 2150*30*3 |
| Crankset | PROWHEEL VICTOR-621C-TT 34/50T*170mm |
| Brake rotor | AR18 140MM |
| Chain | KMC X11 |
| Shift lever |
SHIMANO 105 ST-R7000-L + SHIMANO 105 ST-R7000-R |
| Front derailleur | SHIMANO 105 FD-R7000-L |
| Rear derailleur | SHIMANO 105 RD-R7000, GS |
| Flywheel | CS-R9011 11-30T |
| Brakes calipers | PRO A8000 ED |
| Wheelset | 700*14G*28H F/V 30mm depth, disc brake |
| Saddle | YBT Road Bike Saddle |
| Pedals | SANYUN LP-658A 9/16'' (free include) |
| Accessories | Multi Assemble tools, User Manual0 |
The standard brake setting is Left hand control front brake, Right hand control rear brake, if you want to change, please let us know.
Size & Geometry
| Size | cm | ft |
| 50cm | 160-175cm | 5'2''-5'7'' |
| 52cm | 175-180cm | 5'7''-5'9'' |
| 54cm | 180-190cm | 5'9''-6'2'' |
For reference only, for specific size requirements, please check the frame size drawing for measurement before placing an order.
