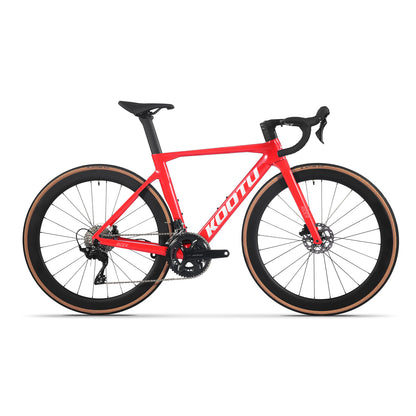

Full Carbon|Shimano 105 2*12|Hydraulic Disc Brakes
$1,859.00
/
Tax included. Shipping calculated at checkout.
Size
Color
  • Free shipping & Home delivery
  • Low stock - 9 items left
  • Inventory on the way

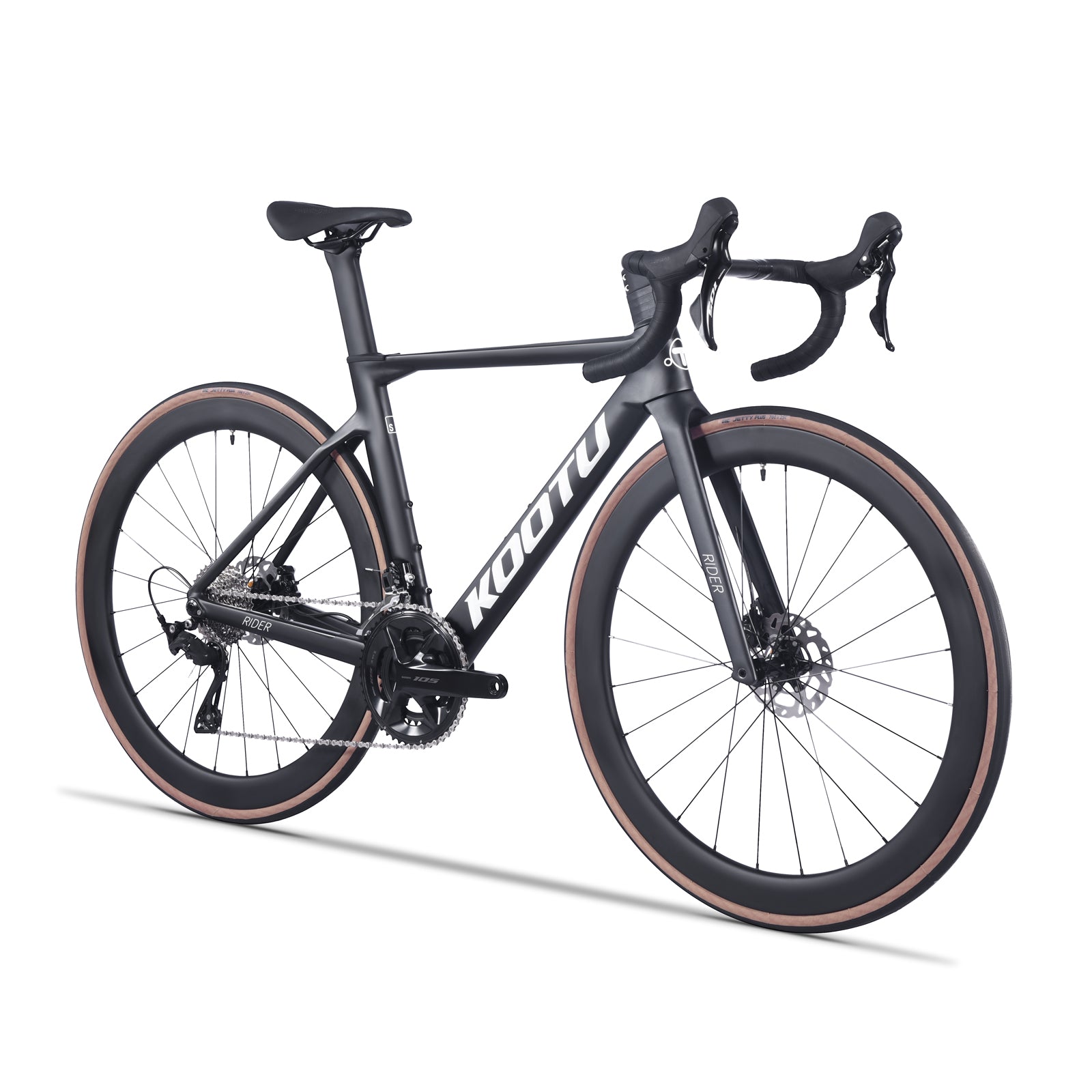

Experience the KOOTU Rider 7.2 - a seamless fusion of cutting-edge design and performance. Crafted with T800 carbon fiber, its frame, front fork, seat post, handlebar, and wheelset ensure unparalleled strength and weight reduction. Powered by Shimano 105 R7120 24-speed drivetrain for smooth shifts and efficient pedaling. Enhanced safety with hydraulic disc brakes. Perfect for the avid cyclist looking for precision and style

  • T800 carbon fiber frame,fork,seatpost,handlebar,wheelsets
  • Weight: about 8.3kg (Weight varies by size）
  • Full integrated cable routing design
  • Aerodynamic frame
  • SHIMANO 105 R7120 24speed groupset
  • 700*25C IRC Tires
  • Free pedals include
  • Hydraulic disc brake
  • 90%pre-assembled

Pairs well with
Model KOOTU Rider 7.2 R7120 24Speed
Frame  T800 carbon fiber, 700C*frame size*142
Fork T800 carbon fiber ,700C*100

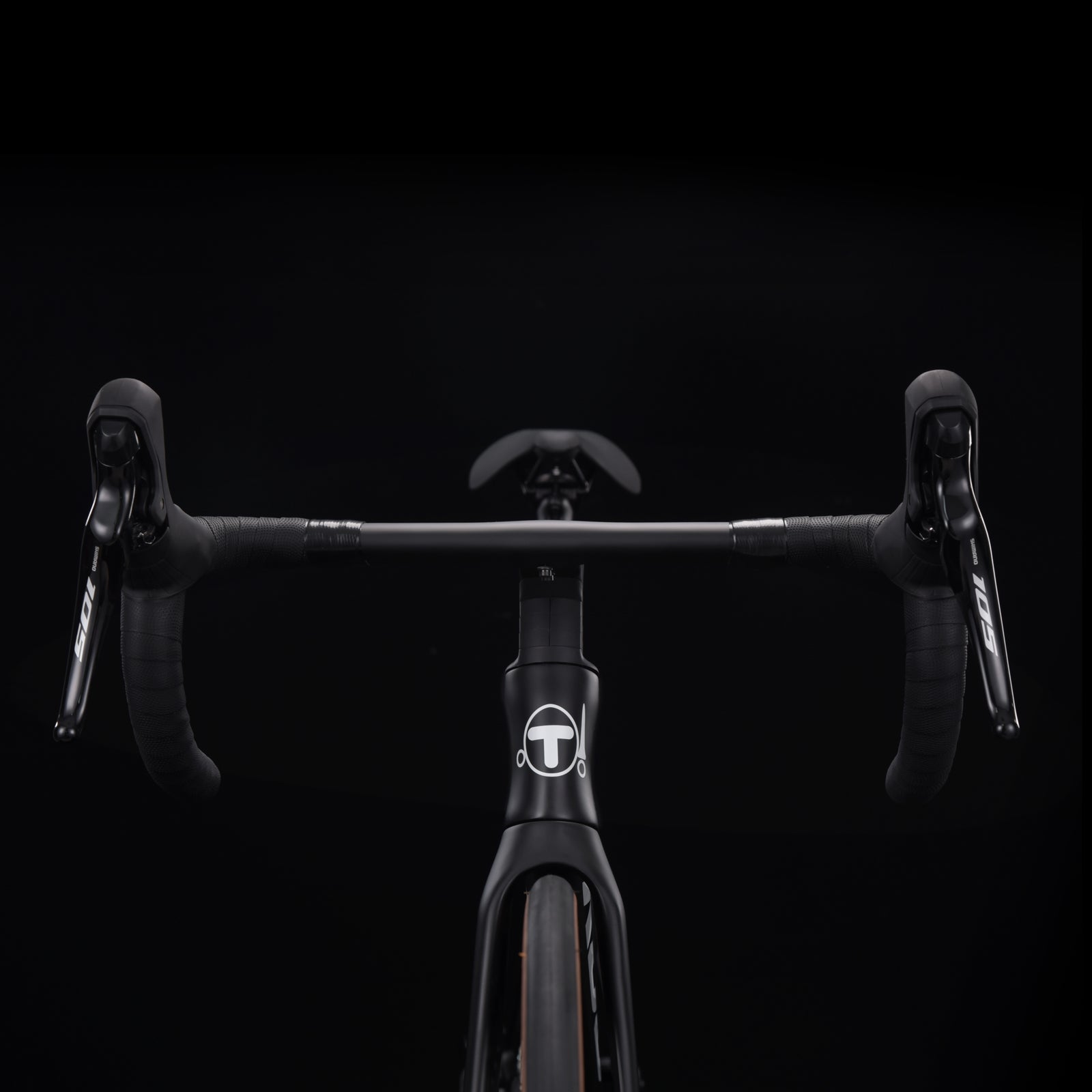

Handlebar T800 carbon fiber , 400*31.8
Seatpost T800 carbon fiber ,350MM
Wheelset T800 carbon fiber ,700C*28H F/V,50 depth
Hubs Aluminum,Front :MTF091001 14G*24H M12*100 .Rear:MTR091002 14G*24H M12*142  11S
Tires 700*25C IRC 60TPI
Crankset SHIMANO FC-R7100.105 12-SPEED. 2. 170MM, 50-34T
BB BB92PM,press in
Chain SHIMANO CN-M6100,110LINKS FOR LG 12S SPEED
Shifter levers SHIMANO 105 ST-R7120(L),BR-R7170(F) FOR 140MM (W/FIN)800MM, ST-R7120(R), BR-R7170(R)FOR25MM MNT,(W/FIN), 1500MM
Front derailleur SHIMANO 105 FD-R7100. 12-SPEED
Rear derailleur  SHIMANO 105 RD-R7100. 12-SPEED
Flywheel SHIMANO CSHG71012.12-SPEED, 11-12-13-14-15-17-19-21-24-28-32-34T
Rotors Pro 140MM
Pedals Aluminum,LP-B921,9/16(free include)
Saddle YBT

R21 frame geometry

Parameter 440(XS) 470(S) 510(M) 540(L) 560(XL)
Recommend Height 155 - 160cm (5‘1’‘ - 5’3’‘) 160 - 170cm (5‘3’‘ - 5’7’‘) 170 - 178cm (5‘7’‘ - 5’10’‘) 178 - 185cm (5‘10’‘ - 6’1’‘) 185 - 199cm (6‘1’‘ - 6’6’‘)
A Seat Tube (mm) 443.3 471.5 511.5 541.5 562
B Top Tube (mm) 505 520 535 550 559
C BB Drop(mm) 70 70 70 70 70
D Chainstay(mm) 410 410 410 410 410
E Scat Angle (°) 73.5° 73.5° 73.5° 73.5° 73.5°
F Head Angle(°) 71.2° 71.2° 71.4° 72° 72°
G Front Center(mm) 555.8 570.3 585.5 594.5 604
H Head Tube Length (mm) 95 97.5 122.5 144.5 164.5
I Fork Offset(mm) 45 45 45 45 45
J Reach (mm) 358.4 370 378 387 390.3
K Stack (mm) 509.3 516.6 534 554.5 580.5
L Frok Lenght(mm) 373 373 373 373 373
M Wheelbas (mm) 966.6 969.9 984.8 994.3 1004
N Standover(mm) 734 753 787 807 826
Shipping to
Average Delivery Time
Bikes Shipping Cost
United States
6-12 business days
Free
Australia
7-15 business days
Free
Asia
6-12 business days
Free
Middle East
10-15 business days
Free
Canada
10-15 business days
Free
Mexico
10-15 business days
Free
Israel
6-10 business days
$200
India
6-12 business days
$150
Brazil
20-35 business days
$380
Europe
12-18 business days
Free

Shipping Information

  • Once your order has been placed, we'll send you a confirmation email with your order number.
  • When your order has been shipped, we'll send you an email with a tracking number and a link that you can track it online.
  • No Tariff will be required to our customers on the Standard shipping methods.

Processing Time

After we received your order. It usually takes 2-3 business days for production, assembly, debug, packing, and sent out (Some new models may take 10-13 working days). Because we want to make sure the customer gets the bike 90% pre-assembled.

14-days Free replacement: contact customer service for missing and critically-damaged parts or other quality-related issues. Our customer service team will help to arrange the replacement.

Our policy lasts 14 days. If 14 days have gone by since delivery, unfortunately we can’t offer you a refund or exchange.

Watch the video:how to assemble the kootu integrated carbon road bike

Watch the manual: Download

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Q:What is the difference between Rider 7.1 and Rider 7.2?

A:The difference between the Rider 7.2 and Rider 7.1 is that the Rider 7.2 features a SHIMANO FC-R7100.105 crankset, while the Rider 7.1 has a Prowheel crankset.

Q:What is the tire pressure on this bike?

A:85-120PSI

Q:Is this bike all carbon fiber?

A:The frame, fork, seatpost, wheelset and handlebar of this bike are made of carbon fiber.

Q:Does this bike come with tubes or tubeless?

A:The bike comes with tubes, so if you want to go tubeless, please go to a bike store and replace the entire wheelset after you recive the KOOTU bike.

Q:What is the maximum size of tire this bike is compatible with?

A:The maximum compatible tire size for this bike is 28C.

Q:What is the torque of the KOOTU bicycle screws?

A:1.Front/Rear Hub Axle：8-12N.m
2.Brake Caliper Fixing Bolt: 5N.m
3.Saddle Clamp Bolt: 6-8N.m
4.Hanger Core: 6-10N.m
5.Front Derailleur Fixing Bolt: 5-7N.m
6.Stem Clamp Bolt: 5-8N.m
7.Crankset Fixing Bolt: 12-14N.m
8.Chainring Fixing Bolt: 12-16N.m
9.Rear Derailleur Hanger Pivot Bolt: 8-10N.m
10.Bottle Cage Bolt: 4N.m
11.Bike Computer Mount Fixing Bolt: 4-5N.m
12.Stem Top Cap Bolt: 4-5N.m
13.Front/Rear Disc Rotor Locking Nut: 40N.m
14.Derailleur Cable Tension Bolt: 5-7N.m
15.Seatpost Clamp: 5-10N.m
16.Shifter Clamp Bolt: 6-8N.m
17.Rear Derailleur Hanger Fixing Bolt: 1-2N.m
18.Threaded Bottom Bracket: 30-50N.m

full carbon road bike|shimano 105 r7120 groupset|rider 7.2

Professional design, excellent safety - your exclusive cycling partner

Our bicycle frames are carefully crafted by a professional design team. We pursue not only quality, but also unique design and superior safety performance. Our bicycle frames are user-oriented, focusing on details and user experience, bringing you an unparalleled riding experience. Many bicycles on the market adopt a universal frame design for cost reduction, but we focus on providing you with high-quality, personalized options.

Airflow Path Design of Bicycle Frame

The design of the airflow path of the bicycle frame not only improves the aerodynamic performance, making the ride smoother, stable, faster, and comfortable, but also saves effort

aerodynamic frame|rider 7.2 aerodynamic frame|rider 7.2

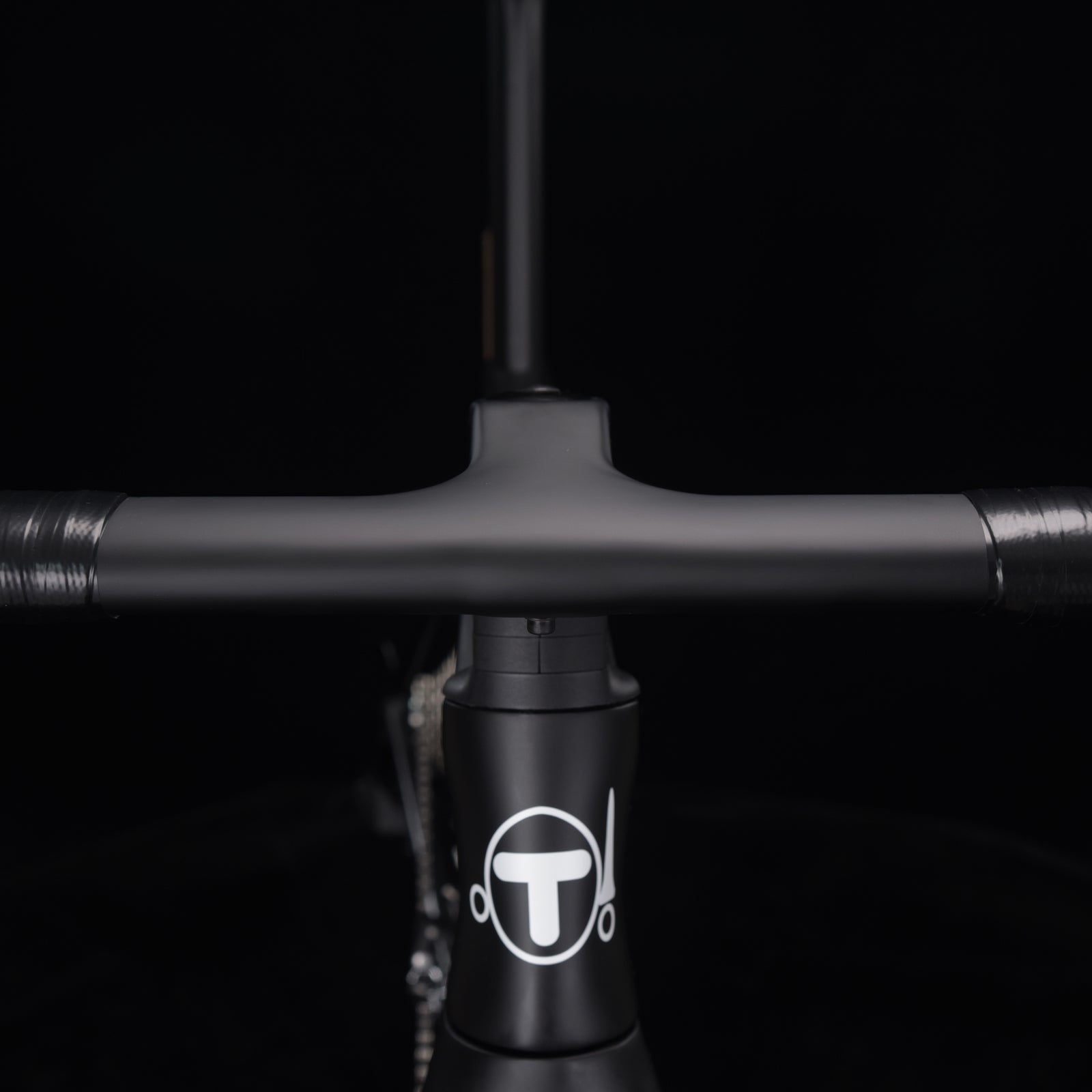

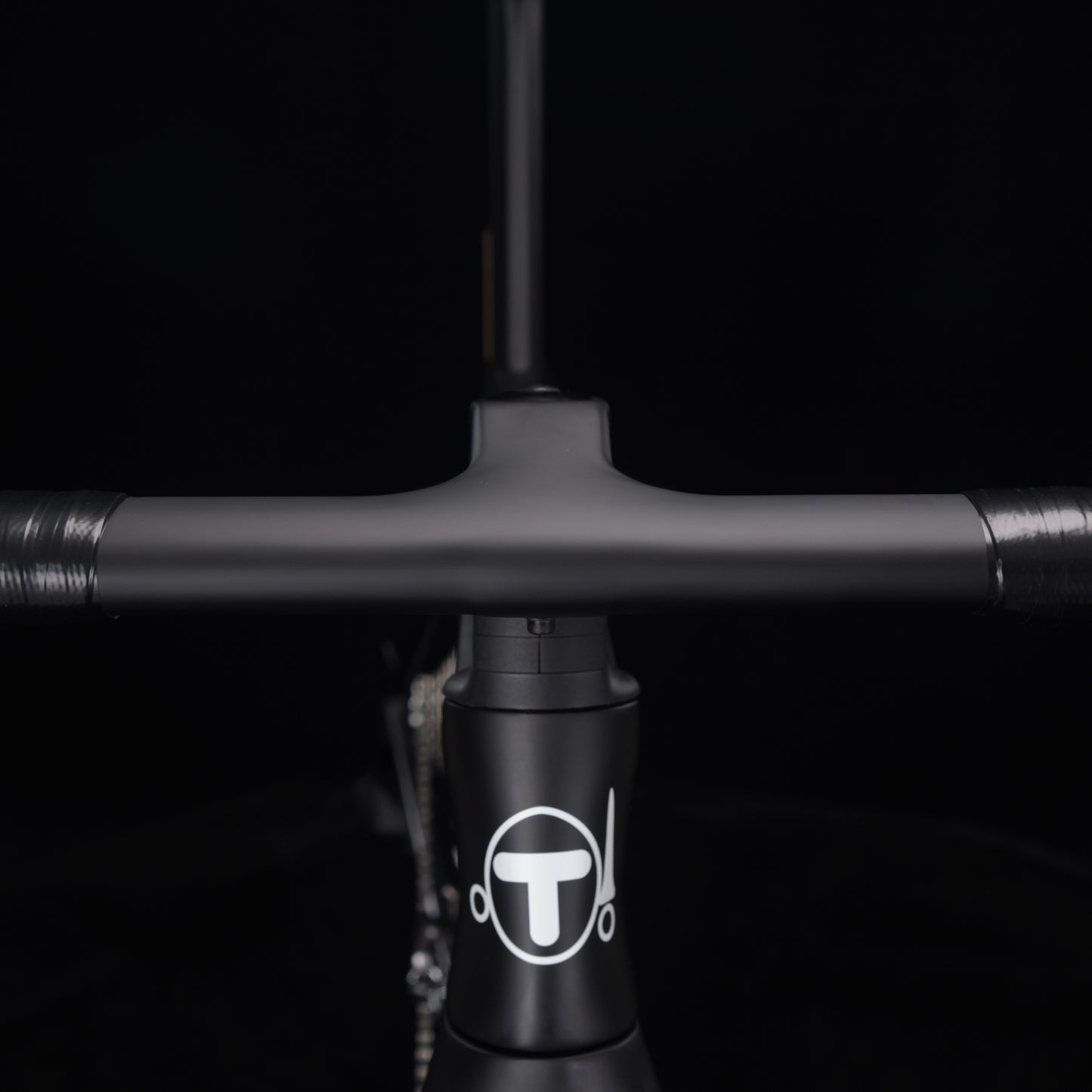

Clean and stylish full hidden line design

The fully internal wiring design makes it clean and tidy, and also avoids the aging phenomenon of brake wires exposed to the outside for years, effectively reducing wind resistance during cycling

Unique wind-breaking bicycle frame design

The closer the distance between the wheelset and the frame, the less air turbulence and vortex formation, thereby reducing wind resistance and improving the speed and efficiency of cycling

carbon fiber vs other material-kootu bike carbon fiber vs other material-kootu bike

"Actual application parts of carbon fiber and its advantages"

Carbon fiber is not only lightweight, high strength, and corrosion resistant, but its low thermal expansion rate can protect bicycle components. When riding, it can improve performance and handling, while also providing better safety and comfort, which is unmatched by other materials.

shimano 105 crankset|rider 7.2

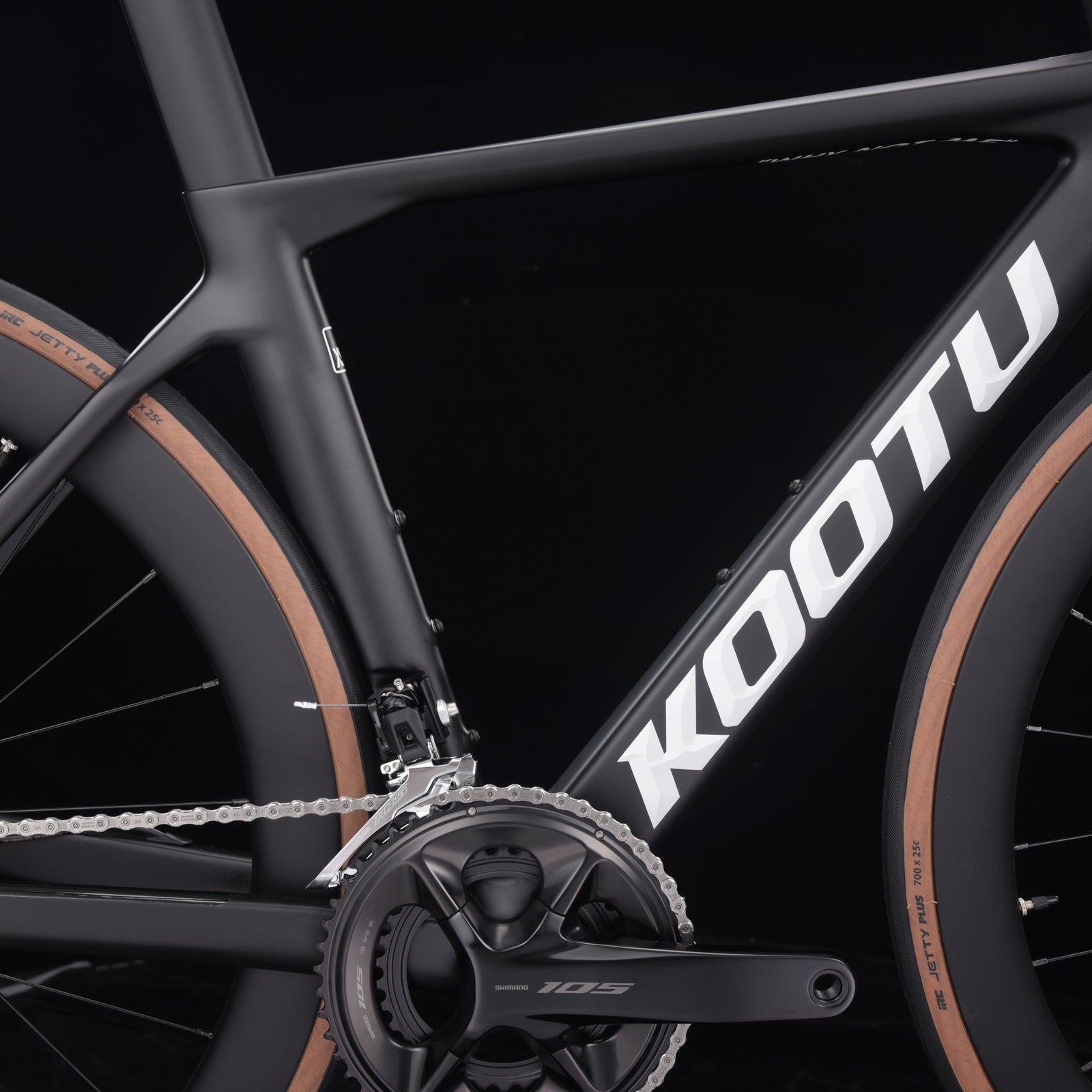

T800 grade carbon fiber frame/seat post

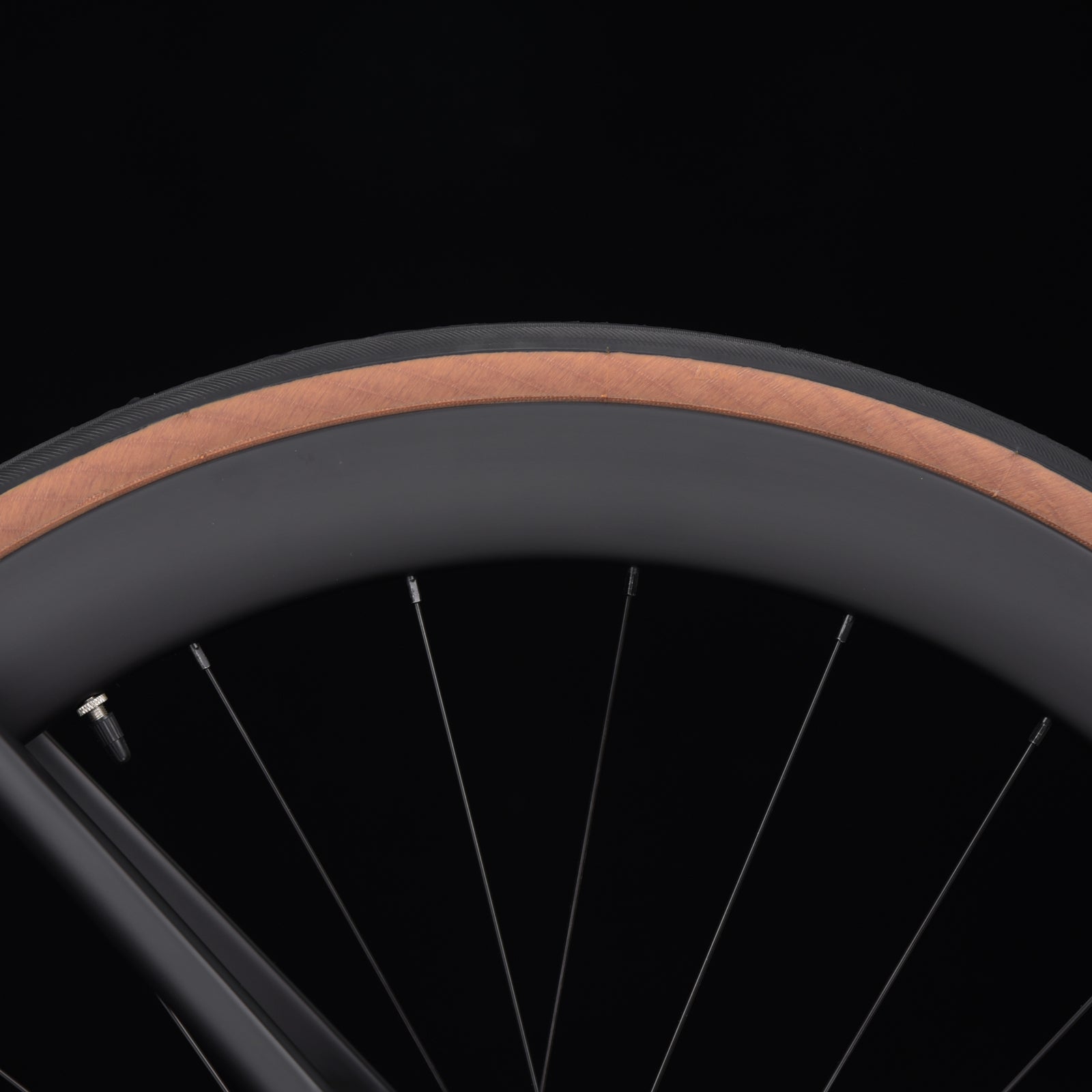

T800 grade carbon fiber wheel set

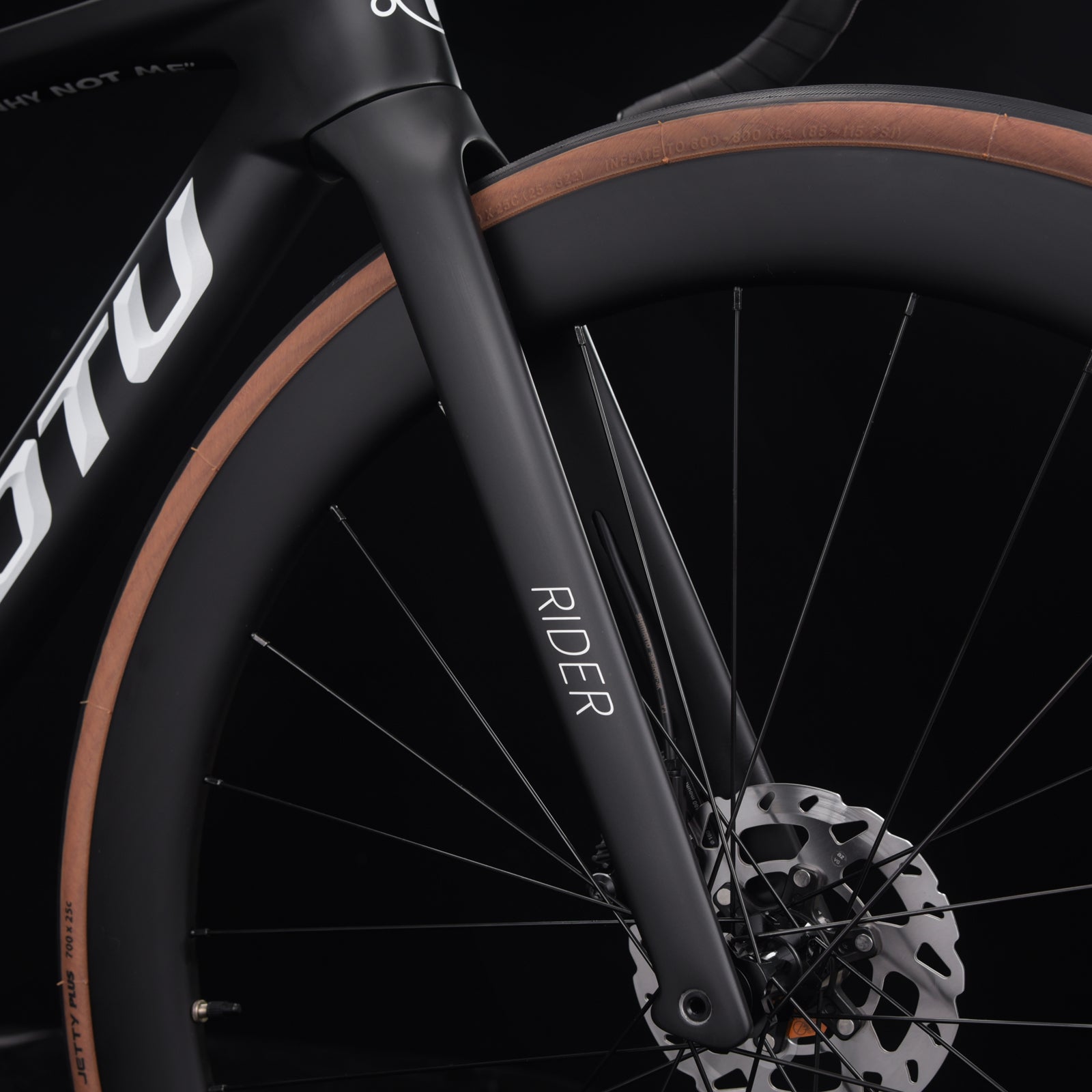

T800 grade carbon fiber front fork

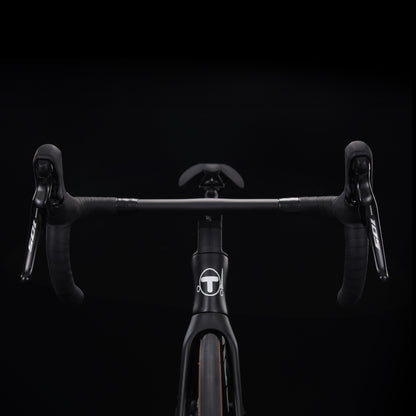

T800 grade carbon fiber handlebar

With Shimano R7120 24 Speed Special Shift Groups

SHIMANO 105 brings new vitality to road cycling with its refreshed control interface and high-quality 12-speed mechanical shifting system. The ergonomic dual-control handle can accommodate a variety of hand sizes, while the drive system's lower than 1:1 gear ratio helps you overcome a variety of climbing conditions

shimano 105 r7120 groupset|rider 7.2 shimano 105 r7120 groupset|rider 7.2

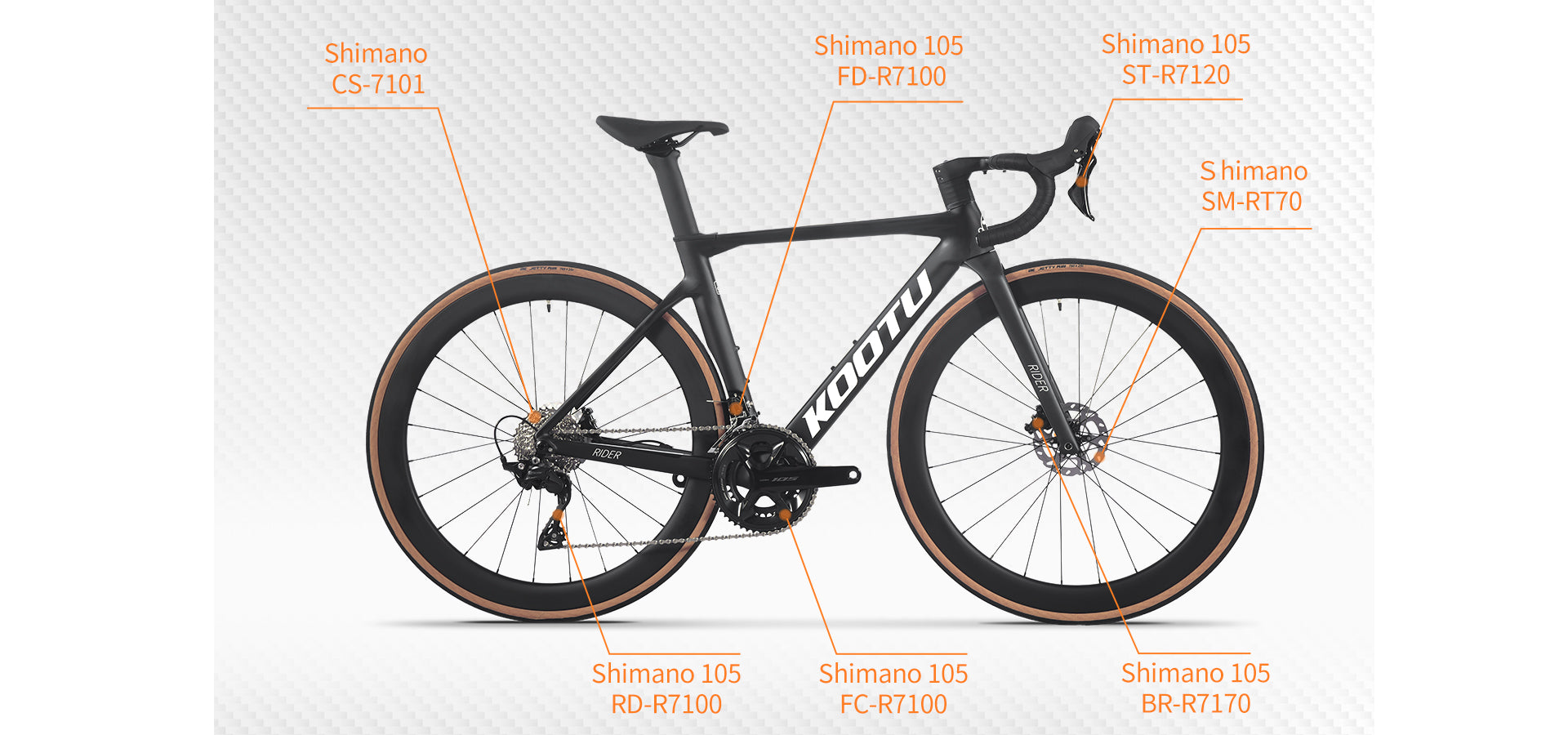

Introduction to the function selling points of the bicycle kit

shimano 105 st-r7120|rider 7.2

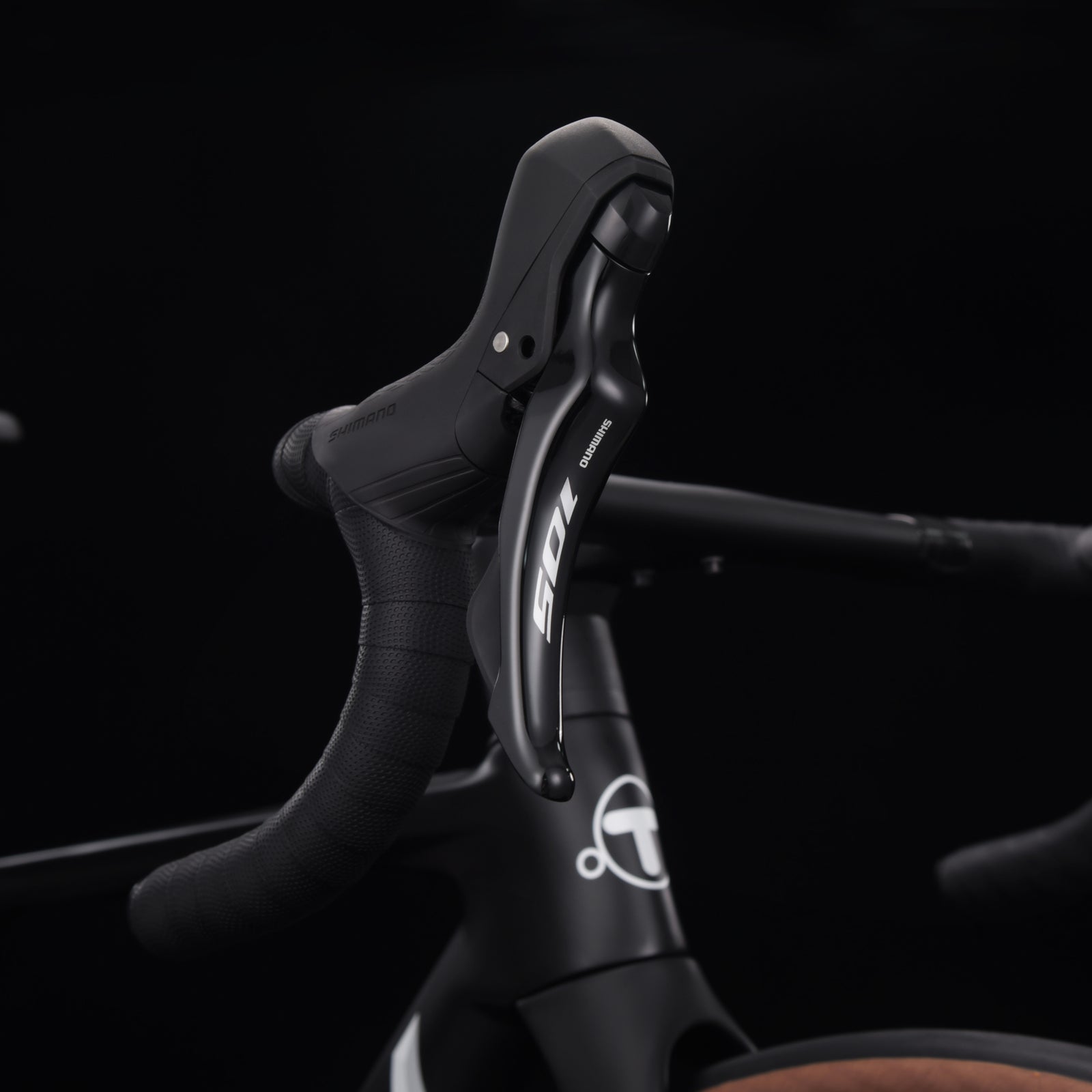

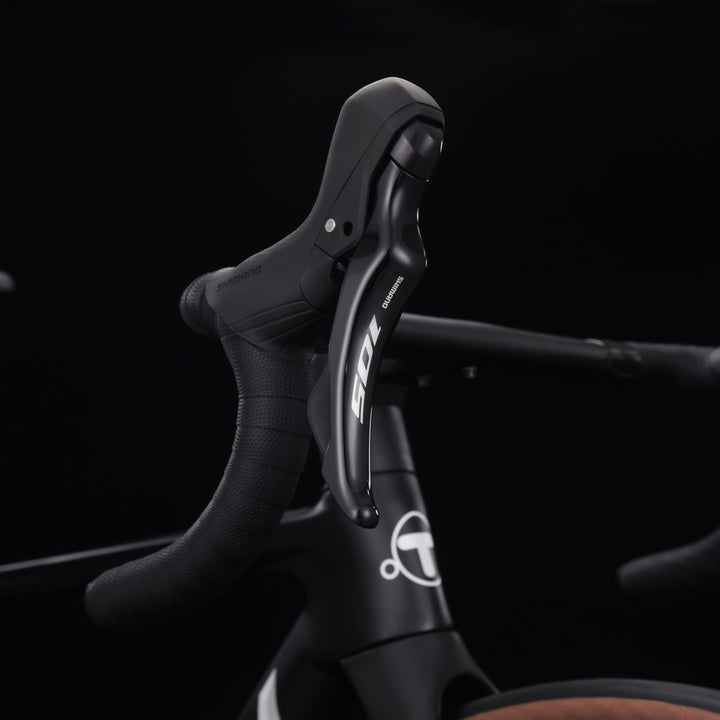

Shimano 105 ST-R7120

Ergonomic design for comfortable and secure grip, regardless of hand shape and size. Better control performance, lightweight shifting for focusing on the road ahead.

SHIMANO 105 FD-R7100|Rider 7.2

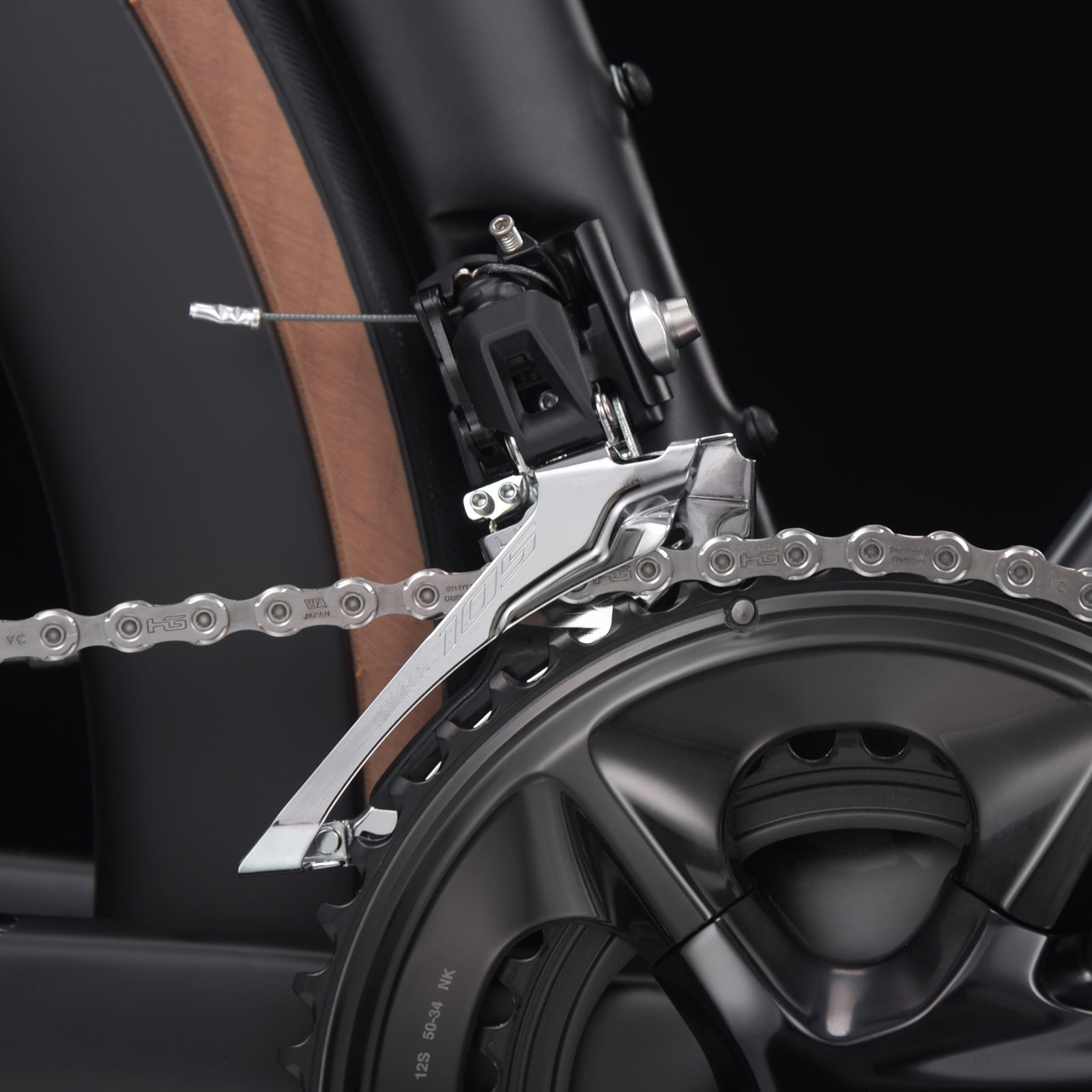

Shimano 105 FD-R7100

The front derailleur provides a lightweight and smooth shifting operation, allowing for a natural and precise shifting process, providing ultimate convenience.

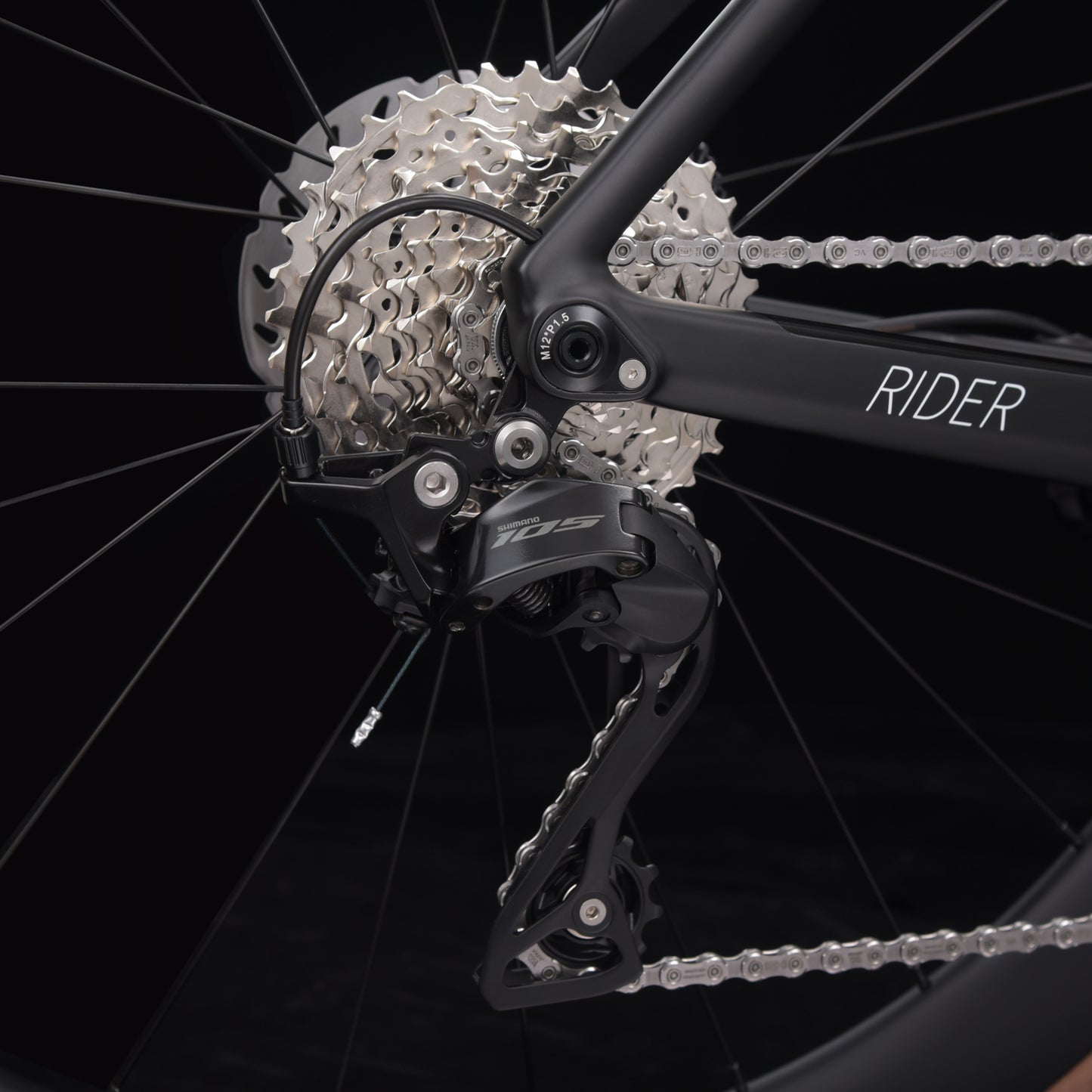

shimano 105 RD-R7100|Rider 7.2

Shimano 105 RD-R7100

The front derailleur provides a lightweight and smooth shifting operation, allowing for a natural and precise shifting process, providing ultimate convenience.

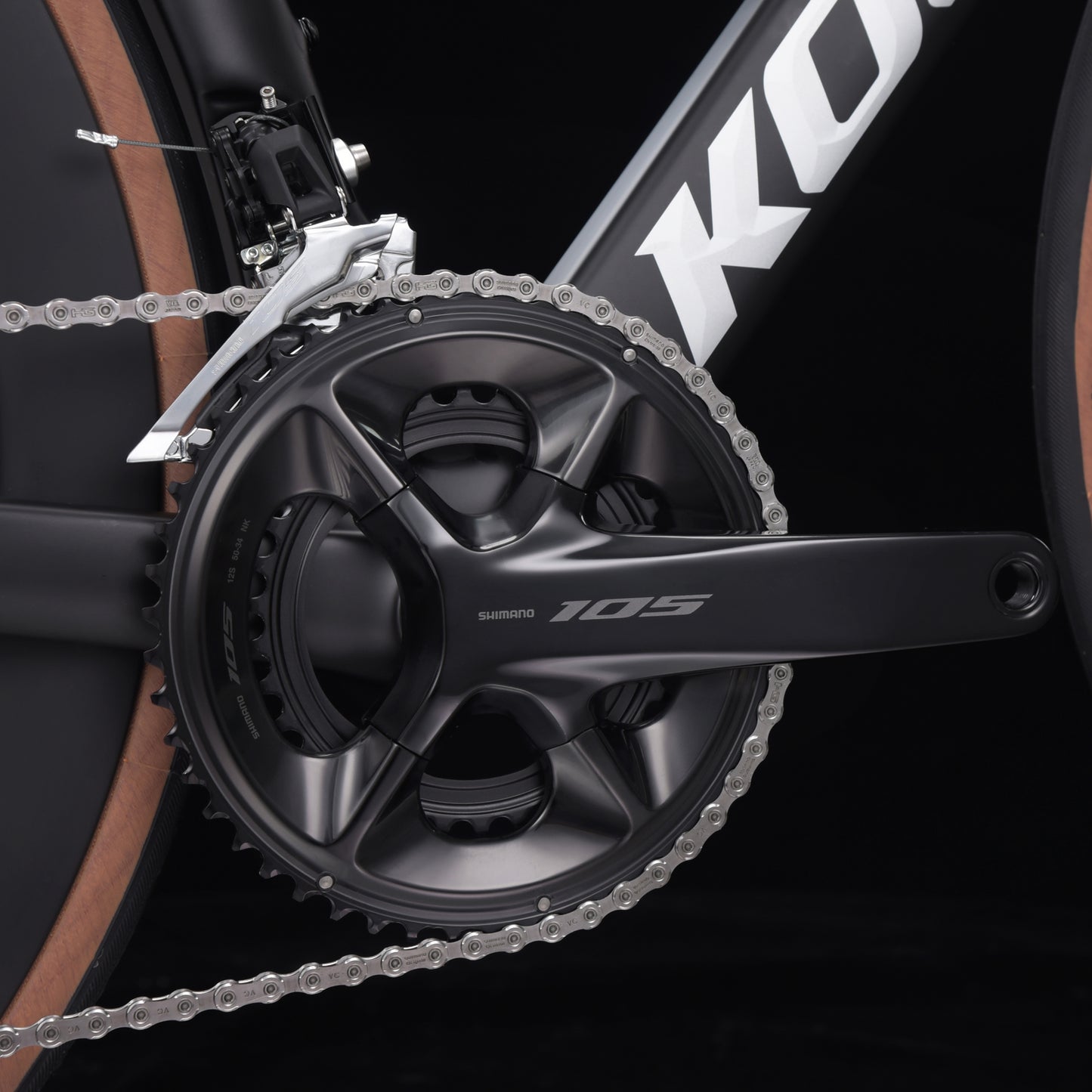

SHIMANO 105 FC-R7100

The transmission system of the derailleur has been carefully designed and manufactured to achieve precise transmission and lightweight design, which can reduce the weight of the entire vehicle and improve cycling efficiency.

shimano CS-7101|Rider 7.2

Special material flywheel

Made of high-strength materials, it has high tensile strength and compressive strength, can withstand large loads and impact forces, and is not easily deformed or damaged.

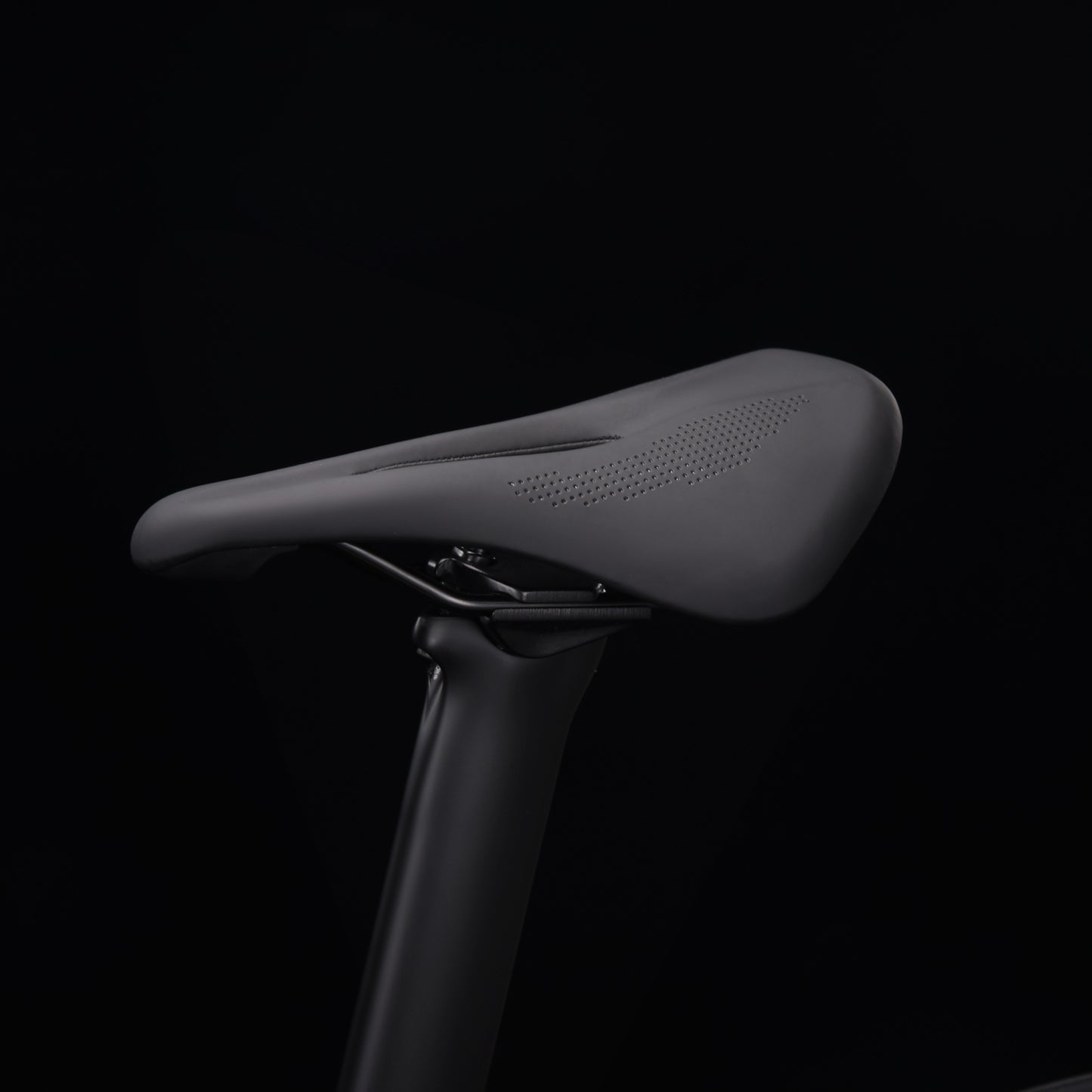

comfortable saddle|rider 7.2

Lightweight saddle

High-resilience hollow ergonomic saddle is a carefully designed seat that provides breathability and comfortable support, enhancing seating comfort and reducing fatigue.

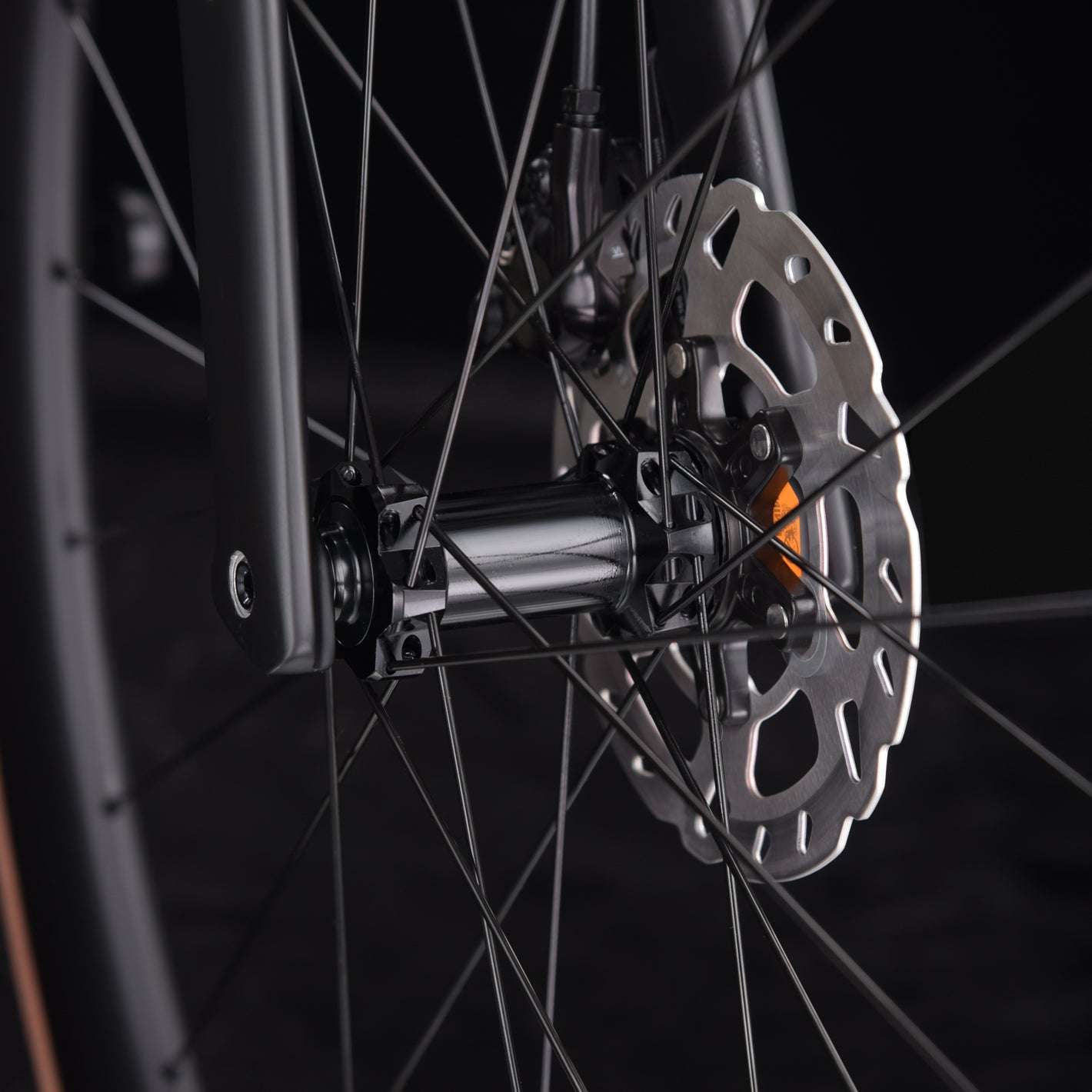

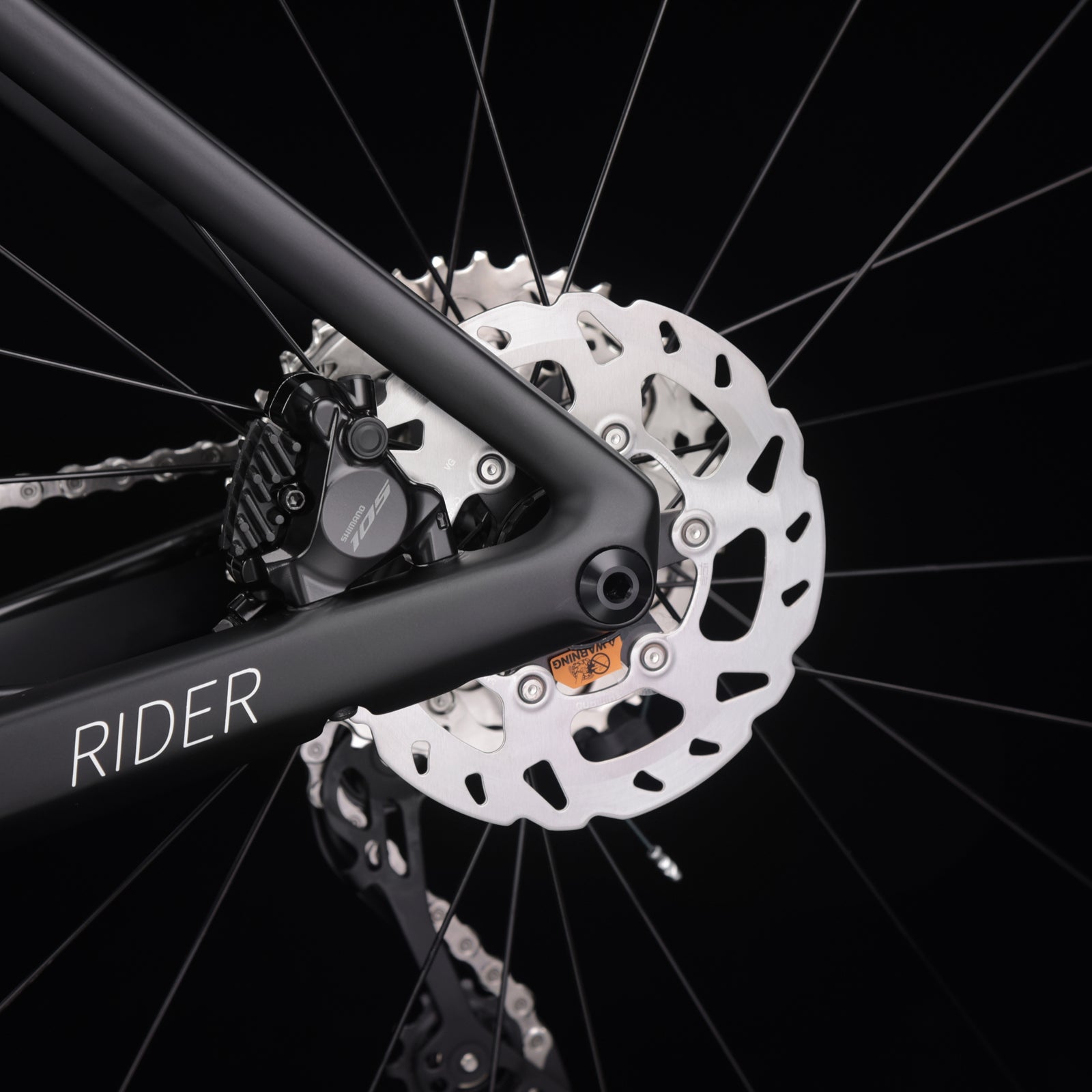

Shimano 105 7170 Hydraulic Disc Brakes

The new piston-designed racing brake system, with the assistance of the new SHIMANO 105 brake system, allows riders to not only experience the fun of familiar braking operations, but also the thrill of breaking through themselves, resulting in continuous improvement during the ride.
