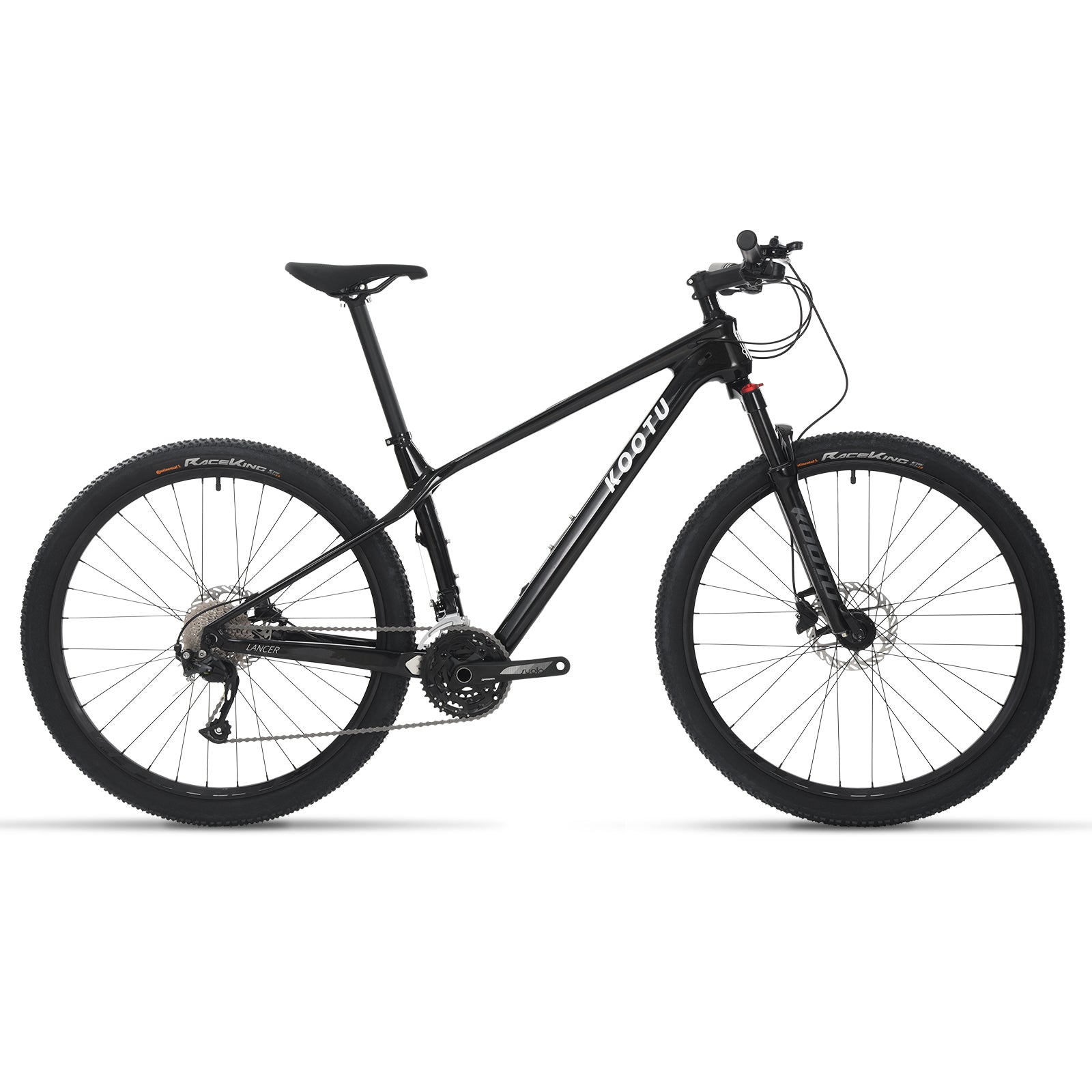

KOOTU Carbon Mountain Bike, Youth/Adult 3 * 9 Speeds Bicycle Complete Hard Tail MTB with Shimano M2000 Kits

Carbon Fiber Parts
T800 carbon frame, handlebar, seatpost,

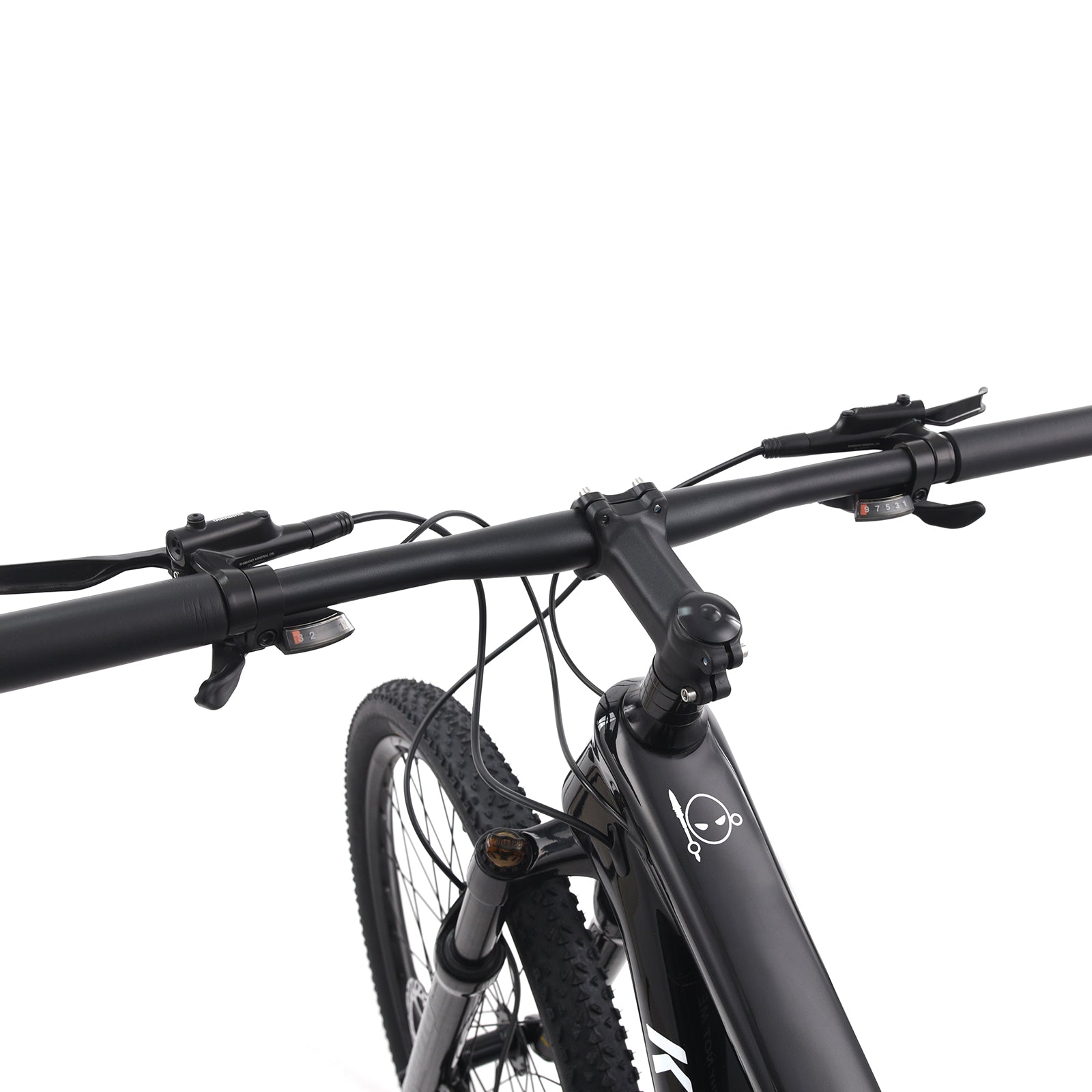

Shimano M2100 Shifters
Featuring a slim main lever for simpler and easier operation, shifting is easy to see at a glance. A quick shift response is possible under constant light operating forces.

Front Derailleur
The high-grade surface finish of the chain guide increases durability, while the constant light operating force ensures less maintenance.

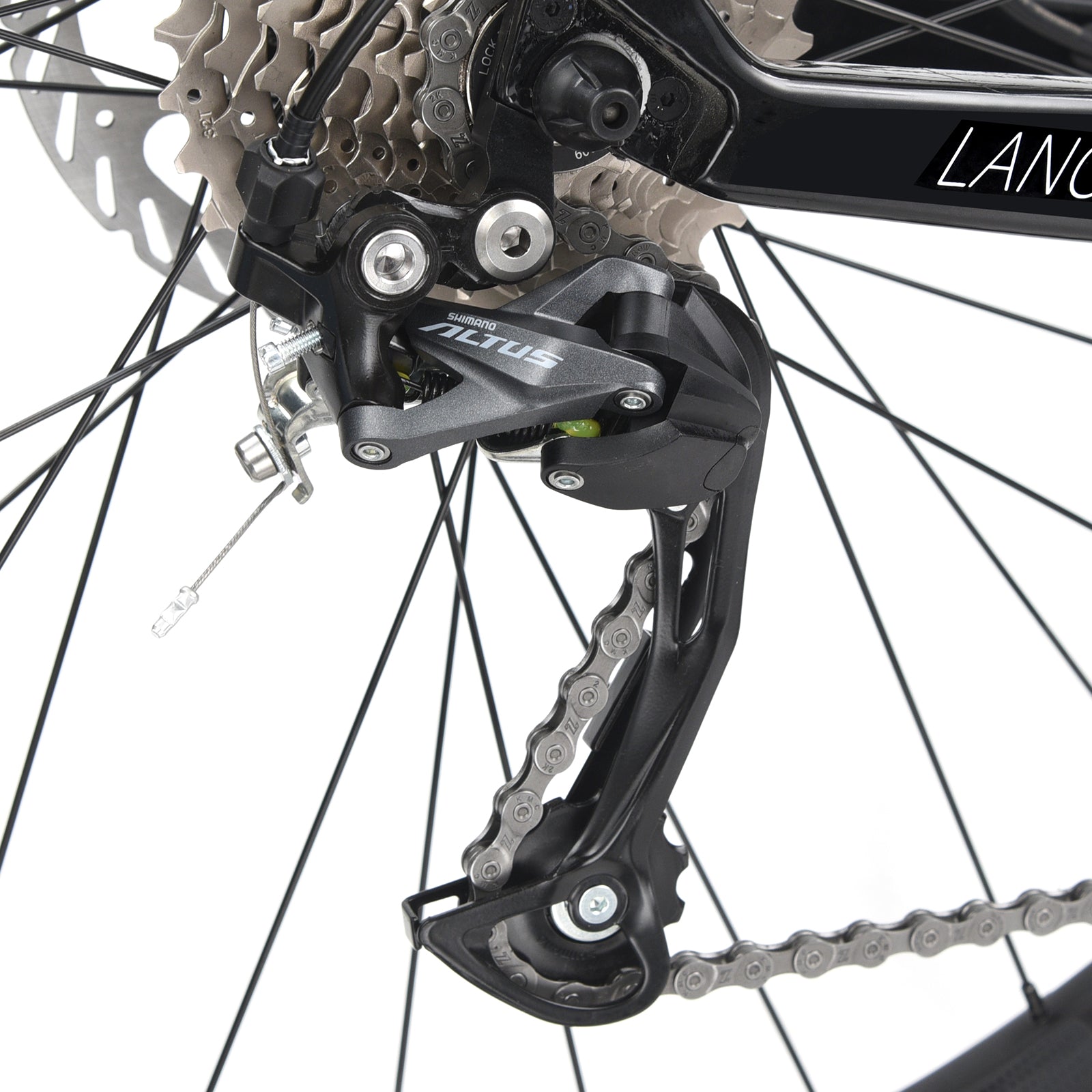

Rear Derailleur
Wider linkage provides durability and precise gear changes. Allows for smooth and effortless gear changes. Wide links for durability and precise shifting.

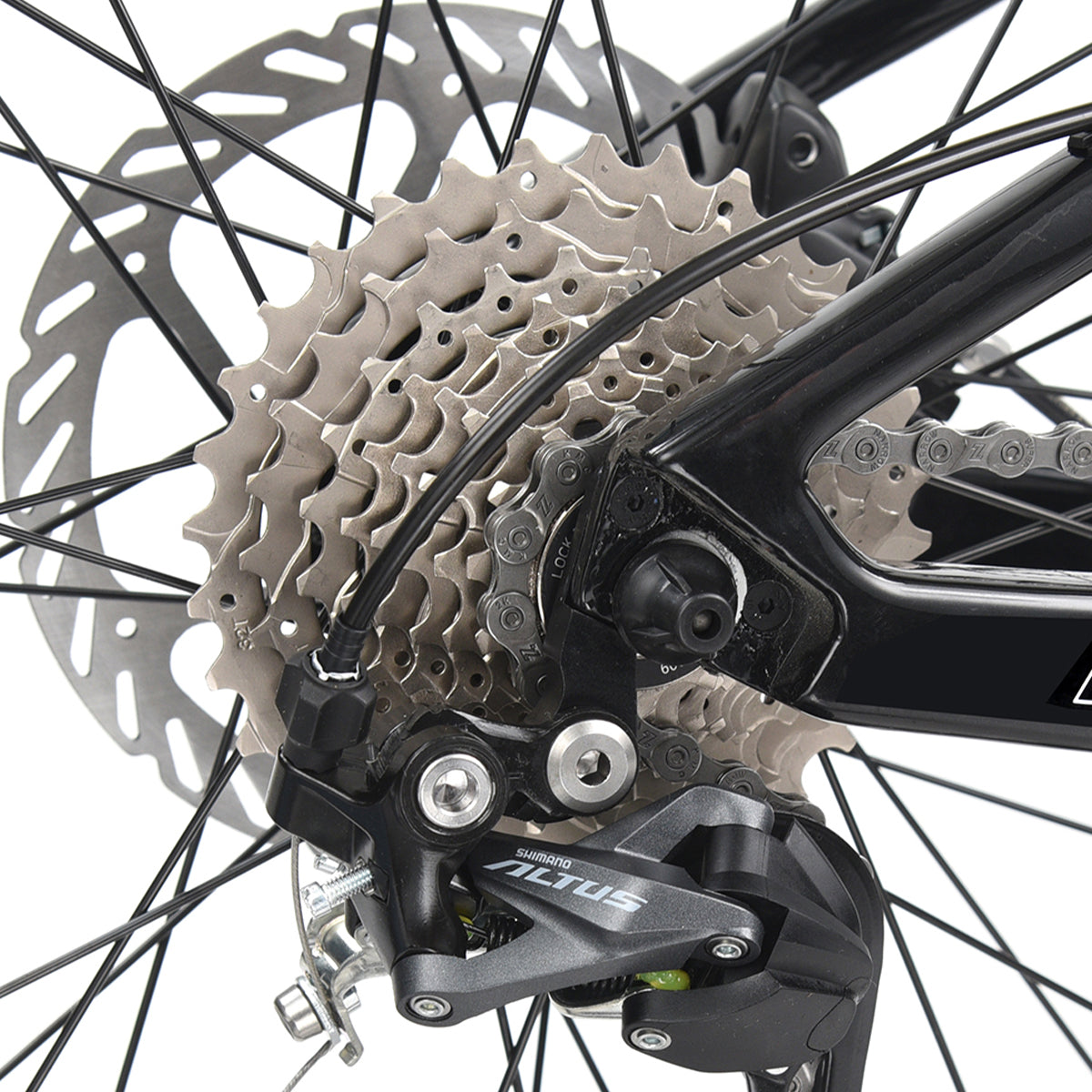

Flywheel CS-M2009 11-32T
High-strength steel plate with nickel-chromium plating is used for stability and wear resistance; the design of multiple mud drainage holes reduces the accumulation of dust on the flywheel and effectively reduces wear.

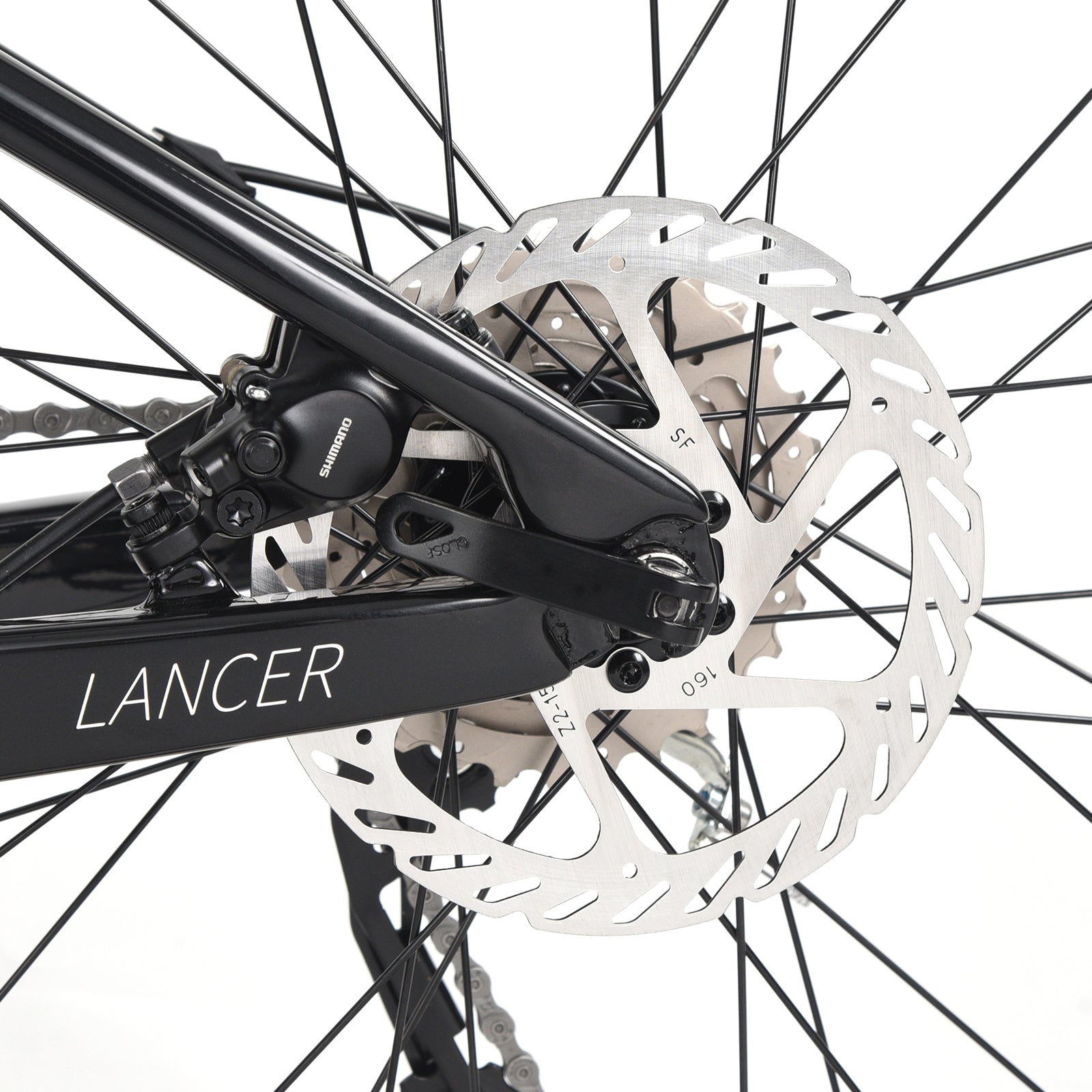

Disc Brake Braking System
This mountain bike equipped disc brake which is of low cost, improved reliability and less weight and size.
Collapsible content
Technical Speicifications
Frame material | T800 carbon fiber |

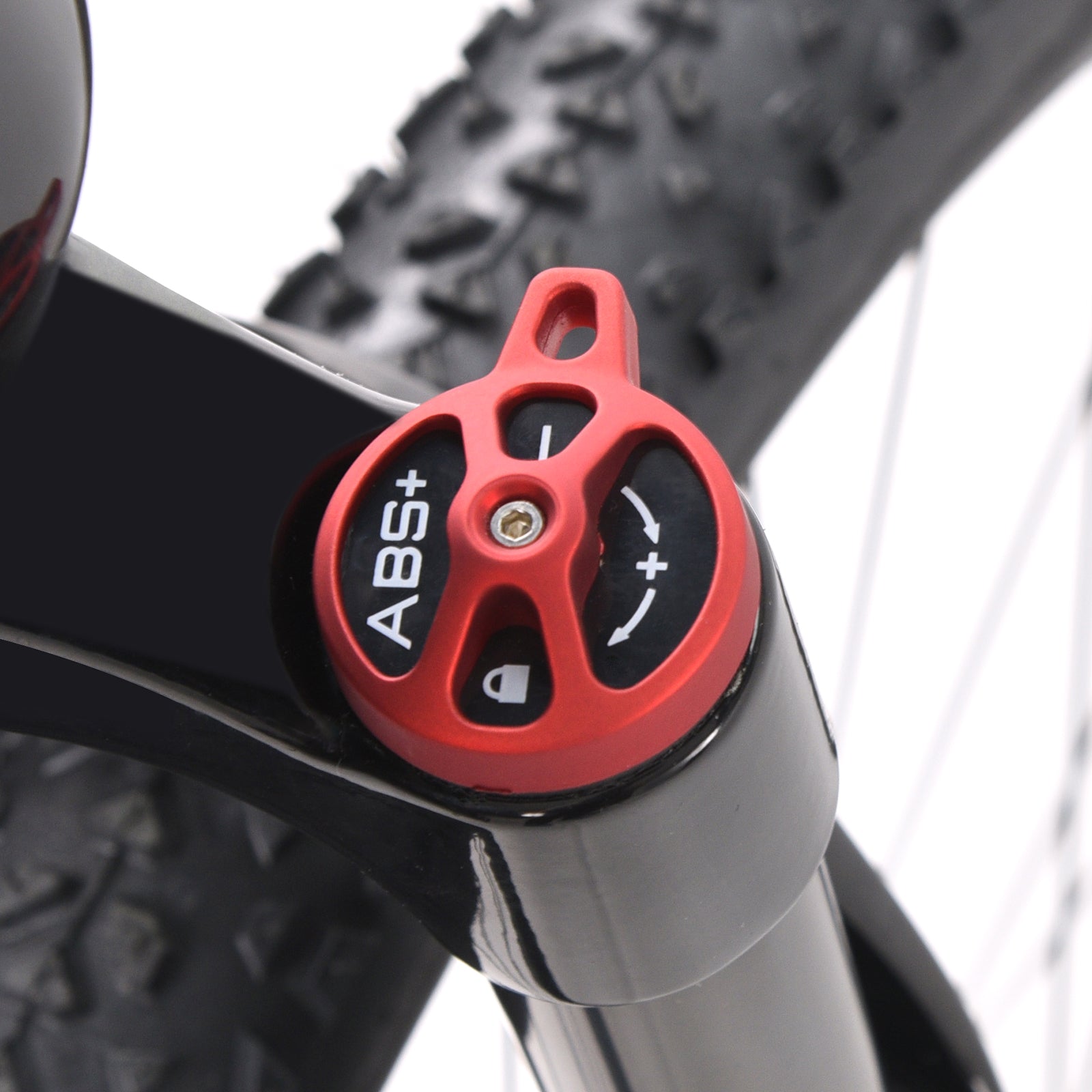

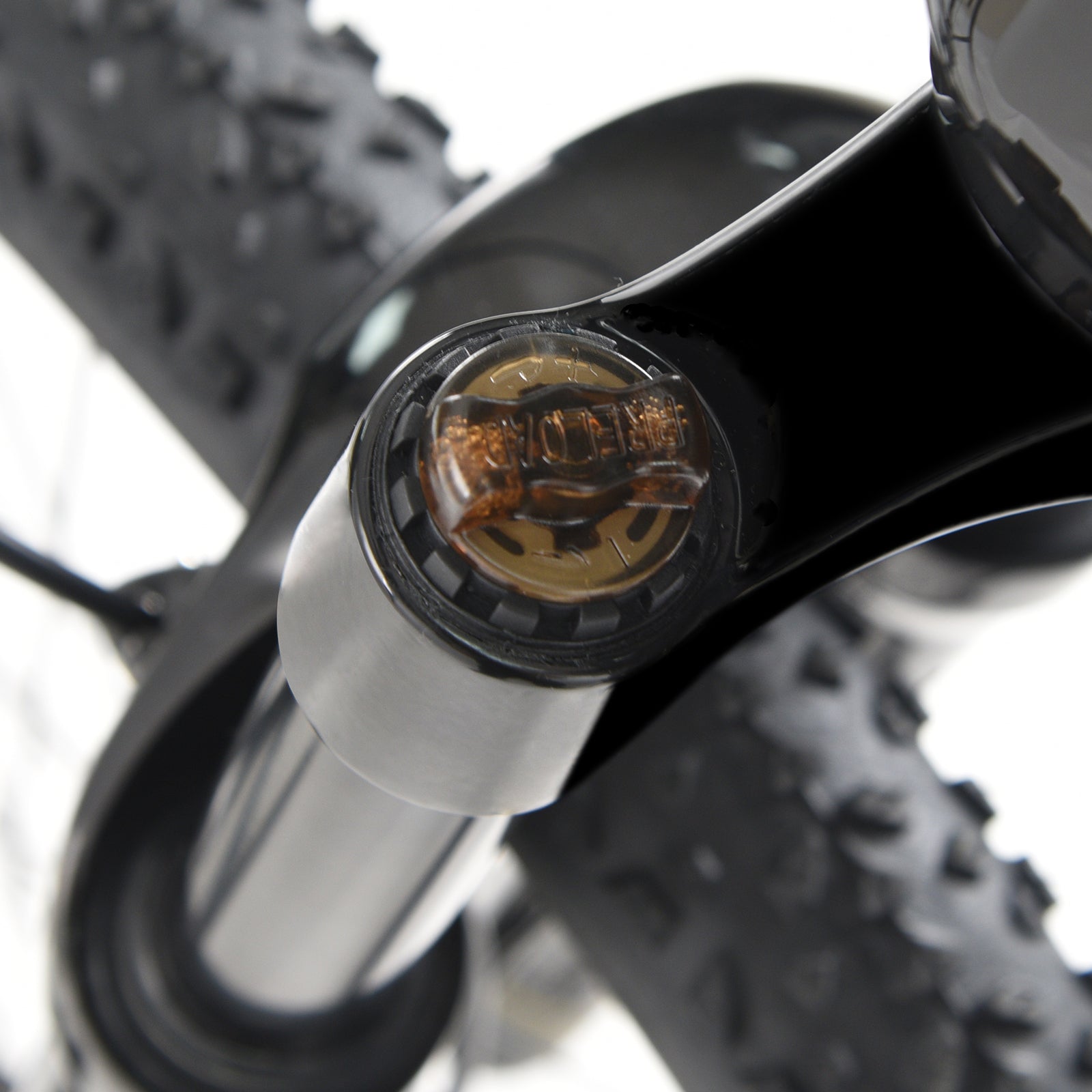

Fork | M9*100 shoulder control hydraulic lock fork |
Handlebar | SM-AL-120 straight bar, aluminum, φ22.2*31.8*680mm 9°*H10 |
Riser | SM-A100-8 aluminum alloy, 31.8*28.6*90, negative 7 degrees |
Rims | 27.5*32H*14G |
Front hub | DH-901YF 2 Palin with quick release 14G*32H M9*100*108MM 115MM |
Rear hub | DH-901YR 2 bearings with quick release 14G*32H M10*135*145 151MM |
Tires | Continental 27.5x2.0 60TPI |
Seatpost | SM-7200 Aluminum Alloy 31.6*350 |

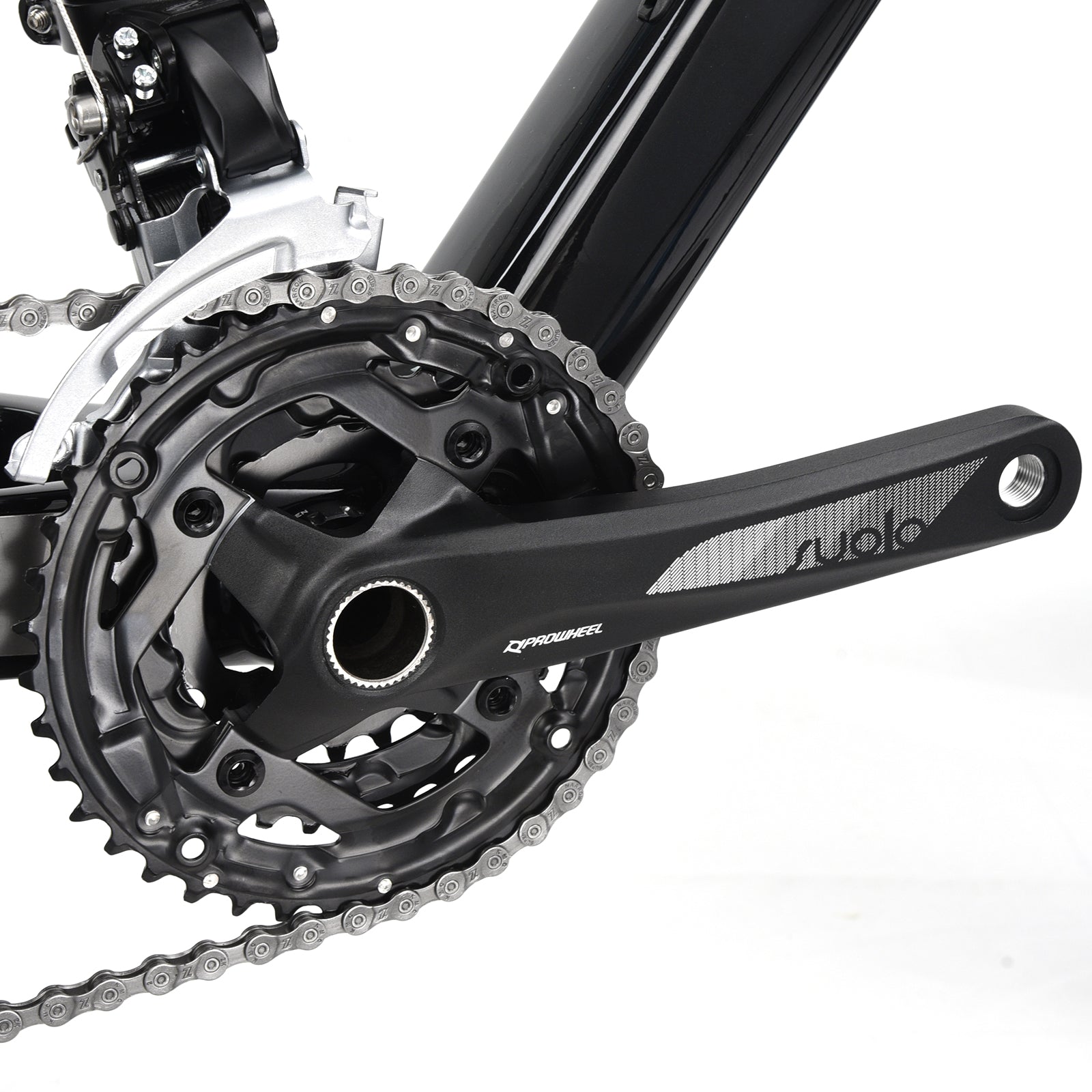

Crankset | SUOLO-901-TT 22/30/40T*170mm, tooth BED, 9S, BB73 |
Left shift lever | SHIMANO ALTUS SL-M2010-L, 3-SPEED 1800MM |
Right shift lever | SHIMANO ALTUS SL-M2010-9R, 9-SPEED 2050MM |
Front Derailleur | SHIMANO ALTUS FD-M2000, 3X9, DOWN-SWING, DUAL-PULL, 34.9MM |
Rear derailleur | SHIMANO ALTUS RD-M2000, ALTUS, SGS 9-SPEED |
Flywheel | CS-M2009 11-32T 9-speed mountain cassette silver 11-32T |
Front Brake | SHIMANOAMT200JLFPRX075 ALTUS BL-MT200(L), BR-MT200(F), W/O ADAPTER,750MM |
Rear Brake | SHIMANOAMT200JRRXRX145 ALTUS BL-MT200(R), BR-MT200(R), W/O ADAPTER,1450MM |
Saddle | YBT K270F003 |
Pedals | Sanyun, aluminum black, 9/16 |
Size & Geometry


"WHY NOT ME"
Starting from the needs of riders, we are committed to providing riders with "professional carbon bikes with cost performance".
